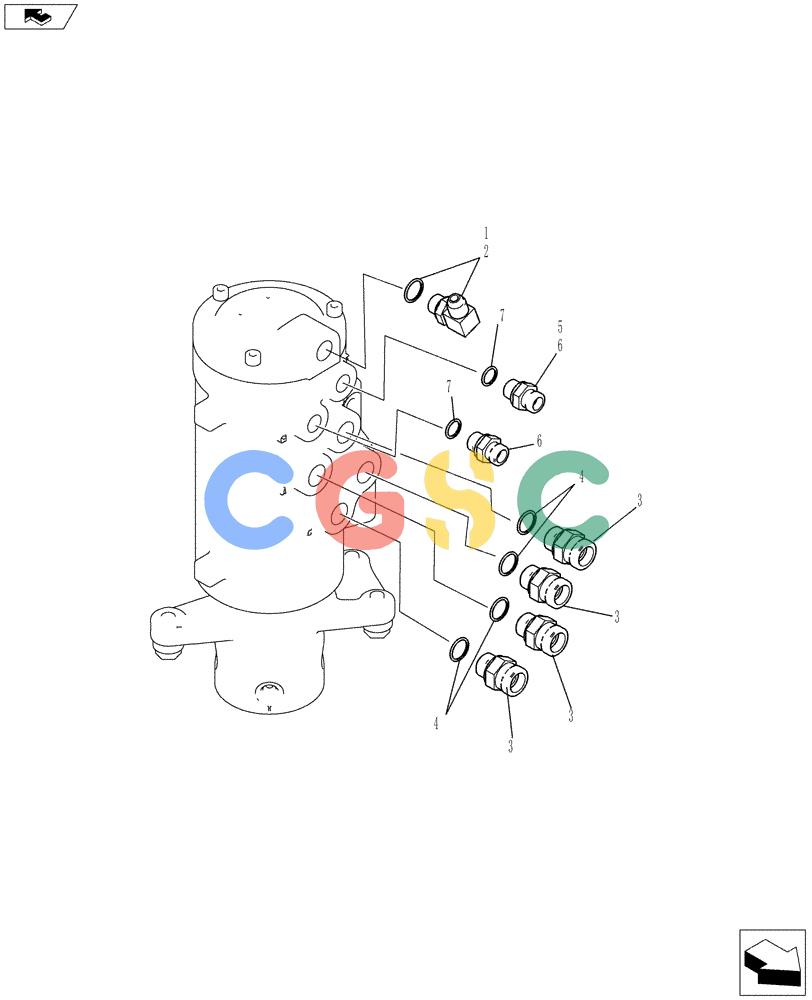

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-024[00]) - HYDRAULIC LINES, SWIVEL (DOZER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
707 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT19H00024F1 | [1] | Swivel (Dozer) | |
| 1. | YT19H00022F1 | [1] | PIPE | KOBHyd. Lines, Swivel |
| 2. | ZH32X06000 | [1] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90 |
| 3. | ZA28F18008 | [4] | HYD CONNECTOR | KOB |
| 4. | ZD12P01800 | [4] | O-RING | KOB |
| 5. | YT19H00031F1 | [1] | PIPE | KOBHyd. Lines, Swivel |
| 6. | ZA28F12006 | [2] | HYD CONNECTOR | KOB |
| 7. | ZD12P01400 | [2] | O-RING | KOB |
