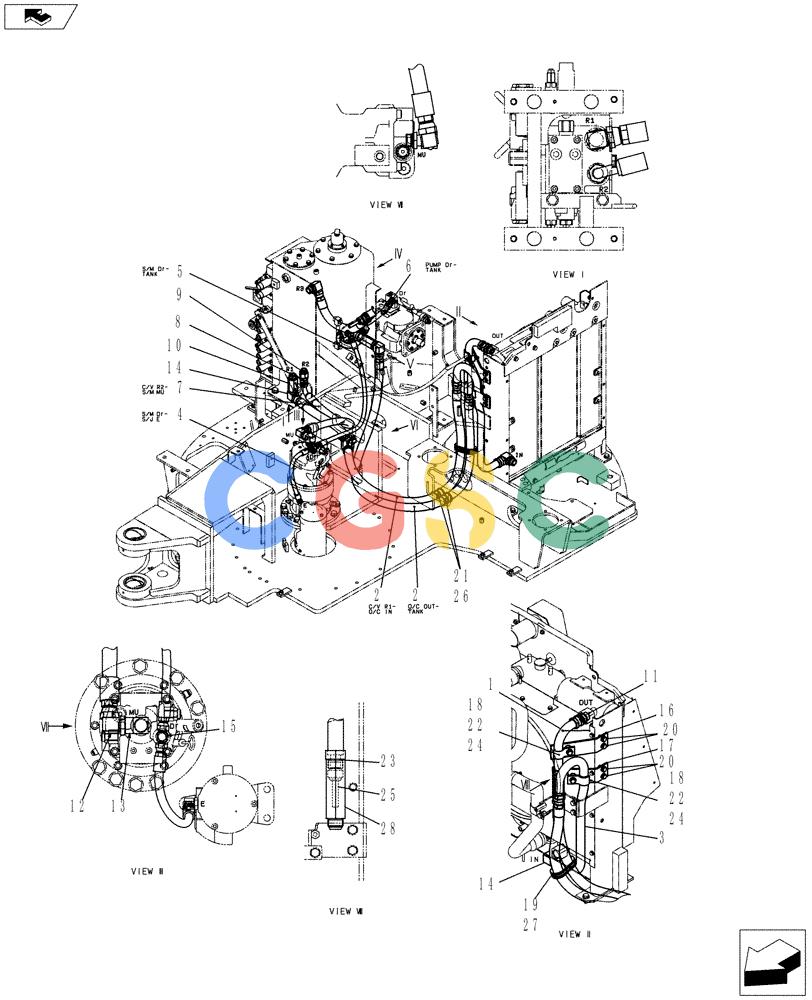

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-025[01]) - HYDRAULIC LINES, RETURN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
967 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF32H00003F1 | [1] | Return | |
| 1. | YT32H01103P1 | [1] | TUBE | KOB |
| 2. | YT32H01102D3 | [2] | FLEXIBLE HOSE | KOB |
| 3. | YT32H01105P1 | [1] | TUBE | KOB |
| 4. | ZX22M06038 | [1] | HOSE ASSY. | KOB Superseded by part number: ZX22M06040 |
| 5. | ZX22M06082 | [1] | HOSE ASSY. | KOB Superseded by part number: |
| 6. | ZX22M08062 | [1] | RECEIVER-DRIER | KOBHose |
| 7. | ZX32M12105 | [1] | FLEXIBLE HOSE | KOB |
| 8. | ZH22X12000 | [1] | HYD CONNECTOR | KOB |
| 9. | HH25R12012G3 | [1] | HYD CONNECTOR | KOB |
| 10. | 2444Z4184 | [1] | HYD CONNECTOR | KOB |
| 11. | 2444Z2760 | [1] | HYD CONNECTOR | KOB |
| 12. | ZH32X12000 | [1] | 90 ELBOW,Male, 30° Fl, PF 3/4" x PF 3/4", O-Ring | KOB90 |
| 13. | 2444Z3405 | [1] | ELBOW | KOB |
| 14. | HH35X16016G1 | [4] | 90 ELBOW | KOB |
| 15. | ZH52X06000 | [1] | TEE,30° Fl, Male, PF 3/8" x 3/8" x 3/8", O-Ring | KOB |
| 16. | YT32H01099P1 | [1] | BRACKET, SUPPORTING | KOB |
| 17. | YT32H01100P1 | [1] | BRACKET, SUPPORTING | KOB |
| 18. | YT32H01098P1 | [2] | CLAMP | KOB |
| 19. | YF30H01023P1 | [1] | GROMMET | KOB |
| 20. | ZM73C10025 | [4] | BOLT,M10x25mm - Course Thread | KOBSems |
| 21. | YX32H01011P1 | [2] | BUSHING,33mm ID x 49mm OD x 50mm L | KOB |
| 22. | ZS18C10050 | [2] | SCREW,Hex, M10 x 50mm | KOBCap |
| 23. | ZD12P02900 | [1] | O-RING | KOB |
| 24. | ZW16H10000 | [2] | WASHER | KOB |
| 25. | 2436R576F1 | [1] | SOLENOID VALVE | KOBCheck |
| 26. | PY01P01043D3 | [2] | CABLE TIE,188mm L | KOB |
| 27. | PY01P01043D8 | [2] | CABLE TIE,102mm L | KOB |
| 28. | YT32H01101P1 | [1] | HYD CONNECTOR | KOB |
