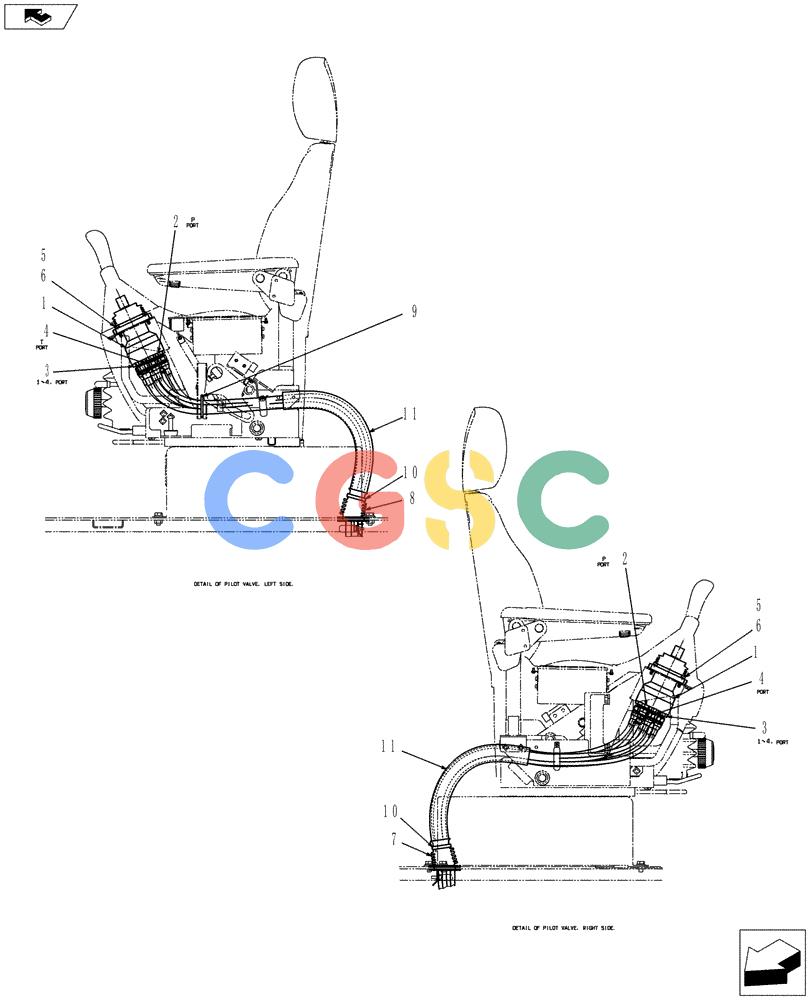

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-035[02]) - CONTROL LINES, REMOTE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
473 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN30V00111F1 | [2] | HYDRAULIC VALVE | SMPilot |
| 2. | HH25X04004G2 | [2] | HYD CONNECTOR | KOB |
| 3. | ZH22X04006 | [8] | HYD CONNECTOR | KOB |
| 4. | ZH22X06000 | [2] | HYD CONNECTOR | KOB |
| 5. | ZS28C06025 | [8] | SCREW,Hex Socket Head, M6 x 25mm | KOBCap |
| 6. | ZW16P06000 | [8] | WASHER | KOB |
| 7. | PH03M01250P1 | [1] | BOOT | KOB |
| 8. | YY03M01046P1 | [1] | BOOT | KOB |
| 9. | PY01P01043D4 | [1] | CABLE TIE,4.80mm W x 251mm L | KOB |
| 10. | PY01P01043D8 | [3] | CABLE TIE,102mm L | KOB |
| 11. | YN68H01106P1 | [2] | COVER | KOB |
