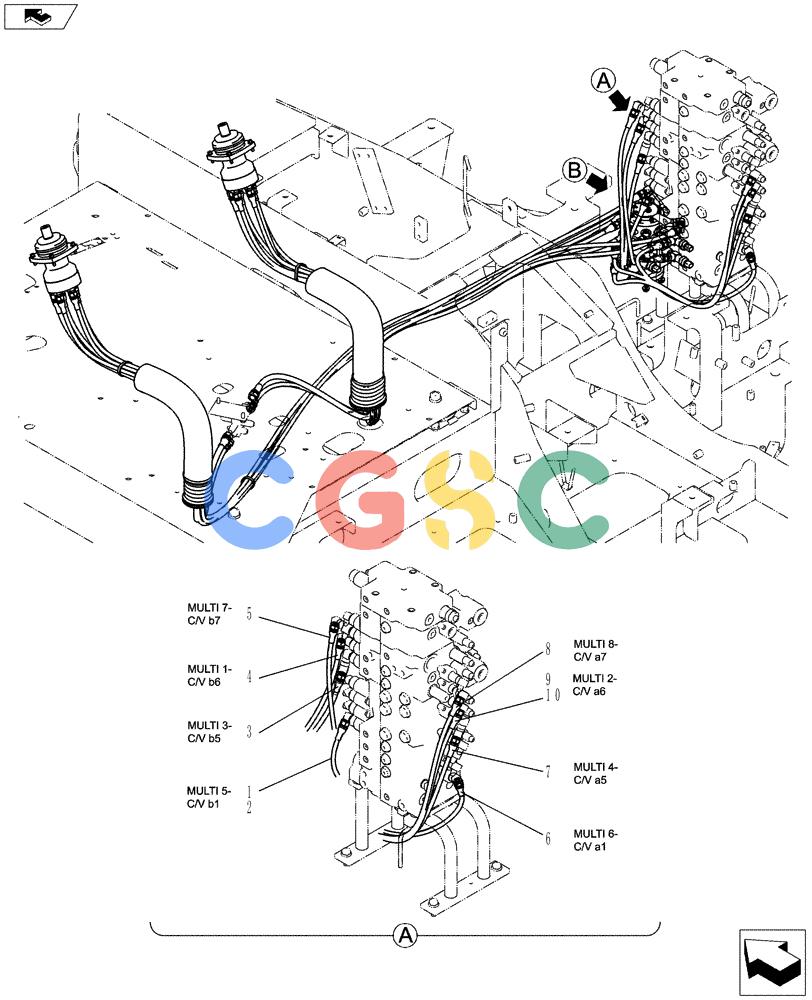

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-039[01]) - CONTROL LINES, MULTI New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
698 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT64H00113F1 | [1] | Multi | |
| 1. | YT64H00071F1 | [1] | Multi | |
| 2. | 2420R349D034 | [1] | HOSE | KOB Superseded by part number: 2420R349D035 |
| 3. | 2420R349D046 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D050 |
| 4. | 2420R349D052 | [1] | FLEXIBLE HOSE | SM Superseded by part number: 2420R349D055 |
| 5. | 2420R349D060 | [1] | HOSE,6.35mm ID x 700mm L | KOB |
| 6. | 2420R349D072 | [1] | FLEXIBLE HOSE | SMAssy. Superseded by part number: 24820R63D072 |
| 7. | 2420R349D082 | [1] | HYDRAULIC HOSE,6.35 mm ID x 820.00 mm | KOB Superseded by part number: 2420R349D085 |
| 8. | 2420R349D090 | [1] | HOSE,6.35mm ID x 900mm L | KOB |
| 9. | YT64H00096F1 | [1] | Multi | |
| 10. | 2420R349D094 | [1] | HOSE | KOB |
