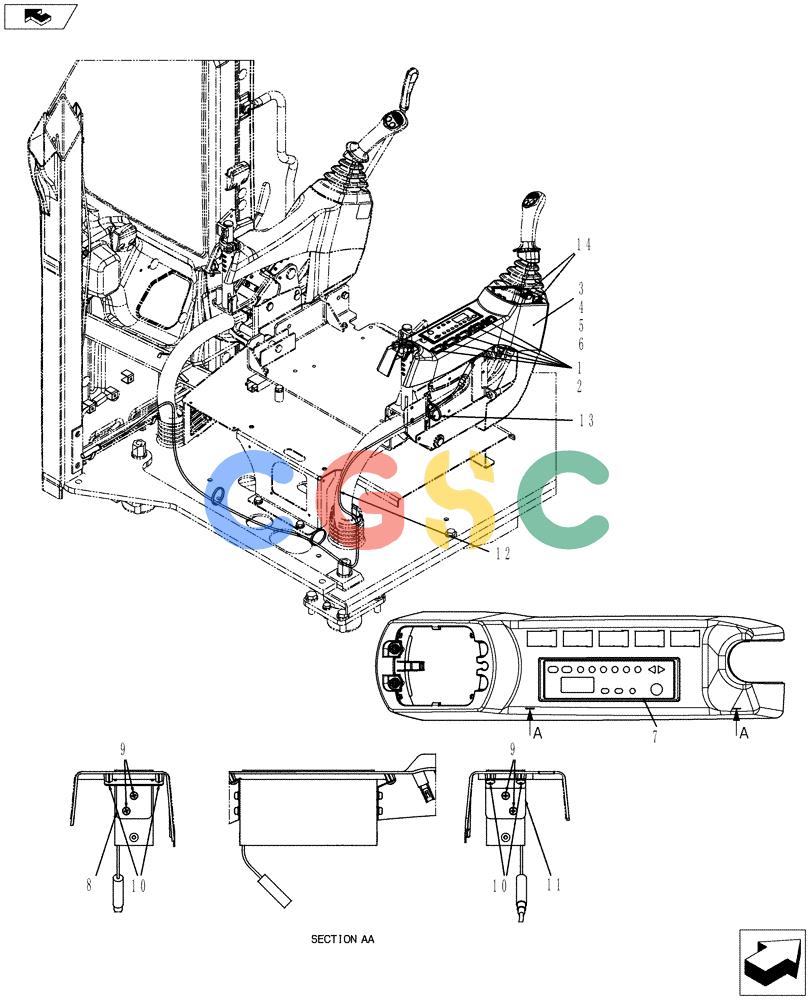

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-051[04]) - CONTROLS, OPERATORS (DOZER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
345 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN50E00060F1 | [1] | SWITCH ASSY | KOBInstal |
| 2. | YN17M01282P1 | [5] | CAP | KOB |
| 3. | YT54E00008F1 | [1] | | |
| 4. | YN03M02108F1 | [1] | COVER | SMAssy. Superseded by part number: YN03M02108F3 |
| 5. | YN03M02158P1 | [1] | COVER ASSY | KOB |
| 6. | YN17M01508P1 | [2] | BUSHING | KOB |
| 7. | YN54S00045P2 | [1] | RADIO | KOB |
| 8. | YN54E01028P1 | [1] | BRACKET | KOB |
| 9. | 2420R1089D1 | [4] | BOLT,M5 x 10mm | KOB |
| 10. | YN17M01468P1 | [4] | SELF-TAP SCREW | KOBTapping |
| 11. | YN54E01029P1 | [1] | BRACKET | KOB |
| 12. | YN17M01072P1 | [1] | CABLE | KOB |
| 13. | PY01P01043D3 | [3] | CABLE TIE,188mm L | KOB |
| 14. | ZM66C06016 | [2] | BOLT | KOBSems |
