神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (06-003) - ROLLER ASSY ( LOW) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
262 次

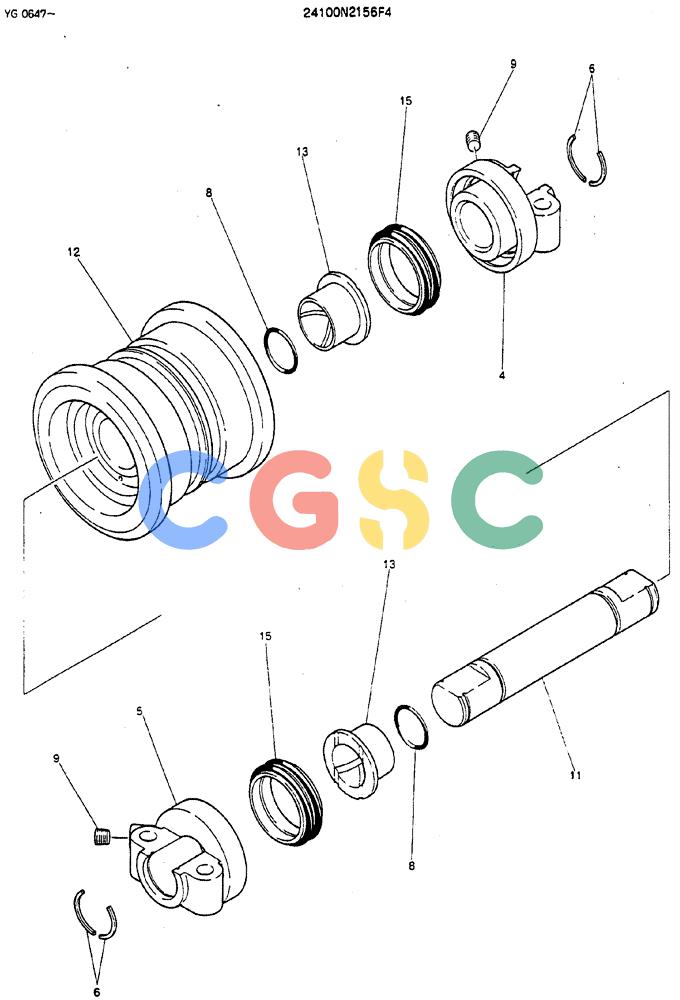

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2156F4 | [1] | TRACK ROLLER | KOB |
| 4. | 2418N1747D1 | [1] | COLLAR | COLLAR |
| 5. | 2418N1747D2 | [1] | COLLAR | KOB |
| 6. | 2418T5614 | [4] | RING | KOB |
| 8. | ZD11G05500 | [2] | O-RING,54.40mm ID x 60.60mm OD x 3.10mm | KOBID 54.40 ± 0.49 x OD 60mm |
| 9. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 11. | 2419N64 | [1] | SHAFT | KOB |
| 12. | 2413N378 | [1] | ROLLER | ROLLER |
| 13. | 2405T1036 | [2] | BUSHING | KOB |
| 15. | 2445Z1109 | [2] | SEAL,90mm ID x 114.45mm OD x 33mm Thk | KOB Superseded by part number: 2445R441F1 |
