神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (06-004) - ROLLER ASSY ( UPP) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
797 次

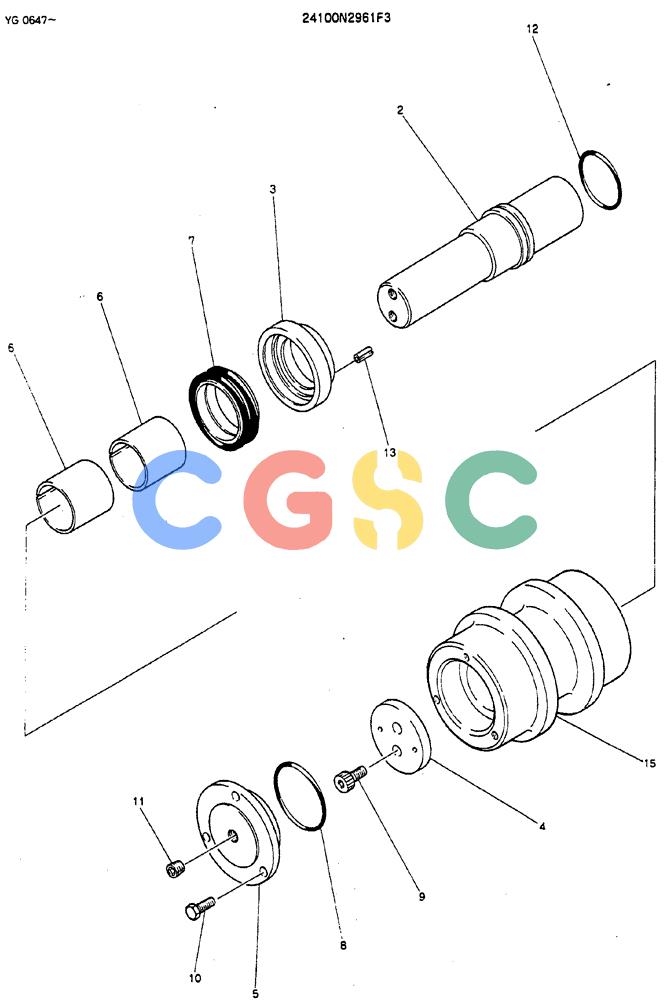

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2961F3 | [1] | TRACK ROLLER | KOB |
| 2. | 2419P1635 | [1] | SHAFT | KOB |
| 3. | 2418P6328 | [1] | COLLAR | COLLAR |
| 4. | 2418T7674 | [1] | PLATE | PLATE |
| 5. | 2414P2176 | [1] | COVER | KOB |
| 6. | 2405T852 | [2] | BUSHING,45mm ID x 50mm OD x 50mm L | KOBID 45 x OD 50 x 50mm Long |
| 7. | R45P0018D4 | [1] | FLOAT | KOB Superseded by part number: 2445R362F1 |
| 8. | ZD11G07000 | [1] | O-RING,69.40mm ID x 75.60mm OD x 3.10mm | KOBID 69.40 ± 0.61 x OD 75mm |
| 9. | ZS23C10020 | [2] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| 10. | ZS13C08020 | [3] | SCREW | KOBM08x1.25x20mm Superseded by part number: ZS18C08020 |
| 11. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 12. | ZD11G05000 | [1] | O-RING,3.1mm Thk x 49.4mm ID, 70 Duro | KOBO-Ring -- ID 49.40 ± 0.45 x OD 55mm |
| 13. | ZP26D07018 | [1] | ROLL PIN | KOB |
| 15. | 2413N409 | [1] | ROLLER | KOB |
