神钢零件查询(MD180LC) - EXCAVATOR ASN YG0647 (1/80-12/06) (06-005) - SPRING ASSY, TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
450 次

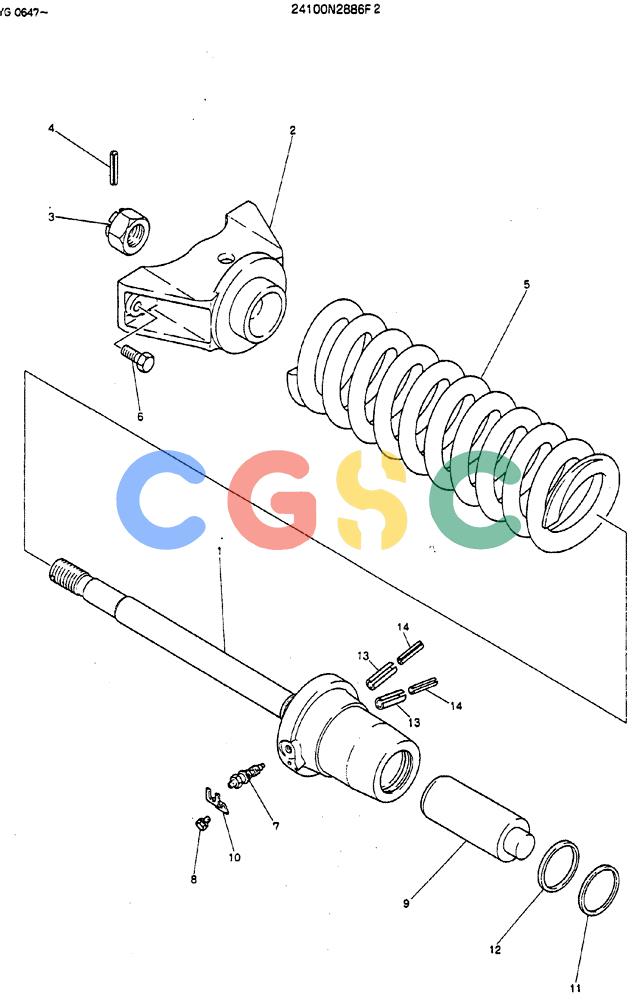

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2886F2 | [1] | SPRING ASSY, TRACK | SPRING ASSY, TRACK |
| 1. | 2438N244 | [1] | CYLINDER | KOB |
| 2. | 2416N2174D3 | [1] | BRACKET | |
| 3. | 2420T4445 | [1] | NUT | KOB |
| 4. | ZP26D08056 | [1] | ROLL PIN | KOB |
| 5. | 2417P257 | [1] | SPRING | KOB |
| 6. | ZS13C16045 | [2] | SCREW | KOBScrew -- M16x2.0x45mm |
| 7. | 2444R663 | [1] | FITTING | KOBNIPPLE |
| 8. | ZM11C08016 | [1] | BOLT | KOBM08x1.25x16mm (Incls. Lockwasher) |
| 9. | 2439T230 | [1] | PISTON | KOB |
| 10. | 2418T12111 | [1] | PLATE | KOB |
| 11. | 2445Z1080D3 | [1] | DUST CAP | KOB |
| 12. | 2418U130D35 | [1] | PACKING | KOB |
| 13. | ZP26D13050 | [2] | ROLL PIN | KOB |
| 14. | ZP26D08050 | [2] | PIN | KOB |
