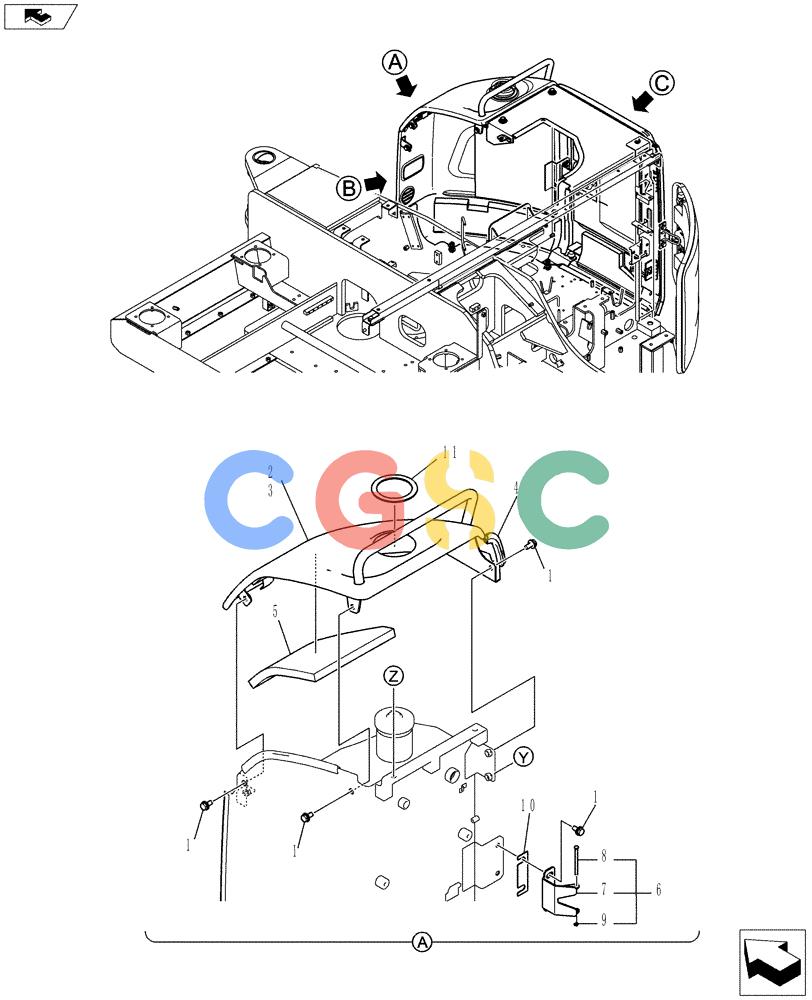

纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-069[03]) - GUARD INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
142 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZM73C12025 | [11] | BOLT,M12x25mm - Course Thread | KOBSems |
| 2. | YT21C02037F1 | [1] | TRIM PANEL | KOBAssy. |
| 3. | YT21C02023P1 | [1] | TRIM PANEL | KOB |
| 4. | YJ21C01080D9 | [1] | WEATHERSTRIP | KOB |
| 5. | YT21C01885P1 | [1] | INSULATION | KOB |
| 6. | YT21C01875F1 | [1] | STRIKER | KOBSTRIKER |
| 7. | YT21C01872P1 | [1] | BRACKET | KOB Superseded by part number: YT21C01872P2 |
| 8. | YF21C01705P1 | [1] | PIN | KOB |
| 9. | ZR36X00700 | [1] | RING | KOBSnap |
| 10. | YF21C01782D1 | [1] | SHIM | KOB(2.3) |
| 11. | YT21C01943P1 | [1] | GROMMET | KOB |
