纽荷兰零件查询(E80BMSR) - COMPACT CRAWLER EXCAVATOR ASN LF06-04501 (NBTA18037) (01-069[08]) - GUARD INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
514 次

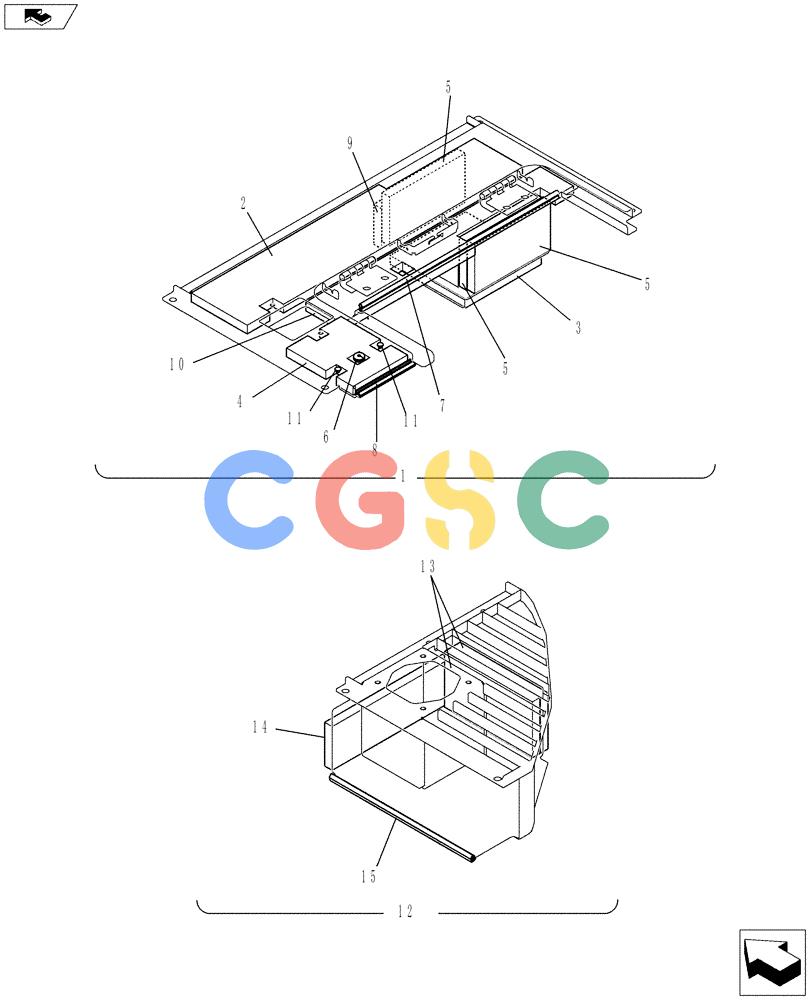

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT22C00017F1 | [1] | COVER ASSY | KOB |
| 2. | YT22C01190F1 | [1] | COVER ASSY | KOB |
| 3. | YT22C01194P1 | [1] | INSULATION | KOB |
| 4. | YT22C01218P1 | [1] | INSULATION | KOB |
| 5. | YT22C01237P1 | [1] | INSULATION | KOB |
| 6. | YT22C01196P1 | [3] | INSULATION | KOB |
| 7. | LQ13E01166P1 | [1] | GROMMET | KOB |
| 8. | YZ21C01044D1 | [1] | WEATHERSTRIP | KOB |
| 9. | YN21C01136DE | [1] | WEATHERSTRIP | KOB |
| 10. | YT22C01199P1 | [1] | INSULATION | KOB |
| 11. | YT22C01198P1 | [1] | INSULATION | KOB |
| 12. | PV02B01073D1 | [2] | CAP | KOB |
| 13. | YT22C01144P1 | [2] | INSULATION | KOB |
| 14. | YT22C01163P1 | [1] | INSULATION | KOB |
| 15. | PM21C01091D4 | [1] | WEATHERSTRIP | KOB |
