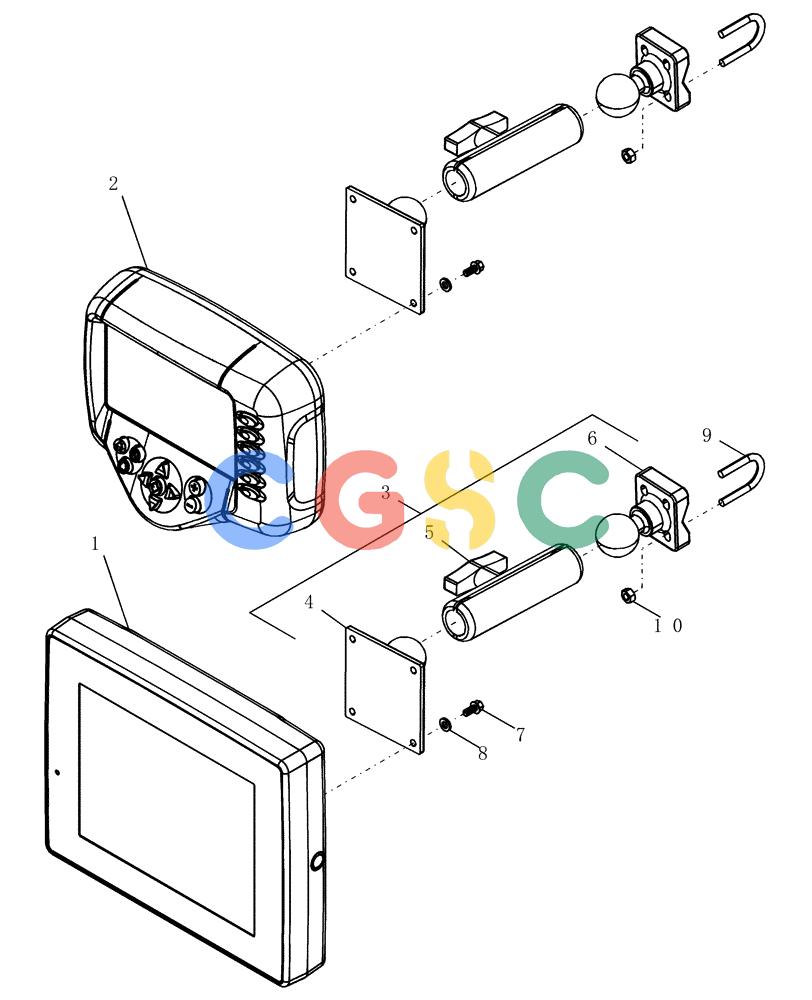

凯斯零件查询(2330) - PRECISION AIR CART (1/08-12/15) (55.510.01) - DISPLAY MONITOR MOUNT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
232 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87668610
|
[1] |
DISPLAY
|
GI
field service black, Years: -01-AUG-08 Superseded by part number: 84604338R
|
| 1. |
87385125
|
[1] |
DISPLAY
|
GI
field service black, Start Year: 01-AUG-08 Superseded by part number: 84604338R
|
| 1. |
87385125R
|
[1] |
REMAN-ELECT MONITOR
|
RAC
Reman-Monitor 2280, 2330, 3380, 3430, Precision Air Carts Superseded by part number: 84604338R
|
| 1. |
87385125C
|
[1] |
CORE-MONITOR
|
RAC
Return Part Number
|
| 1. |
84604338R
|
[1] |
REMAN-ELECT MONITOR
|
GI
3380, 3430 Both(7/08), 3380, 3430 Both(7/08), Reman For 87385125
|
| 1. |
84604338C
|
[1] |
CORE-MONITOR
|
GI
Return Part Number
|
| 2. |
87703363
|
[1] |
CONTROL MONITOR
|
ZED
small wide configurable, Years: -01-FEB-10
|
| 2. |
87703363R
|
[1] |
REMAN-ELECT MONITOR
|
ZED
2280, 2330 BOTH (1/08-), 3380, 3430 BOTH (7/08-)
|
| 2. |
87703363C
|
[1] |
CORE-MONITOR
|
ZED
Return Part Number
|
| 2. |
84240403
|
[1] |
CONTROL MONITOR
|
BAS
Small Wide Configurable Display 1.5TS-CIH, Start Year: 01-FEB-10 Superseded by part number: 47585553
|
| 2. |
84486874R
|
[1] |
REMAN-ELECT MONITOR
|
ZED
2280, 2330, Both (1/08-), 3380, 3430, Both (7/08-), Reman for New PN 84240403 Superseded by part number: 47585553R
|
| 2. |
84486874C
|
[1] |
CORE-MONITOR
|
ZED
Return Part Number
|
| 3. |
87386396
|
[1] |
MOUNT
|
SAS
Mount Color Display
|
| 4. |
87386398
|
[1] |
SUPPORTING ARM
|
GI
Ram Square Mount, 75 x 75
|
| 5. |
87284257
|
[1] |
ARM
|
GI
Supporting
|
| 6. |
87284259
|
[1] |
PLATE
|
GI
Base, Double U-bolt
|
| 7. |
86508568
|
[4] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 8. |
86588450
|
[4] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 9. |
435430A1
|
[2] |
U-BOLT
|
CAS
ur 1/4" x 1" w x 1 3/4" d 1" thread
|
| 10. |
7770
|
[4] |
NUT,Hex, 1/4 - 20, Cl 5
|
NH
|
| 11. |
GL-521
|
[1] |
MOUNTING PARTS
|
FLX
implement receptacle
|
