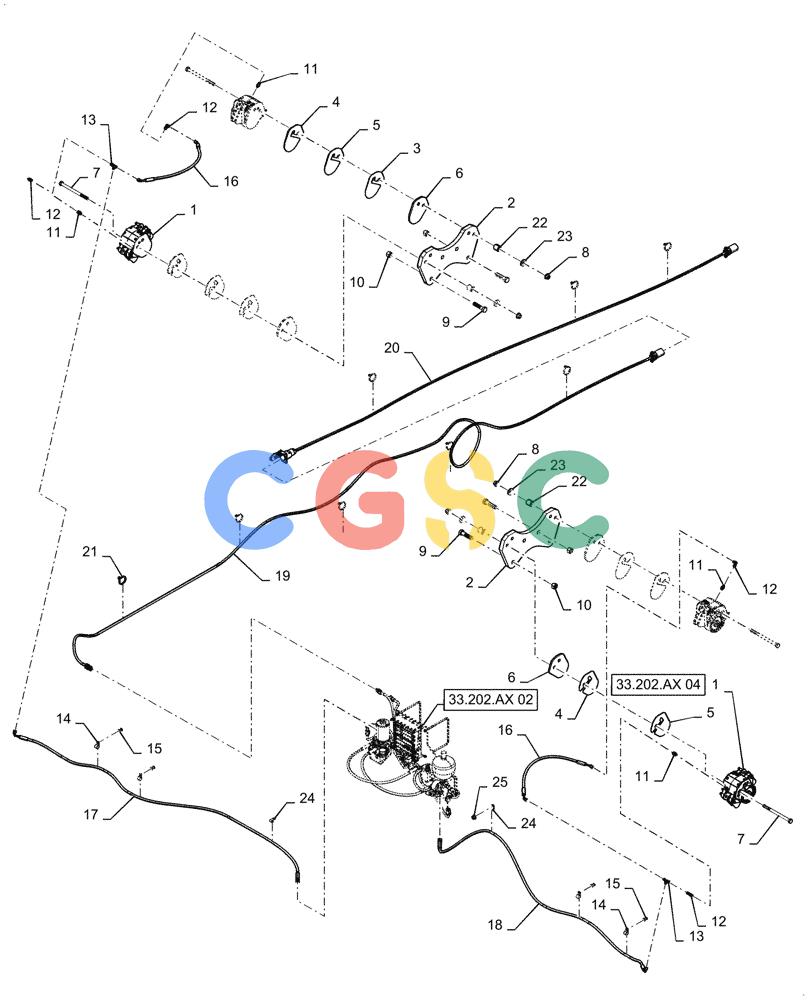

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (33.202.AX[03]) - DUAL BRAKES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
804 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47695029
|
[4] |
CALIPER
|
SAS
Disc Brake
|
| 2. |
47752898
|
[2] |
PLATE
|
SAS
Mounting Black
|
| 3. |
47591932
|
[2] |
SHIM
|
SAS
6.35mm
|
| 4. |
47591936
|
[4] |
SHIM
|
SAS
1.52mm
|
| 5. |
47591934
|
[4] |
SHIM
|
SAS
3.05mm
|
| 6. |
47591939
|
[4] |
SHIM
|
SAS
9.52mm
|
| 7. |
47867743
|
[8] |
BOLT
|
SAS
M16 x 220 mm
|
| 8. |
86512498
|
[8] |
FLANGE NUT,M16 x 2, Cl 10
|
PA
|
| 9. |
382101
|
[8] |
BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8
|
NH
|
| 10. |
725637
|
[8] |
NUT,M20 x 2.5, Cl 8
|
BER
Superseded by part number: 380424
|
| 11. |
265235
|
[4] |
HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC
|
WIN
|
| 12. |
86512933
|
[4] |
90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw
|
BAS
|
| 13. |
86513653
|
[2] |
TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC
|
WIN
|
| 14. |
86637976
|
[4] |
CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type
|
FAR
|
| 15. |
47756303
|
[4] |
RIVET
|
SAS
1/4"
|
| 16. |
47706605
|
[2] |
HYDRAULIC HOSE
|
SAS
6.3 x 700mm
|
| 17. |
47773798
|
[1] |
HYDRAULIC HOSE
|
SAS
6.3 x 2450mm
|
| 18. |
47773799
|
[1] |
HYDRAULIC HOSE
|
SAS
6.3 x 2150mm
|
| 19. |
47922304
|
[1] |
WIRE HARNESS
|
SAS
Brakes Air Cart
|
| 20. |
47732726
|
[1] |
WIRE HARNESS
|
SAS
|
| 21. |
87502038
|
[24] |
CABLE TIE
|
BN
|
| 22. |
47851705
|
[8] |
SPACER
|
SAS
31.75 x 17.48 x 32
|
| 23. |
122432
|
[8] |
WASHER,17mm ID x 41mm OD x 6mm Thk
|
NH
Superseded by part number: 84058945
|
| 24. |
86625036
|
[2] |
CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type
|
FAR
|
| 25. |
9804277
|
[1] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
