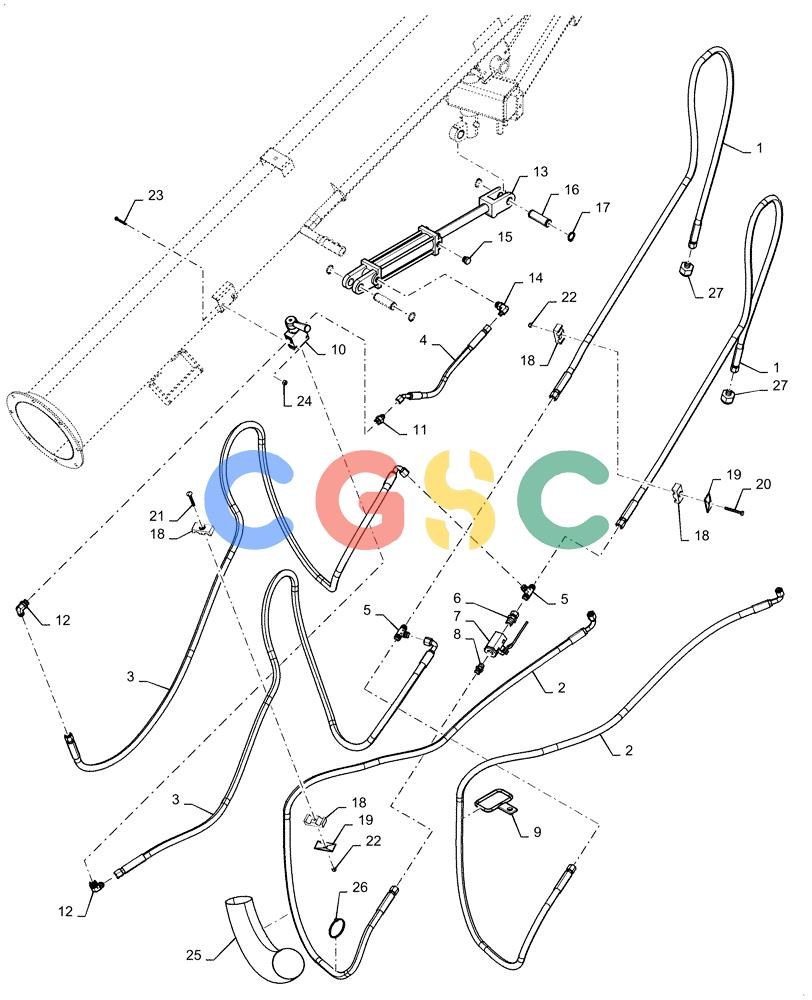

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (35.100.XX[01]) - MANUAL AUGER HYDRAULICS 350 BUSHELS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
943 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47841436
|
[2] |
HYDRAULIC HOSE
|
SAS
12.5 X 2400 mm
|
| 2. |
47841437
|
[2] |
HYDRAULIC HOSE
|
SAS
12.5 X 2575M mm
|
| 3. |
47841438
|
[2] |
HYDRAULIC HOSE
|
SAS
12.5 X 3175 mm
|
| 4. |
47841440
|
[1] |
HYDRAULIC HOSE
|
SAS
10 x 575 mm
|
| 5. |
128996
|
[2] |
TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC
|
WIN
|
| 6. |
47761142
|
[1] |
TEE
|
CUR
3/4"-16 x 1/2-14"
|
| 7. |
350171A1
|
[1] |
VALVE
|
CON
Ball
|
| 8. |
163334
|
[1] |
HYD CONNECTOR,3/4" - 16 JIC x 3/8" - 18 NPT
|
DUB
|
| 9. |
84271625
|
[1] |
BRACKET
|
SAS
|
| 10. |
47838477
|
[1] |
HYDRAULIC VALVE
|
SAS
3 Way Rotary Superseded by part number: 47930337
|
| 11. |
128817
|
[1] |
HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC
|
NH
|
| 12. |
128830
|
[2] |
90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB
|
NH
|
| 13. |
84490493
|
[1] |
HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke
|
SAS
|
| 14. |
87329788
|
[1] |
90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring
|
SAS
|
| 15. |
9479
|
[1] |
PLUG
|
SAS
Breather
|
| 16. |
84361344
|
[2] |
PIN
|
SAS
Cylinder 25.4 x 73.15
|
| 17. |
87019495
|
[4] |
SNAP RING,#98, Ext
|
GFD
|
| 18. |
6560407
|
[5] |
CLAMP,2 Hole, 18mm ID
|
BER
|
| 19. |
87000230
|
[5] |
PLATE
|
GI
Cover
|
| 20. |
120061
|
[3] |
BOLT,Hex, M8 x 60mm L, Cl 8.8
|
NH
|
| 21. |
86512445
|
[2] |
CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8
|
NH
|
| 22. |
86629542
|
[5] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 23. |
86977790
|
[2] |
BOLT,Hex, M6 x 45mm, Cl 8.8
|
ZED
|
| 24. |
87030561
|
[2] |
NUT,M6 x 1, Cl 8
|
WIC
|
| 25. |
87502709
|
[1] |
PROTECTIVE SLEEVE,2-1/2" OD x 18" L
|
RAC
|
| 26. |
289862C1
|
[2] |
CABLE TIE,3/16" x 7"
|
IH
Superseded by part number: 529070
|
| 27. |
84278113
|
[2] |
REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male
|
WIC
|
