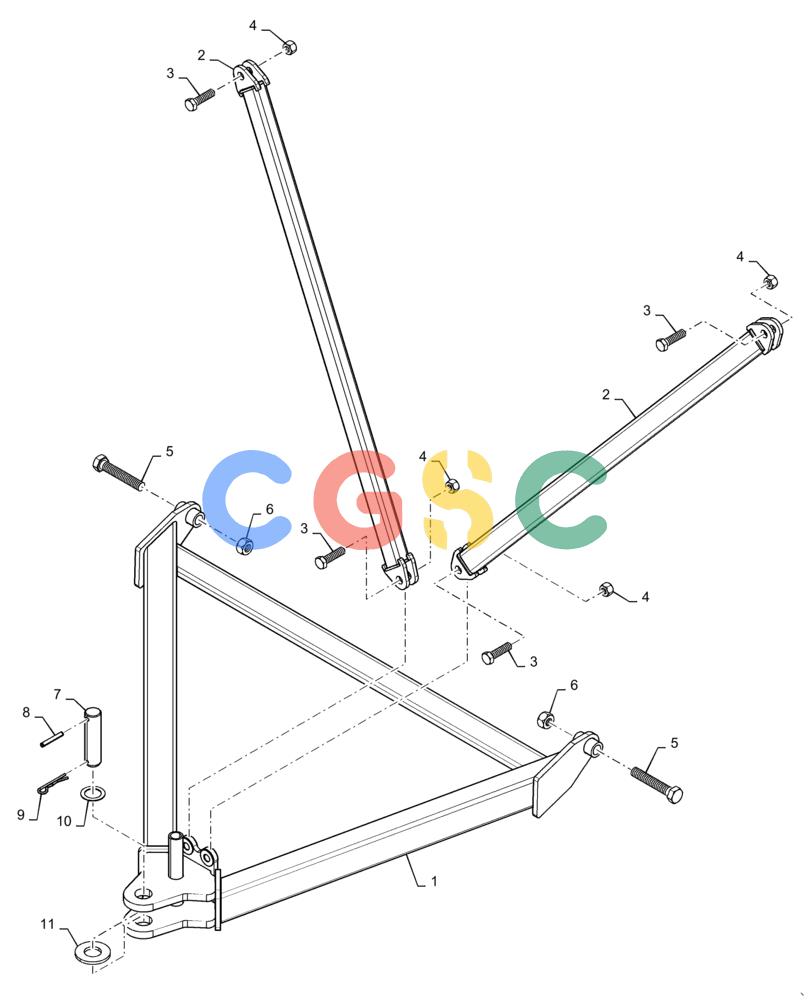

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (37.162.AA[02]) - REAR HITCH 350 BUSHELL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
293 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47458169
|
[1] |
FRAME
|
SAS
Rear Hitch Black
|
| 2. |
47581100
|
[2] |
HITCH
|
SAS
Brace Rear Black
|
| 3. |
16054921
|
[4] |
SCREW,Hex, M24 x 90mm, Cl 8.8
|
LEC
Superseded by part number: 16054937
|
| 4. |
589418
|
[4] |
LOCK NUT,M24 x 3, Cl 8
|
BER
|
| 5. |
1836642
|
[2] |
BOLT,Hex, M30 x 170, 10.9
|
BER
|
| 6. |
87752066
|
[2] |
NUT
|
BRR
M30
|
| 7. |
47585001
|
[1] |
PIN
|
SAS
Shank 50.8 X 196
|
| 8. |
84323489
|
[1] |
ROLL PIN
|
SAS
Cotter
|
| 9. |
84206680
|
[1] |
COTTER PIN
|
BRR
0.2 X 5
|
| 10. |
86625259
|
[1] |
WASHER,2.06" ID x 3" OD x 0.11" Thk
|
IMO
|
| 11. |
47764560
|
[1] |
WASHER
|
SAS
Pintle Hitch Wear
|
