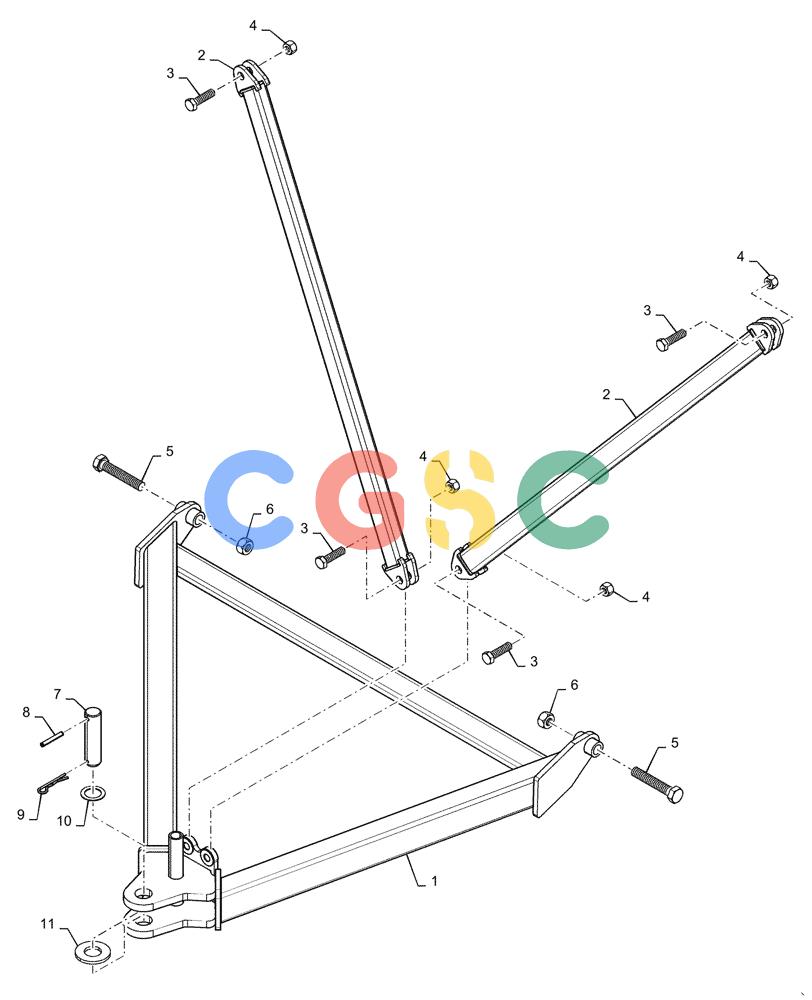

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (37.162.AA[03]) - REAR HITCH 435 460 555 580 BUSHELL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
408 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47458169
|
[1] |
FRAME
|
SAS
Rear Hitch, Black
|
| 2. |
47458176
|
[2] |
HITCH
|
SAS
Rear Brace, Black
|
| 3. |
16054921
|
[4] |
SCREW,Hex, M24 x 90mm, Cl 8.8
|
LEC
Superseded by part number: 16054937
|
| 4. |
85700123
|
[4] |
NUT,M24, Cl 8
|
BER
Superseded by part number: 57139
|
| 5. |
1836642
|
[2] |
BOLT,Hex, M30 x 170, 10.9
|
BER
|
| 6. |
87752066
|
[2] |
NUT
|
BRR
|
| 7. |
47585001
|
[1] |
PIN
|
SAS
50.8 x 196
|
| 8. |
84323489
|
[1] |
ROLL PIN
|
SAS
.500 x 3.5"
|
| 9. |
84206680
|
[1] |
COTTER PIN
|
BRR
0.2 x 5
|
| 10. |
86625259
|
[1] |
WASHER,2.06" ID x 3" OD x 0.11" Thk
|
IMO
|
| 11. |
47764560
|
[1] |
WASHER
|
SAS
|
