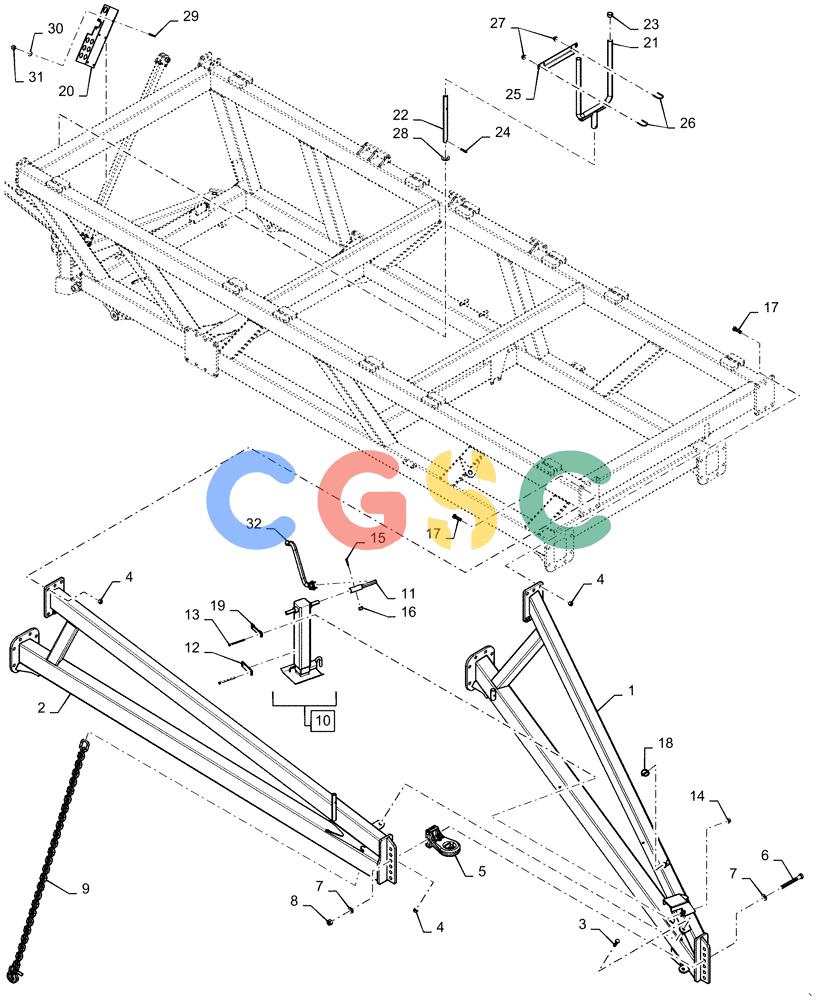

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (37.162.AA[04]) - FRONT HITCH TOW BETWEEN Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
370 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47363624
|
[1] |
HITCH
|
SAS
Front Left Red
|
| 1. |
47363625
|
[1] |
HITCH
|
SAS
Front Left Blue
|
| 1. |
47363626
|
[1] |
HITCH
|
SAS
Front Left Black
|
| 2. |
47614748
|
[1] |
HITCH
|
SAS
Front Right Red
|
| 2. |
47614749
|
[1] |
HITCH
|
SAS
Front Right Blue
|
| 2. |
47614750
|
[1] |
HITCH
|
SAS
Front Right Black
|
| 3. |
374890
|
[2] |
BOLT,Hex, M20 x 2.5 x 60mm, Cl 8.8, Full Thd
|
NH
|
| 4. |
725637
|
[30] |
NUT,M20 x 2.5, Cl 8
|
BER
Superseded by part number: 380424
|
| 5. |
84303598
|
[1] |
HITCH
|
GFD
Cat V 3 Hole
|
| 6. |
87020629
|
[3] |
BOLT,Hex, 1" - 8 x 8 1/2", Gr 8
|
SAS
|
| 7. |
87367
|
[6] |
WASHER,1.06" ID x 2" OD x 0.13" Thk
|
PA
|
| 8. |
9626600
|
[3] |
NUT,1"-8, GC
|
NH
|
| 9. |
47510620
|
[1] |
CHAIN
|
SAS
Safety 80,000 Lbs
|
| 10. |
21803
|
[1] |
JACK
|
FLX
10,000 Lbs With Crank
|
| 11. |
GL-637
|
[1] |
EXTENSION
|
FLX
Jack Handle
|
| 12. |
GL-639
|
[1] |
PLATE
|
FLX
Jack Retainer
|
| 13. |
328048
|
[4] |
BOLT,M12 x 1.75 x 147.68mm OAL, Cl 8.8
|
NH
|
| 14. |
86619803
|
[4] |
FLANGE NUT
|
NH
M12
|
| 15. |
88436
|
[1] |
BOLT,Hex, 3/8" - 16 x 2", Gr 5
|
GI
|
| 16. |
9637692
|
[1] |
NUT,3/8"-16, GB
|
NH
|
| 17. |
440588
|
[28] |
BOLT,Hex, M20 x 70, 8.8
|
NH
Superseded by part number: 80440588, 15224121
|
| 18. |
A61560
|
[1] |
LOCK PIN
|
CAS
Klik Superseded by part number: 285312
|
| 19. |
47743005
|
[1] |
BRACKET
|
SAS
Jack Retainer
|
| 20. |
47740582
|
[1] |
BRACKET
|
SAS
Rear Hitch Black
|
| 21. |
47633321
|
[1] |
CRADLE
|
SAS
Air Pack Black
|
| 22. |
47739911
|
[1] |
PIVOT
|
SAS
Cradle Black
|
| 23. |
8060
|
[2] |
CAP
|
FLX
1.5 X .750 Black
|
| 24. |
14610571
|
[2] |
COTTER PIN
|
COE
Slotted M10 X 60
|
| 25. |
47633324
|
[1] |
SUPPORT
|
SAS
Cradle Brace Black
|
| 26. |
352892A1
|
[2] |
U-BOLT
|
CAS
|
| 27. |
86619801
|
[4] |
FLANGE NUT,M8 x 1.25, Cl 8
|
PA
Superseded by part number: 87681210
|
| 28. |
87023158
|
[1] |
WASHER,1.31" ID x 2.5" OD x 0.15" Thk
|
SAS
1.312 X 2.500 X .150"
|
| 29. |
47741695
|
[3] |
U-BOLT
|
SAS
M8
|
| 30. |
86624184
|
[6] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 31. |
68841
|
[6] |
NUT,M8 x 1.25, Cl 8
|
BER
Superseded by part number: 16104414
|
| 32. |
22032
|
[1] |
CRANK
|
FLX
Jack Handle
|
