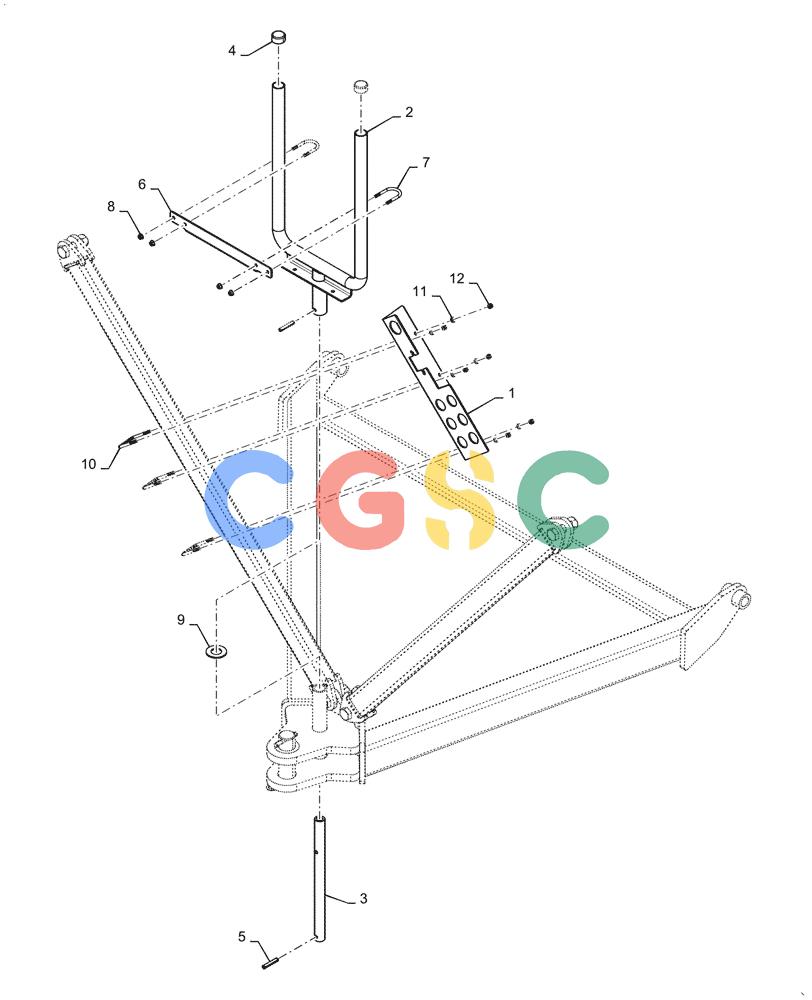

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (37.162.AA[05]) - AIR PACK HANGER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
695 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47740582
|
[1] |
BRACKET
|
SAS
Rear Hitch Black
|
| 2. |
47633321
|
[1] |
CRADLE
|
SAS
Air Pack Black
|
| 3. |
47739911
|
[1] |
PIVOT
|
SAS
Cradle
|
| 4. |
8060
|
[2] |
CAP
|
FLX
Vinyl
|
| 5. |
14610571
|
[2] |
COTTER PIN
|
COE
M10 x 60 mm
|
| 6. |
47633324
|
[1] |
SUPPORT
|
SAS
Cradle Brace
|
| 7. |
352892A1
|
[2] |
U-BOLT
|
CAS
|
| 8. |
86619801
|
[4] |
FLANGE NUT,M8 x 1.25, Cl 8
|
PA
Superseded by part number: 87681210
|
| 9. |
87023158
|
[1] |
WASHER,1.31" ID x 2.5" OD x 0.15" Thk
|
SAS
|
| 10. |
47741695
|
[3] |
U-BOLT
|
SAS
|
| 11. |
86624184
|
[6] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 12. |
68841
|
[6] |
NUT,M8 x 1.25, Cl 8
|
BER
Superseded by part number: 16104414
|
