纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (HC700[1]) - CYLINDER ASSY, BUCKET New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
225 次

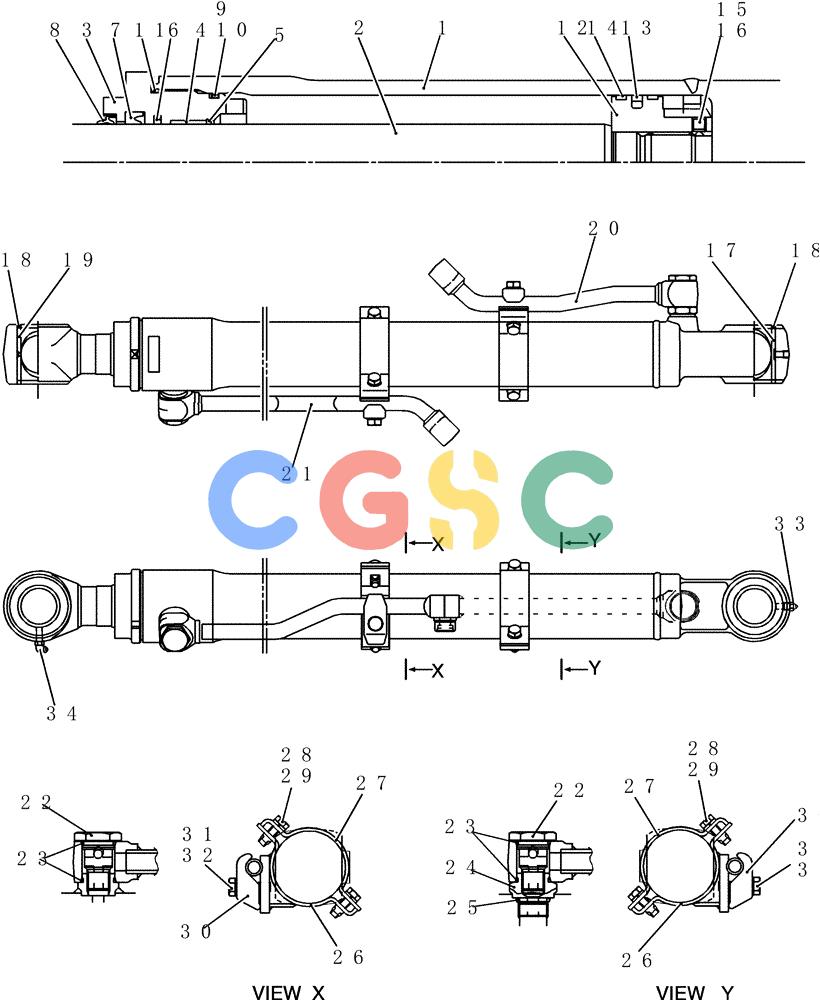

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT01V00032F1 | [1] | BUCKET CYLINDER | KOBAssy |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTube, Cylinder |
| 3. | YT01V00019S003 | [1] | CYLINDER HEAD | KOB |
| 4. | YT01V00019S004 | [1] | BUSHING | KOB |
| 5. | 2438U715S7 | [1] | SNAP RING | KOBRetaining |
| 6. | YT01V00019S006 | [1] | RING | KOBBuffer |
| 7. | 2438U715S16 | [1] | SNAP RING | KOBU |
| 8. | YJ01V00008S006 | [1] | WIPER | KOBRing |
| 9. | ZD12G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOB |
| 10. | PH01V00015S008 | [1] | BACK-UP RING | KOB |
| 11. | ZD11G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOB |
| 12. | PH01V00015S015 | [1] | PISTON | KOB |
| 13. | 2438U852S15 | [1] | RING | KOBSeal |
| 14. | PH01V00015S017 | [2] | RING | KOBSlide |
| 15. | 2438U1057S16 | [1] | SET SCREW | KOBSetscrew |
| 16. | 2436U946S11 | [1] | BALL | KOB |
| 17. | YT01V01012P1 | [1] | BUSHING | KOB |
| 18. | 2438U717S21 | [4] | SEAL | KOBRing, Wiper |
| 19. | 2438U827S11 | [1] | BUSHING | KOB |
| 20. | YT01V00032S020 | [1] | PIPE | KOBAssy |
| 21. | YT01V00032S021 | [1] | PIPE | KOBAssy |
| 22. | PH01V00014S024 | [2] | PLUG | KOBConnector |
| 23. | ZD12P02600 | [4] | O-RING | KOB |
| 24. | YT01V00032S024 | [1] | NIPPLE | KOB |
| 25. | ZD12P02400 | [1] | O-RING | KOB |
| 26. | YT01V00032S026 | [2] | BAND | KOBAssy |
| 27. | YT01V00003S022 | [2] | BAND | KOB |
| 28. | ZS18C10035 | [4] | SCREW,Hex, M10 x 35mm | KOBCap |
| 29. | ZW26X10000 | [4] | LOCK WASHER | KOB |
| 30. | YR01V00001S032 | [2] | CLAMP | KOB |
| 31. | ZS18C12045 | [2] | SCREW,Hex, M12 x 45mm | KOBCap |
| 32. | ZW26X12000 | [2] | WASHER | KOB |
| 33. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOBGrease |
| 34. | ZG91U02000 | [1] | LUBE NIPPLE | KOBGrease |
| . . | YT01V00019R100 | [1] | REPAIR KIT | KOBConsists Of Item 6x1, 7x1, 8x1, 9x1 |
| . . | YT01V00019R200 | [1] | REPAIR KIT | KOBConsists Of Item 13x1, 14x2 |
| . . | YT01V00019R300 | [1] | REPAIR KIT | KOBConsists Of Item 6x1, 7x1, 8x1, 9x1 |
| . . | YT01V00032R400 | [1] | REPAIR KIT | KOBConsists Of Item 1x1, 17x1, 18x2 |
| K. | YT01V00032R500 | [1] | REPAIR KIT | KOBConsists Of Item 2x1, 19x1, 18x2 |
