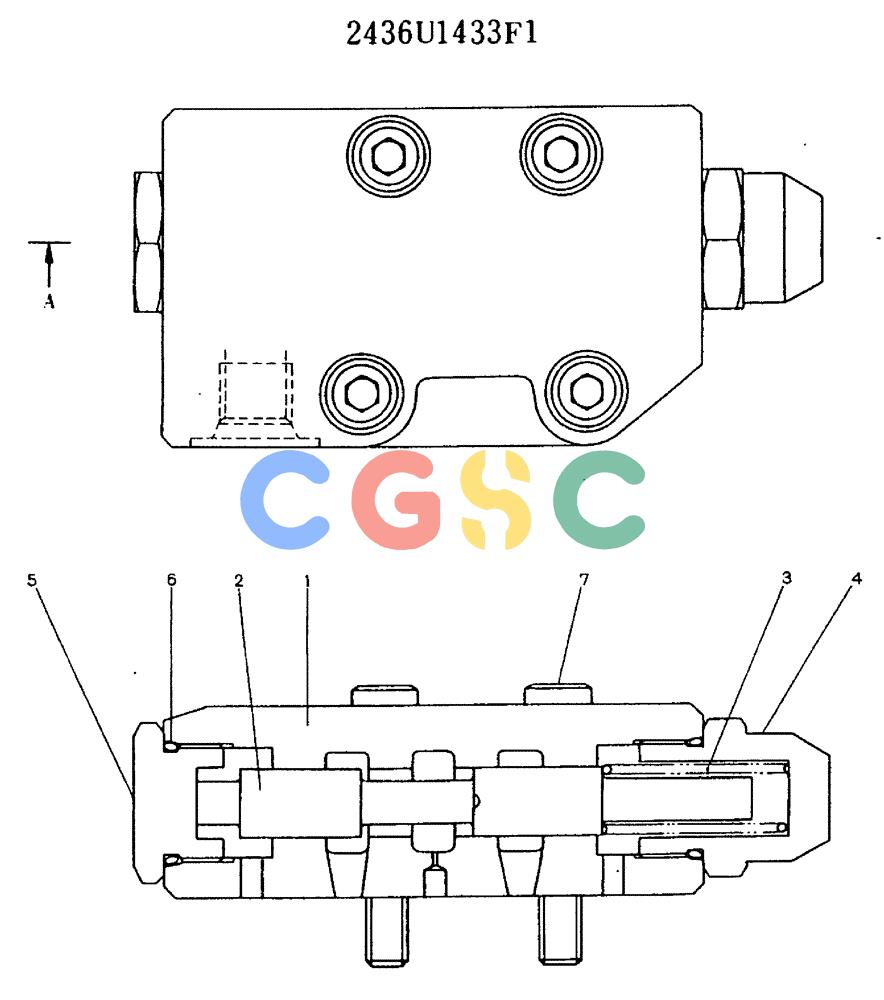

神钢零件查询(MD200BLC) - EXCAVATOR ASN YQU0001 (1/80-12/06) (11-016) - VALVE ASSY, PILOT - 2436U1433F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
311 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1433F1 | [1] | VALVE ASSY PILOT, CONSISTS OF THE FOLLOWING PARTS | VALVE ASSY PILOT, CONSISTS OF THE FOLLOWING PARTS |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 3. | 2436U1301S3 | [1] | SPRING | |
| 4. | 2436U1433S4 | [1] | CAP | |
| 5. | 2436U1433S5 | [1] | CAP | |
| 6. | 2483U1564S14 | [2] | O-RING | |
| 7. | ZS23C08045 | [4] | SCREW,Hex Socket Head, M8 x 45mm | KOBM08x1.25x45mm |
