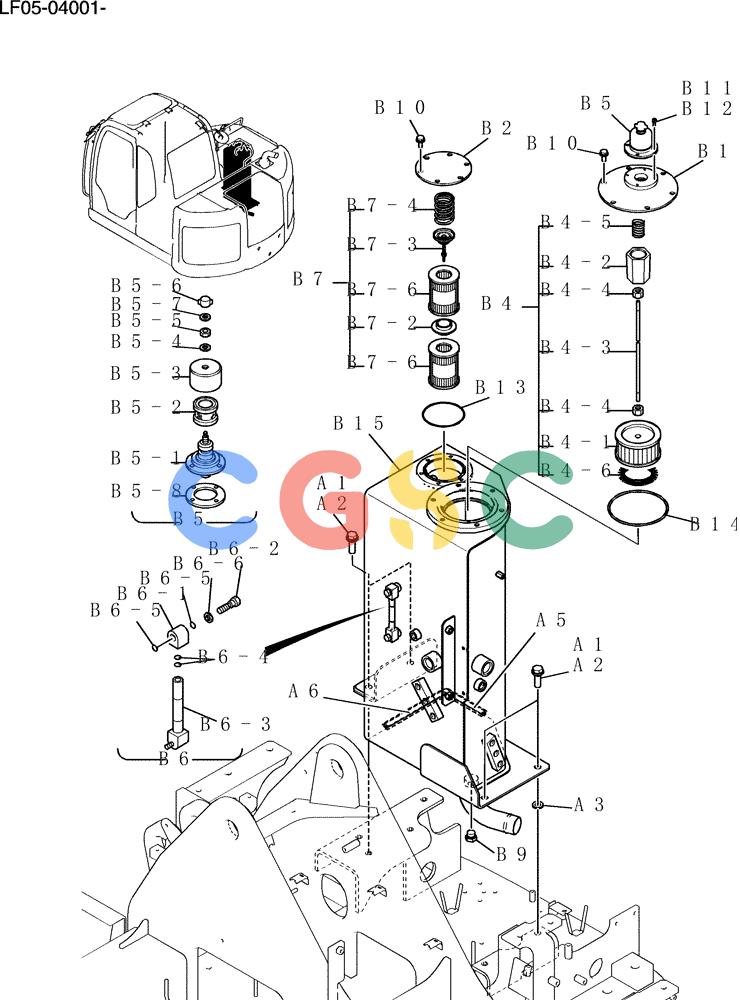

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (062-18[1]) - TANK INSTAL, HYD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
732 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT33H00042F1 | [1] | Tank Instal, Hyd | |
| . . | YT33H00036F1 | [1] | TANK | KOBTank Instal, Hyd |
| A1. | ZS18C16050 | [4] | SCREW,Hex, M16 x 50mm | KOBCap |
| A2. | ZW16H16000 | [4] | WASHER | KOB |
| A3. | LE33H01017D1 | [3] | SHIM | KOB(1. 0) |
| A5. | LS21C01093DH | [1] | TRIM | KOB |
| A6. | LS21C01093DM | [1] | GASKET | KOB |
| . . | YT33H00043F1 | [1] | Tank Assy, Hyd | |
| B1. | YT33H01100P1 | [1] | COVER | KOB |
| B2. | YT33H01101P1 | [1] | COVER | KOB |
| B4. | YT50V00003F1 | [1] | STRAINER ELEMENT | KOB |
| B4-1. | YT50V00003S001 | [1] | STRAINER ELEMENT | KOB |
| B4-2. | 2446R110S2 | [1] | HOLDER | KOB |
| B4-3. | YT50V00003S003 | [1] | BOLT | KOBBolt |
| B4-4. | ZN11C10008 | [2] | NUT | KOB Superseded by part number: ZN18C10008 |
| B4-5. | 2446R110S6 | [1] | SPRING | KOB |
| B4-6. | NSS | [1] | NOT SERVICED SEPARATELY | CONO-ring |
| B5. | YN57V00004F1 | [1] | BREATHER | KOB Superseded by part number: YN57V00010F1 |
| B5-2. | YN57V00004S002 | [1] | ELEMENT | KOBFilter-element, H/d Tank Breather Superseded by part number: YN57V00010S002 |
| B5-6. | 2446U260S10 | [1] | NUT | KOB |
| B5-8. | 2446U260S8 | [1] | PACKING | KOB |
| B6. | YN58S00009F1 | [1] | GAUGE | KOBAssy, Level, Oil |
| B7. | YR52V01001F2 | [1] | FILTER ASSY | KOBElement, Serial Range: LF05-04001-LF05-04259 Superseded by part number: YR52V01004F2 |
| . . | YR52V01004F2 | [1] | ELEMENT | KOBElement, Start Serial: LF05-04260 |
| B7-2. | YR52V01001S002 | [1] | RUBBER JOINT | KOB |
| B7-3. | YR21V00001P1 | [1] | VALVE | KOBCheck |
| B7-4. | YR52V01001S004 | [1] | SPRING | KOB |
| B7-6. | YR52V01003P1 | [2] | FILTER | KOBElement, Serial Range: LF05-04001-LF05-04259 Superseded by part number: YR52V01003P2 |
| . . | YR52V01003P2 | [2] | HYDRAULIC OIL FILTER | KOBElement, Start Serial: LF05-04260 |
| B9. | ZE72X08000 | [1] | PLUG | KOB |
| B10. | ZM73C10025 | [12] | BOLT,M10x25mm - Course Thread | KOBSems |
| B11. | ZS28C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBCap, Serial Range: LF05-04001-LF05-04212 |
| . . | YN33H01304P1 | [4] | BOLT | KOBSems, Start Serial: LF05-04213 |
| B12. | ZW26K06000 | [4] | LOCK WASHER | KOB, Serial Range: LF05-04001-LF05-04212 |
| B13. | ZD11G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB |
| B14. | ZD11G15500 | [1] | O-RING,154.30mm ID x 165.70mm OD x 5.70mm | KOB |
| B15. | YT33H00040P1 | [1] | TANK | KOB |
| K. | YR52V01001R200 | [1] | ELEMENT | KOBKit Consists Of Item (b7-2)x1, (b7-6)x2, Start Serial: LF05-04001 Superseded by part number: YR52V01001S002, YR52V01003P2 |
| K. | YR52V01004R200 | [1] | REPAIR KIT | KOBElement Consists Of Item (b7-2)x1, (b7-6)x2, Start Serial: LF05-04260 Superseded by part number: YR52V01001S002, YR52V01003P2 |
