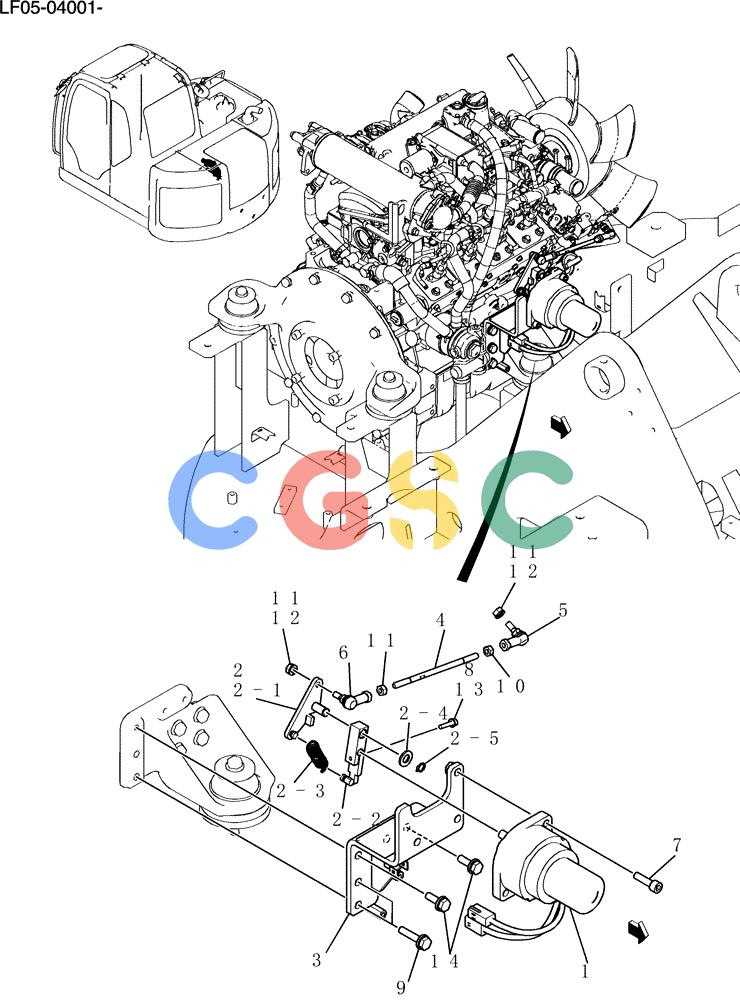

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (065-01[1]) - CONTROL ASSY, ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
658 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT11M00010F1 | [1] | Control Assy, Engine | |
| 1. | YN20S00002F2 | [1] | SMALL ELECTRIC MOTOR | KOBAssy, Governor Superseded by part number: YN20S00002F1 |
| . . | YN20S00002F1R | [1] | REMAN-ELECTRIC MOTOR | KOBE80BMSR ASN LF05-04001, Reman for New P/N YN20S00002F2 |
| . . | YN20S00002F1C | [1] | CORE-ELECTRIC MOTOR | KOBReturn Number |
| 2. | YT11M01027F1 | [1] | LEVER | KOBLever Assy |
| 2-1. | YT11M01028P1 | [1] | PLATE | KOBPlate |
| 2-2. | YM11M01048F1 | [1] | LEVER | KOBLever Assy |
| 2-3. | YN11M01210P1 | [1] | SPRING | KOB |
| 2-4. | ZW16P12000 | [1] | WASHER | KOB |
| 2-5. | ZR16X01200 | [1] | RING | KOBRetaining |
| 3. | YT11M01051P1 | [1] | BRACKET | KOB |
| 4. | YT11M01034P1 | [1] | BAR | KOB |
| 5. | YN11M01013D1 | [1] | BALL JOINT | KOBM08x1.25x36mm Long (Left hand thread) Superseded by part number: HR37D08000G1 |
| 6. | 2425R227D2 | [1] | ARTICULATION | KOBJoint, Ball Superseded by part number: HR37C08000G1 |
| 7. | ZS28C10035 | [3] | SCREW,Hex Socket Head, M10 x 35mm | KOBCap |
| 8. | ZS28C06025 | [1] | SCREW,Hex Socket Head, M6 x 25mm | KOBCap |
| 9. | ZM73C10045 | [2] | BOLT,M10x45mm - Course Thread | KOBSems |
| 10. | 2420T7359 | [1] | NUT | KOBM08x1.25x36mm Long (Left hand thread) |
| 11. | ZN18C08007 | [3] | NUT | KOB |
| 12. | ZW26X08000 | [2] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 13. | ZW26X06000 | [1] | LOCK WASHER | KOB |
| 14. | ZM73C10030 | [3] | BOLT,M10x30mm - Course Thread | KOBSems |
