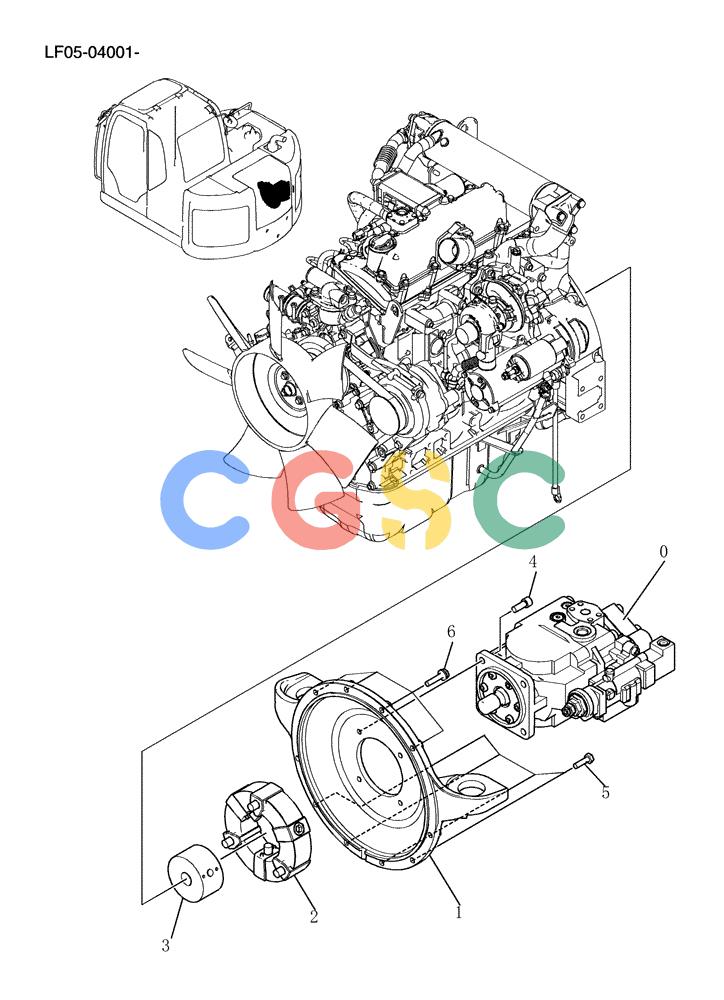

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (071-01[1]) - POWER TAKE-OFF ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
245 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30P00004F1 | [1] | Power Take-off Assy | |
| 0. | YT10V00016F1 | [1] | HYDRAULIC PUMP | KOBAssy Superseded by part number: YT10V00023F1 |
| . . | YT30P00003F1 | [1] | PTO | KOBPower Take-off Assy |
| 1. | YT30P01007P1 | [1] | BRACKET | KOB |
| 2. | LF30P01001F1 | [1] | COUPLING | KOBAssy |
| 3. | YT30P01009P1 | [1] | HUB | KOB |
| 4. | ZS28C12030 | [4] | SCREW,Hex Socket Head, M12 x 30mm | KOBCap |
| 5. | ZS18C10035 | [4] | SCREW,Hex, M10 x 35mm | KOBCap |
| 6. | ZM73C10045 | [4] | BOLT,M10x45mm - Course Thread | KOBSems |
