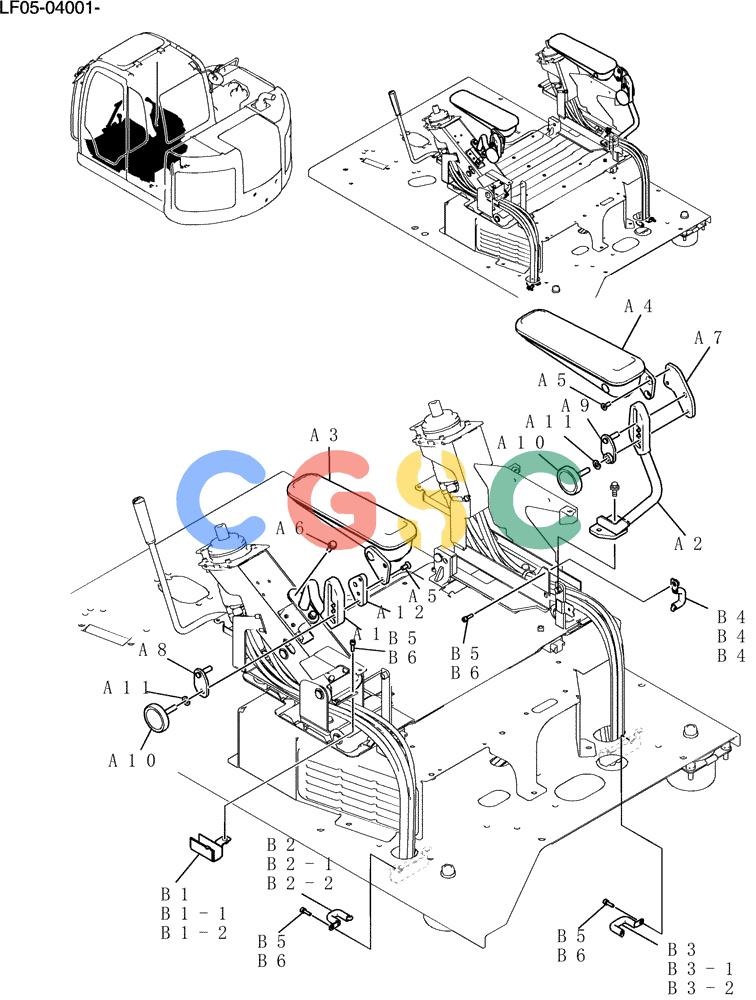

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (132-18[1]) - ARM REST New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1003 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN25M01183F1 | [1] | ARMREST | KOBArm Rest |
| A1. | YN25M01217P1 | [1] | BRACKET | KOB Superseded by part number: YN25M01217P2 |
| A2. | YN25M01205P1 | [1] | BRACKET | SM |
| A3. | YN25M01184P2 | [1] | ARMREST | KOB |
| A4. | YN25M01185P2 | [1] | ARMREST | KOB |
| A5. | ZS68C08018 | [4] | SCREW | SMCap |
| A6. | ZM27C08020 | [2] | BOLT | KOBSems |
| A7. | YN25M01211P1 | [1] | PLATE | SM |
| A8. | YN25M01219P1 | [1] | PLATE | KOB |
| A9. | YN25M01208P1 | [1] | PLATE | SM |
| A10. | YN25M01198P1 | [2] | HANDLE GRIP | SMKnob |
| A11. | ZW16P10000 | [2] | WASHER | KOB |
| A12. | YN25M01218P2 | [1] | PLATE | KOB |
| . . | YT12P01062F1 | [1] | Clamp Assy | |
| B1. | YT12P01037F1 | [1] | Clamp Assy | |
| B1-1. | YT12P01038P1 | [1] | Plate | |
| B1-2. | YT12P01040P1 | [1] | Rubber | |
| B2. | YT12P01063F1 | [1] | CLAMP | KOBClamp Assy |
| B2-1. | YT12P01064P1 | [1] | PLATE | KOBPlate |
| B2-2. | YT12P01065P1 | [1] | RUBBER PAD | KOBRubber |
| B3. | YT12P01044F1 | [1] | CLAMP | KOBClamp Assy |
| B3-1. | YT12P01045P1 | [1] | PLATE | KOBPlate |
| B3-2. | YT12P01046P1 | [1] | RUBBER PAD | KOBRubber |
| B4. | YT12P01047F1 | [1] | CLAMP | KOBClamp Assy |
| B4-1. | YT12P01048P1 | [1] | PLATE | KOBPlate |
| B4-2. | YT12P01050P1 | [1] | RUBBER PAD | KOBRubber |
| B5. | ZW26K06000 | [4] | LOCK WASHER | KOB |
| B6. | ZS28C06020 | [4] | SCREW,Hex Socket Head, M6 x 20mm | KOBCap |
