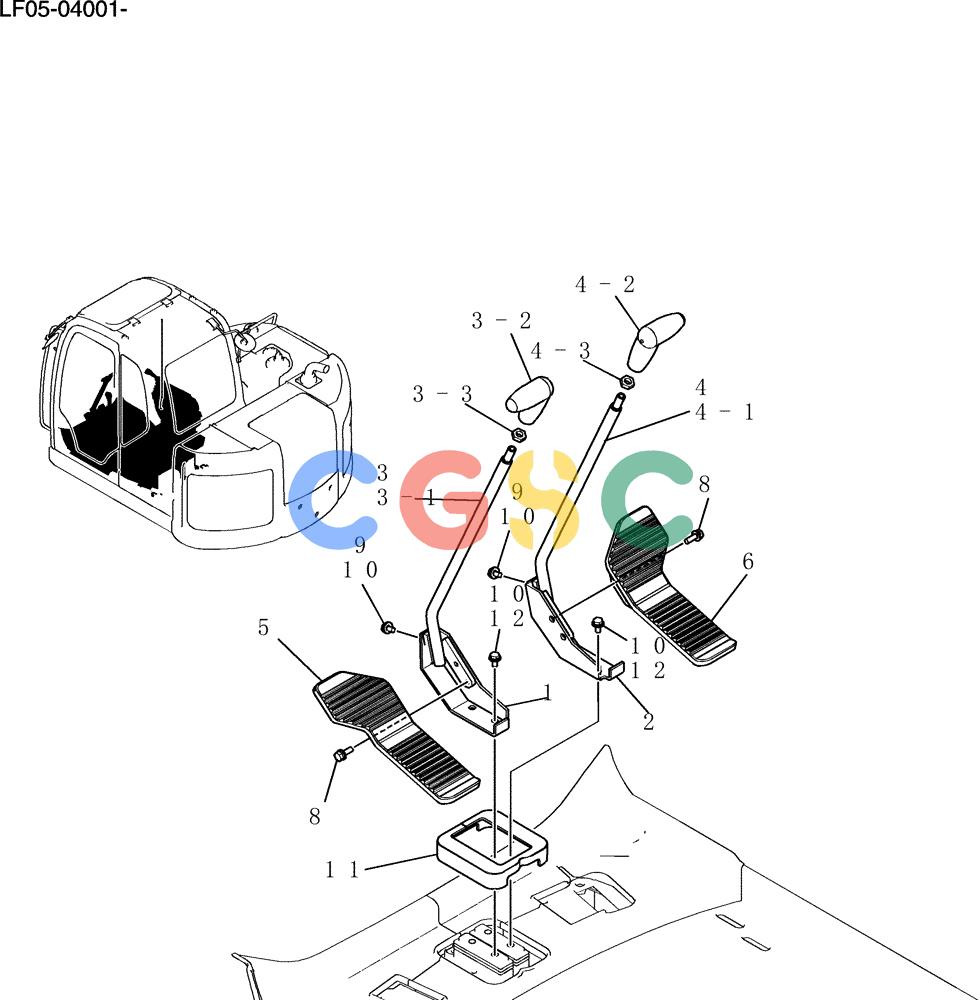

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (138-18[1]) - LEVER ASSY, PROPEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
765 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF50M00001F1 | [1] | LEVER | KOBLever Assy, Propel |
| 1. | LF50M01006P1 | [1] | SUPPORT | KOB |
| 2. | LF50M01009P1 | [1] | SUPPORT | KOB |
| 3. | YN50M01052F1 | [1] | LEVER | KOBAssy |
| 3-1. | YN50M01053P1 | [1] | LEVER | KOB |
| 3-2. | YN03M01040P1 | [1] | GRIP | KOB |
| 3-3. | 2420Z1232 | [1] | NUT | KOB |
| 4. | YN50M01051F1 | [1] | LEVER | KOBAssy |
| 5. | YN55M01011P1 | [1] | PEDAL | SM |
| 6. | YN55M01010P1 | [1] | PEDAL | SM |
| 8. | ZM22C08025 | [4] | BOLT | KOBSems |
| 9. | ZS18C08014 | [4] | SCREW,Hex, M8 x 14mm | KOBCap |
| 10. | ZW16H08000 | [8] | WASHER | KOB |
| 11. | YT26M00031P1 | [1] | FLOOR MAT | KOB |
| 12. | ZS28C08016 | [4] | SCREW,Hex Socket Head, M8 x 16mm | KOBCap |
