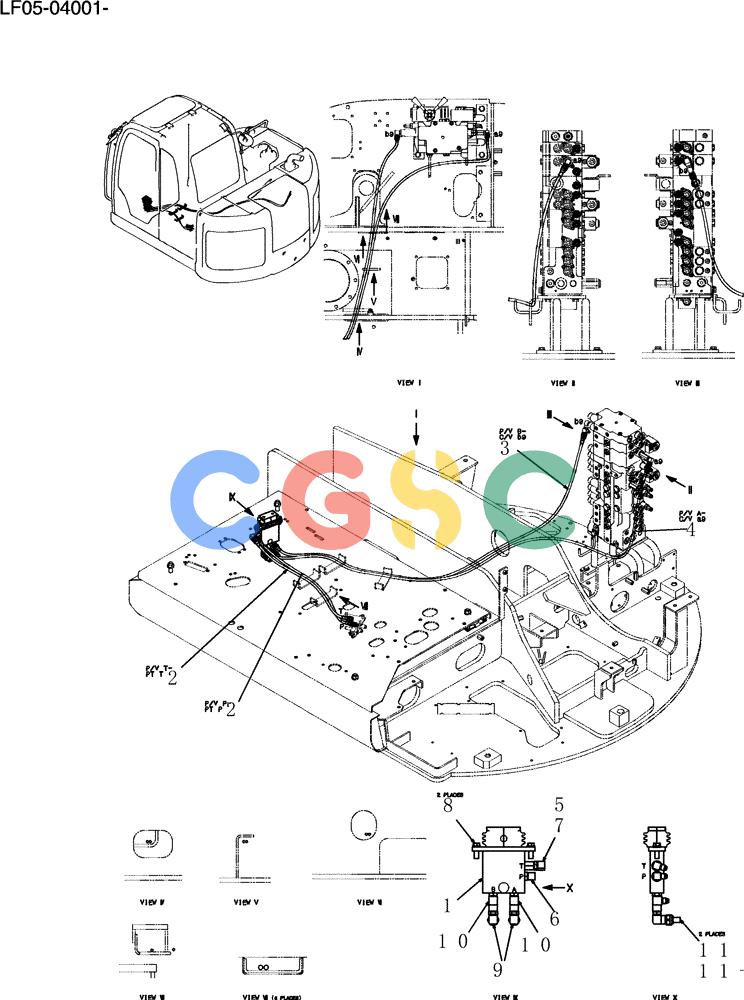

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (162-01[1]) - CONTROL LINES, REMOTE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
200 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF68H00019F1 | [1] | Control Lines, Remote | |
| 1. | YR30V00020F1 | [1] | VALVE | KOBAssy, Pilot |
| 2. | 2420R349D084 | [2] | HYDRAULIC HOSE,6.35 mm ID x 840.00 mm, SAE 100R7 | KOB Superseded by part number: 2420R349D085 |
| 3. | 2420R349D220 | [1] | HOSE,2200.00 mm | KOB Superseded by part number: HX21E04220DX |
| 4. | 2420R349D260 | [1] | HOSE | KOB Superseded by part number: HX21E04260DX |
| 5. | 2444Z2525 | [1] | HYD CONNECTOR | KOB |
| 6. | HH35X04004G3 | [1] | 90 ELBOW | KOB(with Filter) |
| 7. | ZH32X04000 | [1] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow |
| 8. | HM83C10030G1 | [2] | BOLT | KOBSems |
| 9. | 2444Z2894 | [2] | 90 ELBOW | KOBElbow |
| 10. | 2444Z2461 | [2] | TEE | KOB |
| 11. | YX52S00013P1 | [2] | SENSOR | SMPress (L.P.) Superseded by part number: LC52S00019P1 |
| 11-2. | ZD12P01100 | [1] | O-RING | KOB |
