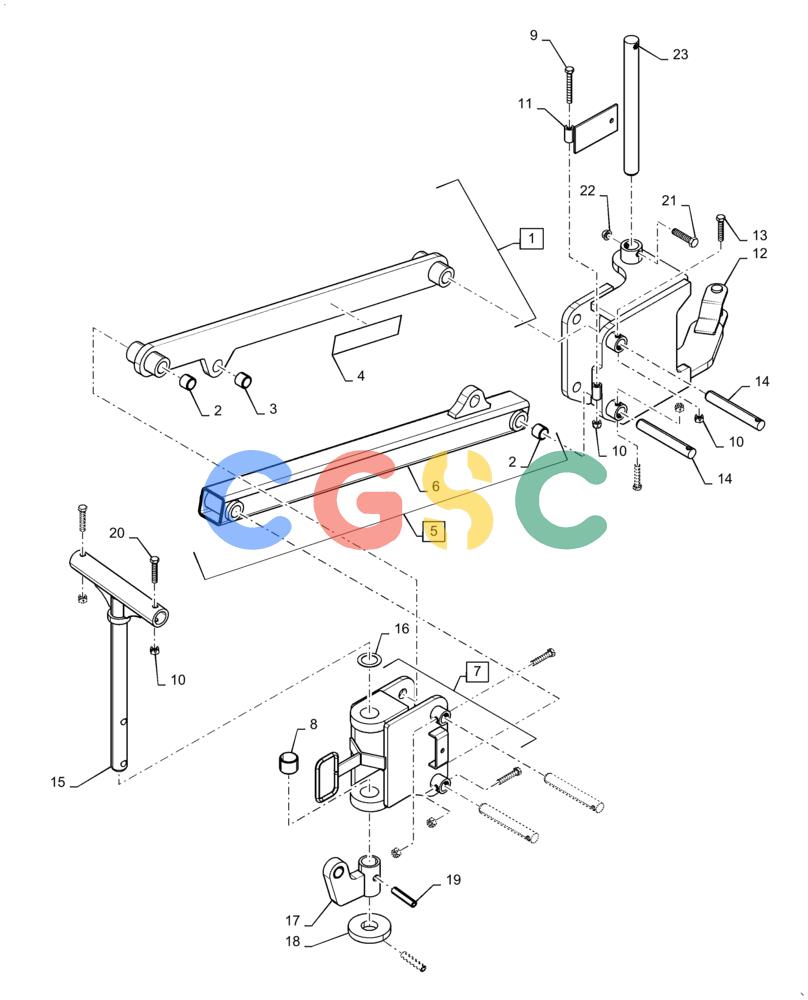

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (77.100.AB[01]) - 435, 460, 580 BUSHEL, HYDRAULIC AUGER PARALLEL ARM SUPPORT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
245 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47622462
|
[1] |
UPPER LINK
|
SAS
Parallel Arm, Incl 2 - 4
|
| 2. |
6635
|
[4] |
BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L
|
FLX
Superseded by part number: 87420246
|
| 3. |
87500592
|
[1] |
BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L
|
SAS
|
| 4. |
22903
|
[1] |
DECAL
|
FLX
Retroreflective, Amber
|
| 5. |
84527313
|
[1] |
LINK
|
SAS
Lower, Incl 2, 6
|
| 6. |
84384019
|
[1] |
LINK
|
SAS
Lower
|
| 7. |
84527314
|
[1] |
LINK
|
SAS
Outer, Incl 8
|
| 8. |
22093
|
[2] |
BUSHING,1-1/2" ID x 1-3/4" OD x 1" Thk
|
FLX
|
| 9. |
86508581
|
[1] |
BOLT,Hex, M12 x 90mm, Cl 8.8
|
NH
|
| 10. |
100038
|
[7] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 11. |
47630494
|
[1] |
HINGE
|
SAS
Hose Support
|
| 12. |
47455684
|
[1] |
LINKAGE
|
SAS
Inner Parallel Arms
|
| 13. |
9706693
|
[4] |
BOLT,M12 x 60mm, Cl 8.8
|
NH
|
| 14. |
84384076
|
[4] |
PIN,25.4mm OD x 180mm L
|
SAS
|
| 15. |
84384034
|
[1] |
BAR
|
SAS
Auger T
|
| 16. |
86632585
|
[1] |
WASHER,1.53" ID x 2.25" OD x 0.06" Thk
|
FOR
|
| 17. |
84527316
|
[1] |
CLEVIS
|
SAS
Auger Pivot
|
| 18. |
84536100
|
[1] |
STOP
|
SAS
Auger Pivot
|
| 19. |
86624086
|
[2] |
PIN,5/8" x 3", Coiled
|
FOR
|
| 20. |
9706717
|
[2] |
BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8
|
NH
|
| 21. |
87301770
|
[2] |
BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 8
|
SAS
|
| 22. |
6035
|
[2] |
LOCK NUT,Hex, 9/16" - 12, Gr 8
|
SAS
Superseded by part number: 280328
|
| 23. |
84384075
|
[1] |
PIN,31.75mm OD x 342mm L
|
SAS
|
