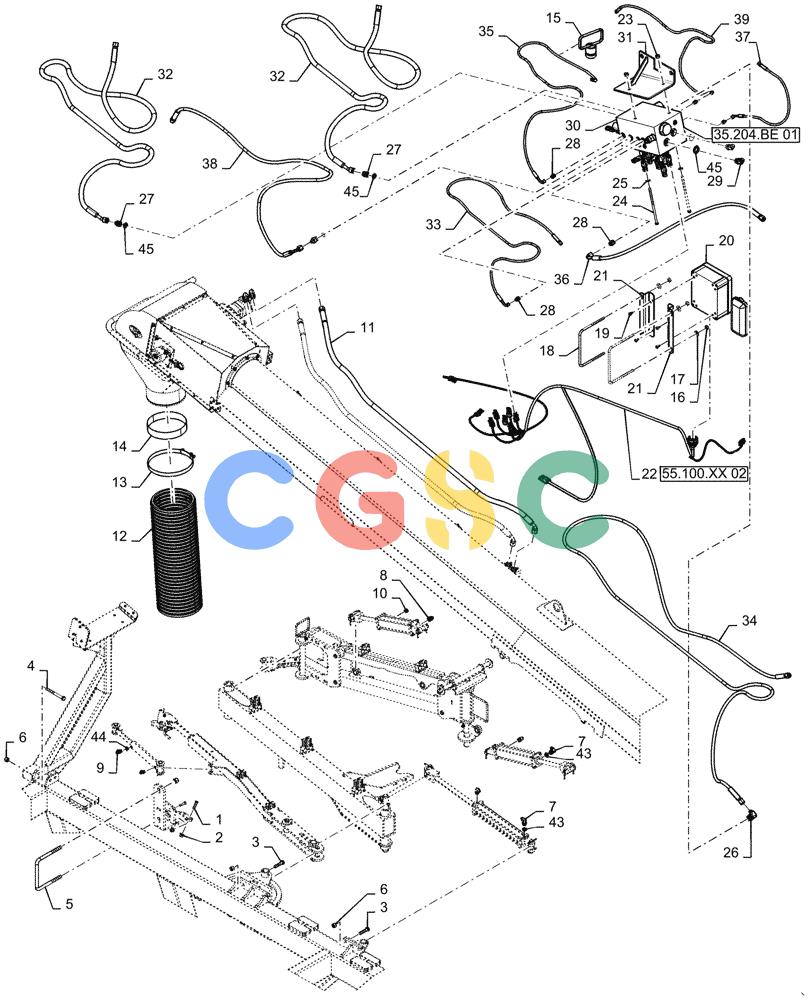

| 1. |
86512463
|
[5] |
SCREW,Phillips Drive, Flat HD, M6 x 25mm, Cl 4.8
|
GI
|
| 2. |
12578015
|
[5] |
NUT,M5 x .5, Flg
|
JES
|
| 3. |
355259
|
[11] |
BOLT,Hex, M16 x 65, 8.8
|
ZED
|
| 4. |
362573
|
[2] |
BOLT,Hex, M16 x 150mm, Cl 8.8
|
NH
|
| 5. |
47534143
|
[1] |
U-BOLT,M16 x 2, Square, 180mm W x 175mm L
|
SAS
|
| 6. |
146988
|
[15] |
LOCK NUT,M16 x 2, Cl 8
|
BER
Superseded by part number: 86000441
|
| 7. |
76347
|
[4] |
ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB
|
NH
Incl 43 Superseded by part number: 87329788
|
| 8. |
84313
|
[1] |
ELBOW,45 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring
|
WIN
|
| 9. |
76344
|
[2] |
90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB
|
NH
Incl 44
|
| 10. |
9479
|
[1] |
PLUG
|
SAS
|
| 11. |
47867362
|
[2] |
HOSE
|
SAS
3/4" x 120"
|
| 12. |
47875567
|
[1] |
TUBE
|
SAS
Auger Discharge
|
| 13. |
47875568
|
[1] |
CLAMP
|
SAS
Hose
|
| 14. |
47876148
|
[1] |
STEP
|
SAS
Slip Tape
|
| 15. |
84583373
|
[1] |
SUPPORT
|
SAS
Hose Guide
|
| 16. |
9706690
|
[4] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 17. |
86625263
|
[4] |
WASHER,9mm ID x 20mm OD x 1.6mm Thk
|
ZED
|
| 18. |
47818624
|
[2] |
U-BOLT
|
SAS
M8
|
| 19. |
8258
|
[8] |
SELF-TAP SCREW,Phillips Drive, Pan Head, #8 - 32 x 3/8"
|
FLX
|
| 20. |
84536987
|
[1] |
PACKAGE
|
SAS
|
| 21. |
47705045
|
[2] |
BRACKET
|
SAS
Reciever
|
| 22. |
47697609
|
[1] |
WIRE HARNESS
|
SAS
Air Cart Superseded by part number: 47960646
|
| 23. |
86629542
|
[2] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 24. |
412110
|
[2] |
BOLT,Hex, M8 x 1.25 x 170mm, Cl 8.8
|
NH
Superseded by part number: 8900129024
|
| 25. |
83918746
|
[2] |
WASHER,0.34" ID x 0.69" OD x 0.07" Thk
|
FOR
Superseded by part number: 44722S36
|
| 26. |
367841A1
|
[1] |
ELBOW
|
CAS
Orifice
|
| 27. |
322896
|
[2] |
HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC
|
BHB
Incl 45
|
| 28. |
84555687
|
[6] |
HYD CONNECTOR
|
SAS
|
| 29. |
330344
|
[2] |
45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB
|
WIN
Incl 45
|
| 30. |
84556425
|
[1] |
VALVE
|
SAS
|
| 31. |
47734997
|
[1] |
SUPPORT
|
SAS
Valve Mount
|
| 32. |
47868196
|
[2] |
HOSE
|
SAS
19 x 6490 Superseded by part number: 47864537
|
| 33. |
47869646
|
[1] |
HOSE
|
SAS
10 x 6960
|
| 34. |
47870054
|
[1] |
HOSE
|
SAS
10 x 7560
|
| 35. |
47870055
|
[1] |
HOSE
|
SAS
10 x 5510
|
| 36. |
47870970
|
[1] |
HOSE
|
SAS
10 x 1290
|
| 37. |
47870974
|
[1] |
HOSE
|
SAS
10 x 1550
|
| 38. |
47870406
|
[1] |
HOSE
|
SAS
10 x 3420
|
| 39. |
47870967
|
[1] |
HOSE
|
SAS
10 x 3830
|
| 40. |
47686594
|
[1] |
MOTOR-PUMP
|
SAS
8.0 Cu" 1" Shaft
|
| 41. |
47878804
|
[1] |
BELT
|
SAS
BELT, 16" 2-PLY ULTIMATE CRESCENT,SKIVED Belt
|
| 42. |
47879298
|
[1] |
BELT
|
SAS
BELT, PVG CLEATED, 16"X46' 4"
|
| 43. |
128825
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
NH
|
| 44. |
9617873
|
[1] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
NH
|
| 45. |
167266
|
[1] |
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
|
NH
|
