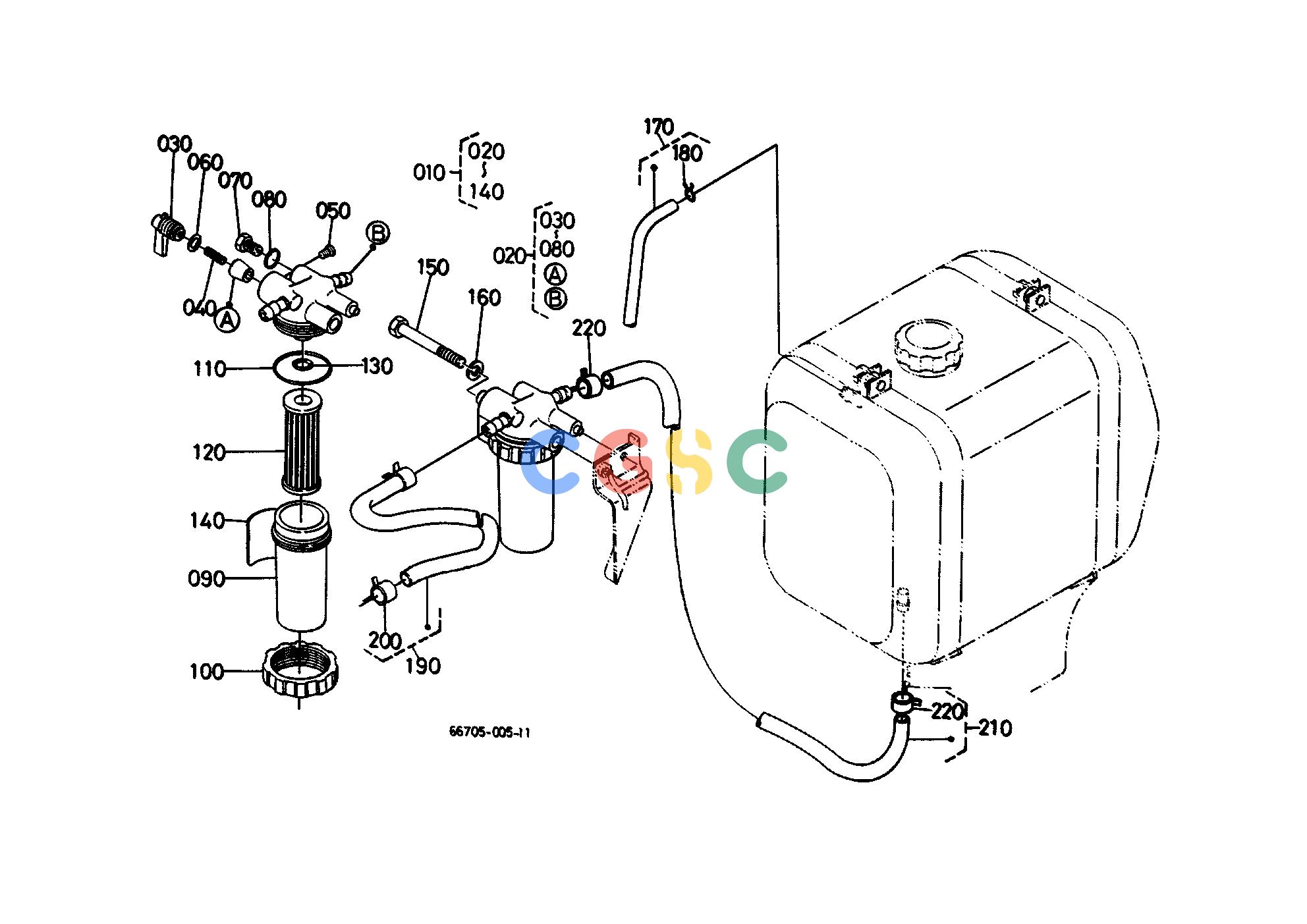

久保田零件查询T02600 FUEL FILTER FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
646 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1537243010
|
[1] |
ASSY FILTER FUEL
|
0.0000(lbs); 0.000
|
| 020. |
1526143110
|
[1] |
COMP.BODY COCK
|
0.6600(lbs); 0.300
|
| 030. |
1430143522
|
[1] |
LEVER COCK
|
0.0528(lbs); 0.024
|
| 040. |
1430143820
|
[1] |
SPRING VALVE
|
0.0022(lbs); 0.001
|
| 050. |
1430143830
|
[1] |
SCREW
|
0.0022(lbs); 0.001
|
| 060. |
1430143840
|
[1] |
O RING LEVER
|
0.0022(lbs); 0.001
|
| 070. |
1523143283
|
[2] |
SCREW AIR BREATHER
|
0.0066(lbs); 0.003
|
| 080. |
0481000060
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
1500034832
|
[1] |
CUP FILTER
|
0.1540(lbs); 0.070
|
| 100. |
1430143590
|
[1] |
RING RETAINING
|
0.1188(lbs); 0.054
|
| 110. |
1430143650
|
[1] |
O RING FILTER
|
0.0022(lbs); 0.001
|
| 120. |
1523143560
|
[1] |
ASSY ELEMENT
|
0.0660(lbs); 0.030
|
| 130. |
0481100100
|
[1] |
O RING FILTER
|
0.0022(lbs); 0.001
|
| 140. |
6670658310
|
[1] |
LABEL FUEL FILTER
|
0.0022(lbs); 0.001
|
| 150. |
0115350865
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 160. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 170. |
1537142050
|
[1] |
ASSY PIPE OVER FLOW
|
0.0352(lbs); 0.016
|
| 180. |
1024442320
|
[2] |
CLIP PIPE
|
0.0022(lbs); 0.001
|
| 190. |
6670458300
|
[1] |
ASSY PIPE FUEL
|
0.0550(lbs); 0.025
|
| 200. |
1491142750
|
[2] |
CLIP PIPE
|
0.0044(lbs); 0.002
|
| 210. |
6713635610
|
[1] |
ASSY TUBE FUEL
|
0.1100(lbs); 0.050
|
| 220. |
1491142750
|
[2] |
CLIP PIPE
|
0.0044(lbs); 0.002
|
