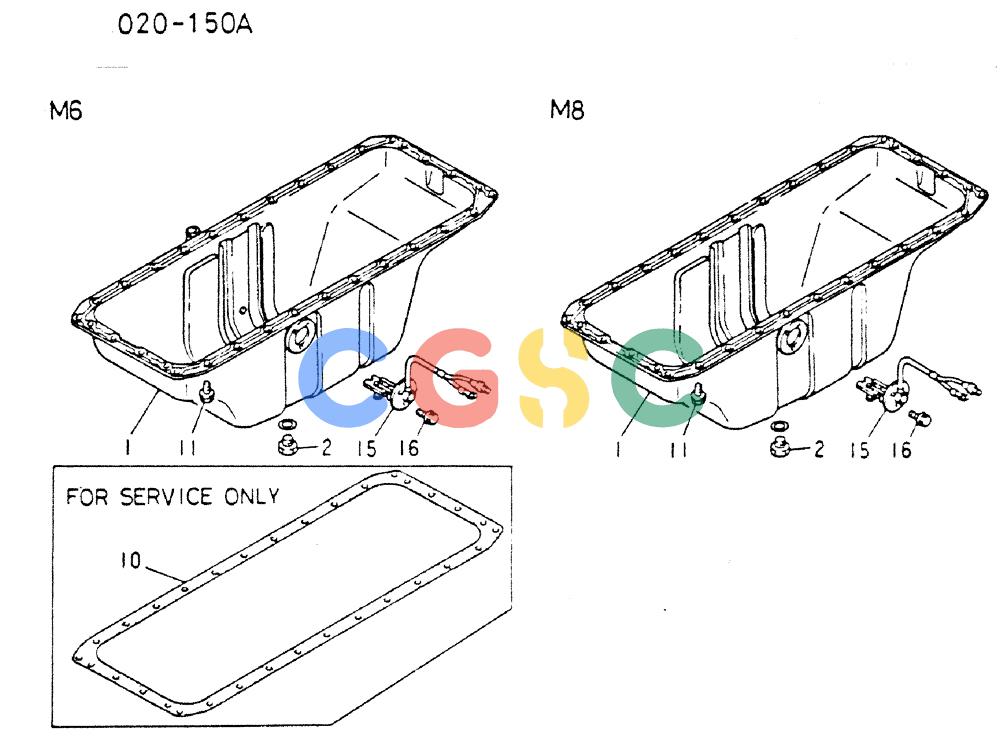

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-004) - OIL PAN 020-150A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
427 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME088657 | [1] | SUMP | KOBPAN, OIL, Start Serial: 9004- |
| . . | VAME088476 | [1] | PAN, OIL, Serial Range: 8910--9003 | |
| . . | NSS | [1] | NOT SOLD SEPARAT | CONPAN, OIL, Serial Range: --8909 |
| . . | VAME088694 | [1] | M8 ONLY | |
| 2. | VAMH037126 | [1] | PLUG,18mm OD x 1.5 Thd Pitch | KOBPLUG, DRAIN |
| . . | VAMH035018 | [1] | GASKET | KOBGASKET 18 |
| 10. | VAME088179 | [1] | GASKET | KOBT = 1.6 FOR SERVICE ONLY Superseded by part number: VAME300519 |
| 11. | VAMF140223 | [32] | BOLT | KOBBOLT, FLANGE 8 X 16 |
| 15. | VAMC840577 | [1] | SWITCH | KOBSENSOR, OIL LEVEL |
| 16. | VAMF140002 | [3] | SCREW | KOBBOLT, FLANGE 6 X 10, Start Serial: 8710- |
| . . | VAMF243622 | [3] | BOLT | KOBB0LT, W/WSR 6 X 12, Serial Range: --8709 |
