神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-010) - ROCKER COVER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
951 次

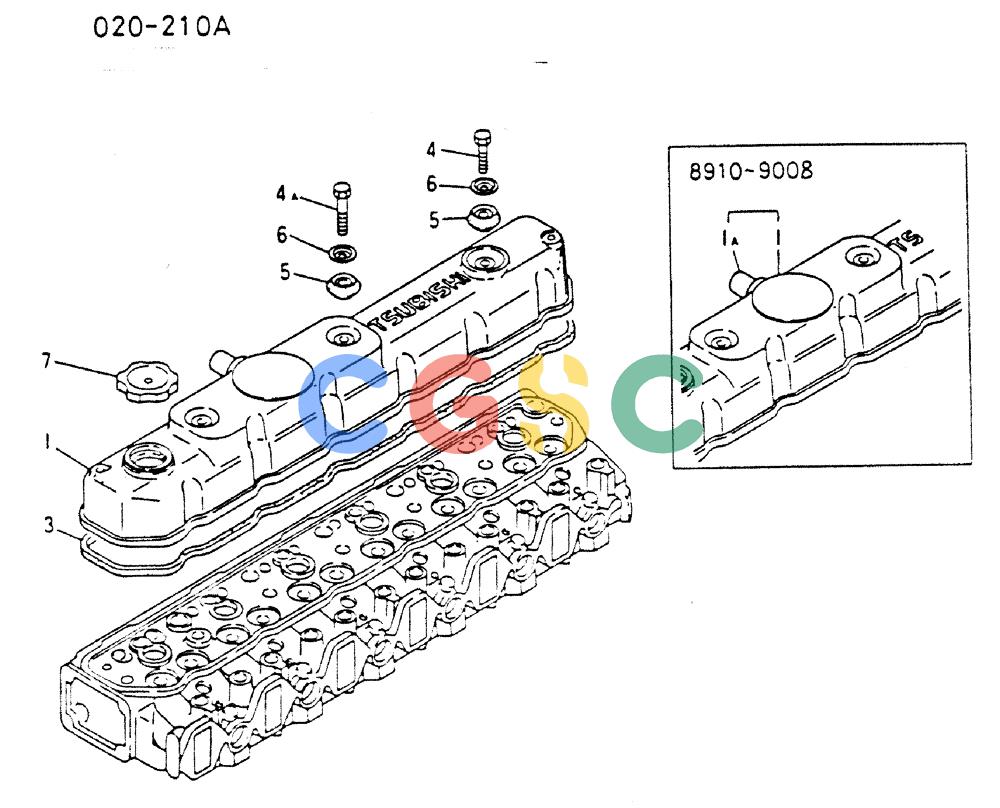

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-1A. | VAME081634 | [1] | COVER | KOBASSY, Serial Range: 8910--9008 |
| 1. | VAME081674 | [1] | COVER | KOBROCKER, Start Serial: 9009- |
| . . | VAME081672 | [1] | ROCKER COVER SUB ASSY, Serial Range: 8910--9008 | |
| . . | VAME081527 | [1] | COVER | KOB, Serial Range: --8909 |
| 1A. | VAME081602 | [1] | JOINT, BREATHER, Serial Range: 8910--9008 | |
| 3. | VAME081522 | [1] | GASKET | KOB Superseded by part number: VAME088985 |
| 4. | VAMF104864 | [1] | BOLT | KOBBOLT 8 X 45 |
| 4A. | VAMF104867 | [2] | BOLT | KOBBOLT 8 X 60 |
| 5. | VAME011282 | [3] | RUBBER SLEEVE | KOBISOLATION |
| 6. | VAME011281 | [3] | PLATE | KOB |
| 7. | VAMD008784 | [1] | CAP | KOBOIL FILLER Superseded by part number: VA1250A015 |
