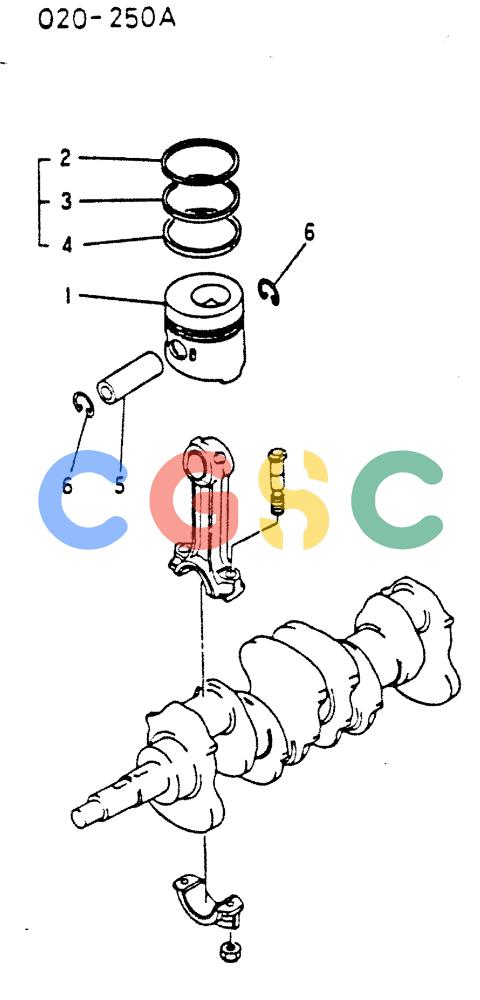

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-011) - PISTON Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
770 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME012858 | [6] | PISTON | KOBSTD M1 ONLY |
| . . | VAME012858 | [6] | PISTON | KOBSTD M2 ONLY |
| . . | VAME012859 | [1] | PISTON | KOBOS |
| . . | VAME012860 | [1] | PISTON | KOB |
| . . | VAME012861 | [1] | PISTON | KOBOS 0.75 |
| . . | VAME012862 | [1] | MANIFOLD OS 1.00 | MANIFOLD OS 1.00 |
| 2-4. | VAME999836 | [1] | PISTON RINGS KIT | KOBPISTON RING SET, ONE MODEL STD M1 ONLY Superseded by part number: VAME997458 |
| . . | VAME997458 | [1] | PISTON RINGS KIT | KOBSTD, ONE MODEL M2 ONLY |
| . . | VAME999836 | [1] | PISTON RINGS KIT | KOBPISTON, ONE MODEL M2 ONLY Superseded by part number: VAME997458 |
| . . | VAME999837 | [1] | PISTON RING | KOBPISTON, OS, ONE MODEL |
| . . | VAME997459 | [1] | RING, SET | KOBPISTON RING SET, ONE MODEL, OS 0.25 |
| . . | VAME999838 | [1] | PISTON RING | KOBPISTON, ONE MODEL, OS Superseded by part number: VAME997460 |
| . . | VAME997460 | [1] | PISTON RING | KOBPISTON RING SET, ONE MODEL OS 0.50 |
| . . | VAME999839 | [1] | PISTON RING SET, ONE MODEL OS 0.75 | |
| . . | VAME997461 | [1] | SET OF RINGS | KOBPISTON RING SET, ONE MODEL OS 0.75 |
| . . | VAME999840 | [1] | RING SET,PISTON ONE MODEL, OS 1.00 | RING SET,PISTON ONE MODEL, OS 1.00 |
| . . | VAME997462 | [1] | RING, SET | KOBPISTON RING SET, ONE MODEL OS 1.00 |
| 2. | VAME012011 | [6] | RING, COMPRESSION NO. 1 STD ME012011 | |
| 3. | VAME012021 | [6] | RING, COMPRESSION NO. 2 STD M1 ONLY ME012021 | |
| . . | VAME013892 | [6] | RING, COMPRESSION NO. 2 STD M2 ONLY ME013892 | |
| 4. | VAME012848 | [6] | RING, OIL STD M1 ONLY ME012848 | |
| . . | VAME012848 | [6] | RING, OIL STD M2 ONLY ME012848 | |
| 5. | VAME012009 | [6] | PISTON PIN | KOB |
| 6. | VAME012061 | [12] | SNAP RING | KOB Superseded by part number: VAME015917 |
