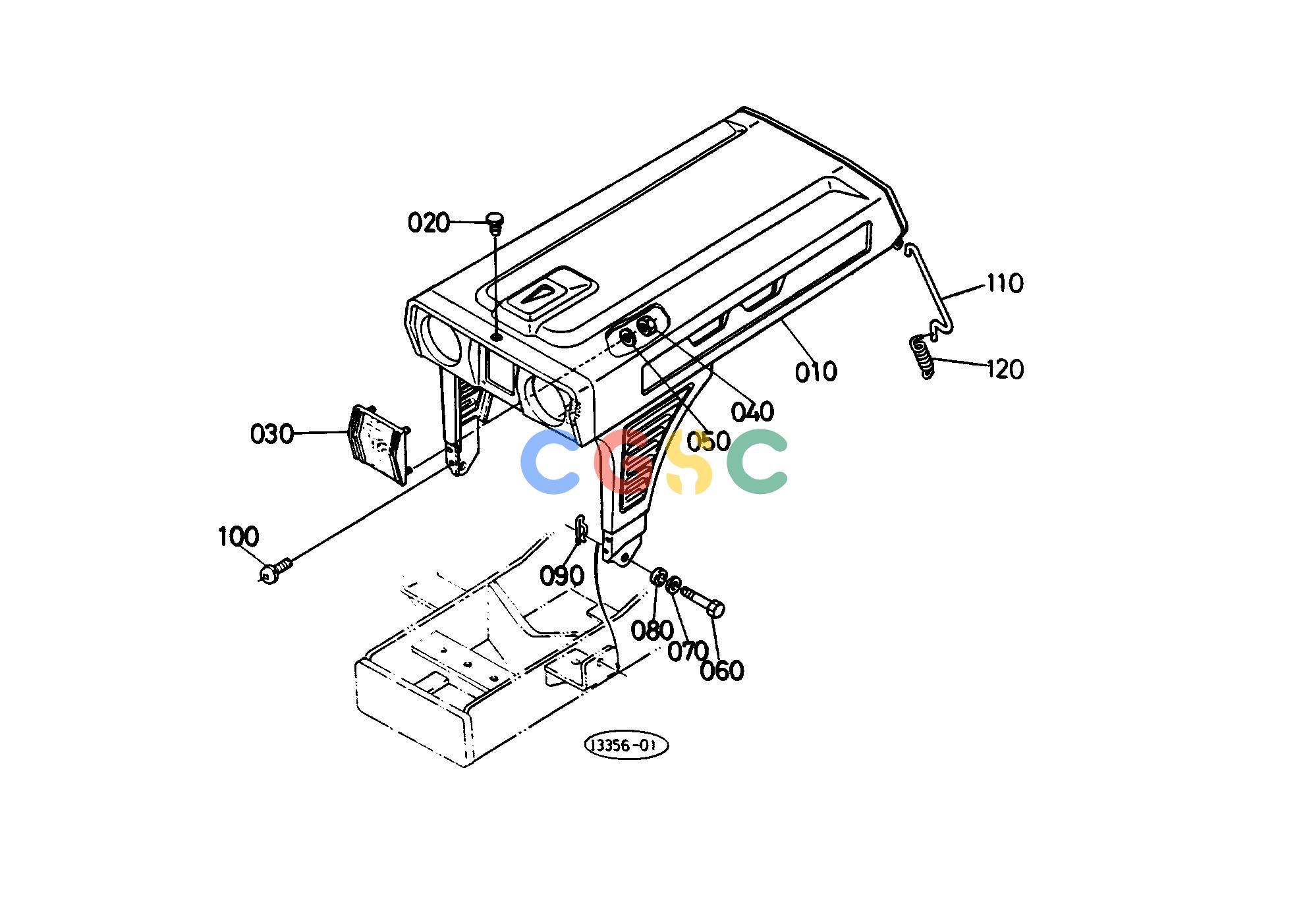

久保田零件查询T08200 HOOD HOOD (BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
653 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6673254110
|
[1] |
BONNET
|
13.8600(lbs); 6.300
|
| 020. |
6376352580
|
[1] |
RUBBER HANDLE COVER
|
0.0022(lbs); 0.001
|
| 030. |
6671154140
|
[1] |
MASCOT
|
0.1980(lbs); 0.090
|
| 040. |
0201450060
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 050. |
0451250060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 060. |
6671154150
|
[2] |
BOLT
|
0.0572(lbs); 0.026
|
| 070. |
0401550100
|
[2] |
WASHER PLAIN
|
0.0396(lbs); 0.018
|
| 080. |
3415018180
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
| 090. |
0551551000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 100. |
0300450812
|
[4] |
SCREW WITH WASHER
|
0.0176(lbs); 0.008
|
| 110. |
6675155210
|
[2] |
HOOK BONNET
|
0.0880(lbs); 0.040
|
| 120. |
6671155220
|
[2] |
SPRING
|
0.0220(lbs); 0.010
|
