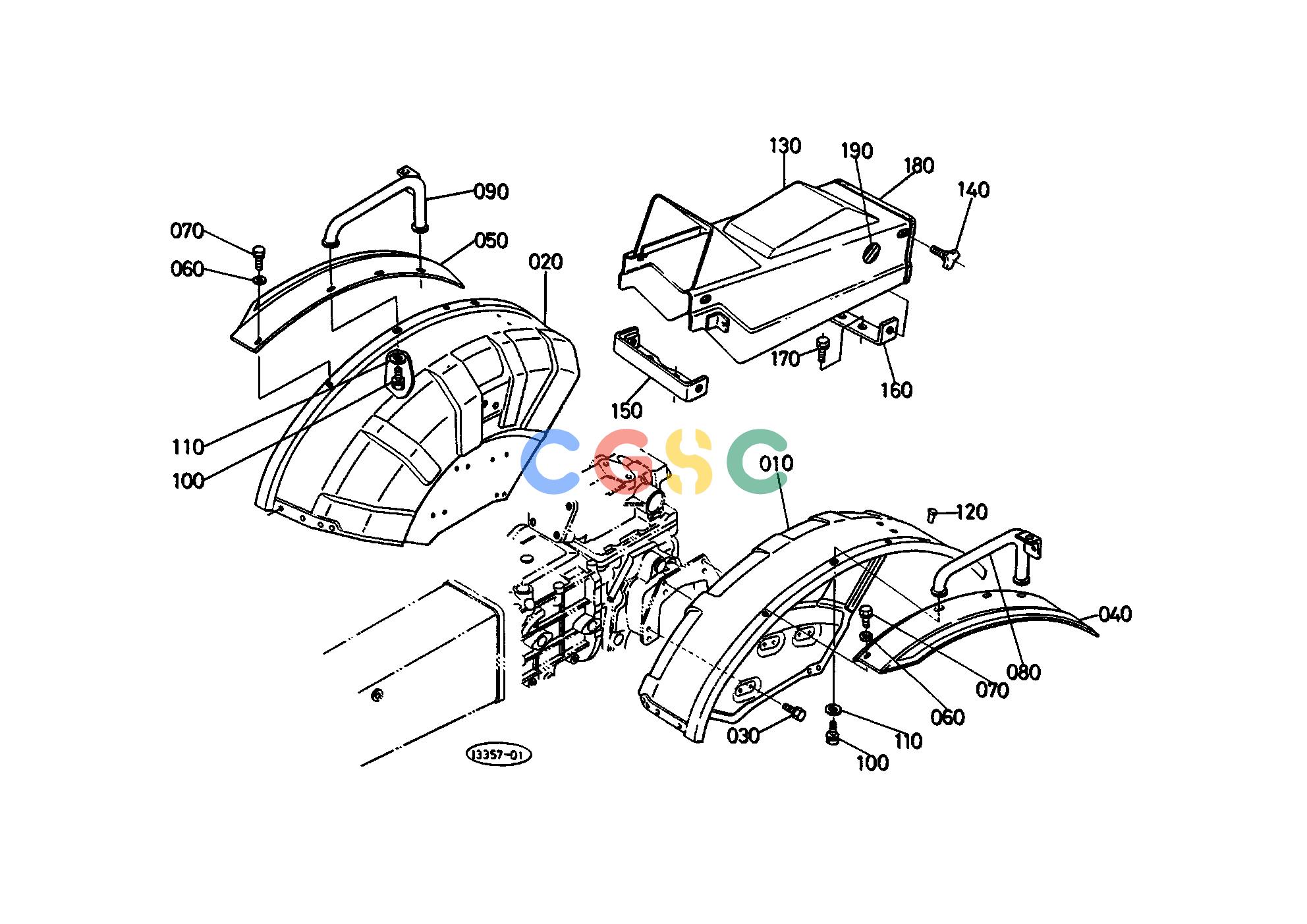

久保田零件查询T08300 FENDER HOOD (BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
476 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6672752710
|
[1] |
FENDER LH
|
9.3500(lbs); 4.250
|
| 020. |
6672752720
|
[1] |
FENDER RH
|
12.1000(lbs); 5.500
|
| 030. |
0112350818
|
[8] |
BOLT
|
0.0264(lbs); 0.012
|
| 040. |
6661252730
|
[1] |
FENDER EXTENSION LH
|
1.2760(lbs); 0.580
|
| 050. |
6661252740
|
[1] |
FENDER EXTENSION RH
|
1.3200(lbs); 0.600
|
| 060. |
0401350060
|
[6] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 070. |
0120250614
|
[6] |
BOLT
|
0.0132(lbs); 0.006
|
| 080. |
6661252750
|
[1] |
RAIL LH
|
0.5280(lbs); 0.240
|
| 090. |
6661252760
|
[1] |
RAIL RH
|
0.5280(lbs); 0.240
|
| 100. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 110. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 120. |
3824029570
|
[6] |
PLUG
|
0.0022(lbs); 0.001
|
| 130. |
6620453110
|
[1] |
COVER SUB
|
4.2900(lbs); 1.950
|
| 140. |
0182050615
|
[4] |
BOLT KNOB
|
0.0374(lbs); 0.017
|
| 150. |
6620453130
|
[1] |
STAY FRONT
|
0.3520(lbs); 0.160
|
| 160. |
6620453140
|
[1] |
STAY REAR
|
0.1980(lbs); 0.090
|
| 170. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 180. |
6620453150
|
[1] |
TRIM SASH
|
0.0440(lbs); 0.020
|
| 190. |
6620447140
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
