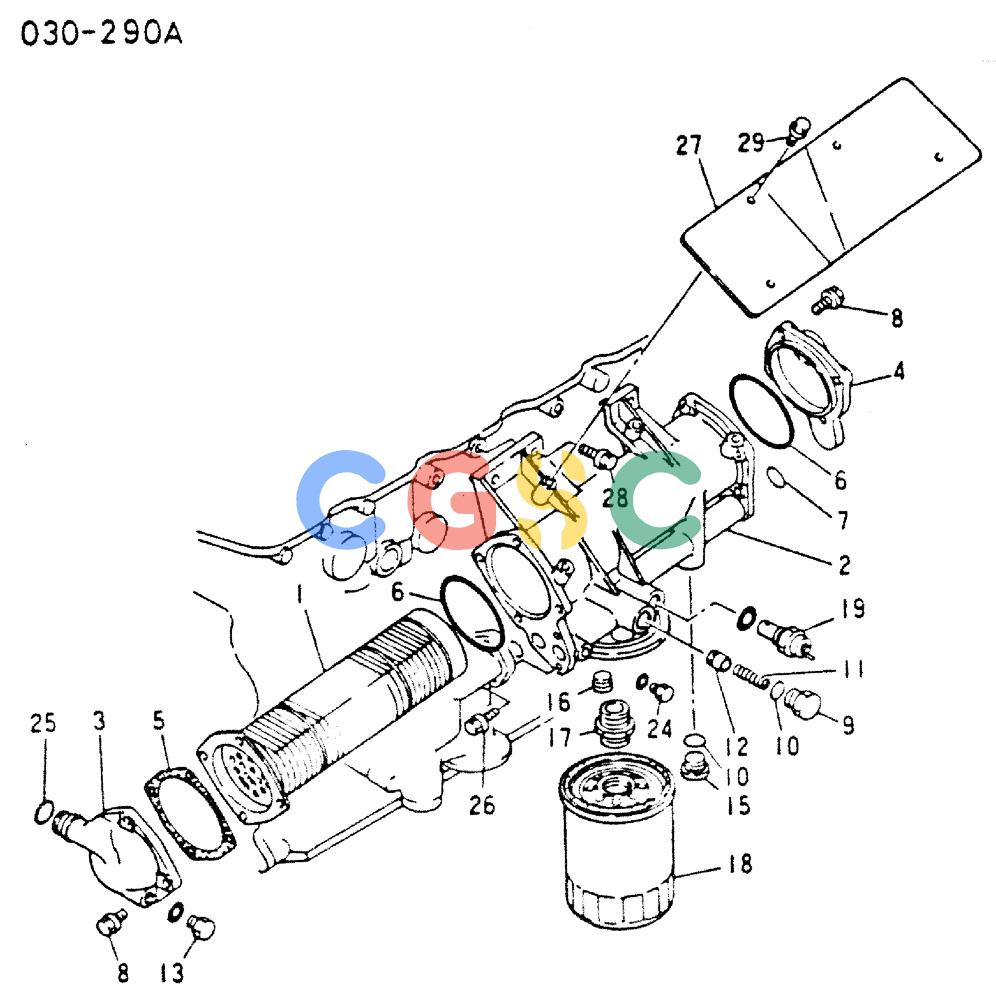

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-047) - OIL COOLER 030-290A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
553 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-19. | VAME084531 | [1] | COOLER ASSY. | KOB Superseded by part number: VAME304516 |
| 1. | VAME084532 | [1] | OIL COOLER FILTER | KOB |
| 2. | VAME084533 | [1] | SHELL | KOBOIL |
| 3. | VAME084534 | [1] | COVER | KOB |
| 4. | VAME084535 | [1] | COVER | KOB |
| 5. | VAME084536 | [1] | GASKET | KOB Superseded by part number: VAME353144 |
| 6. | VAME084537 | [2] | O-RING | KOB80 |
| 7. | VAMH035091 | [1] | O-RING | KOBO-RING 22 |
| 8. | VAMF140025 | [8] | SCREW | KOBBOLT, FLANGE 8 X 20 |
| 9. | VAME014717 | [1] | PINION | KOB Superseded by part number: 240099A1 |
| 10. | VAMH035044 | [2] | O-RING | KOBO-RING Superseded by part number: 240098A1 |
| 11. | VAME084526 | [1] | SPRING | KOBBY-PASS VALVE |
| 12. | VAME084527 | [1] | VALVE PRESSURE RELIE | KOB Superseded by part number: 240095A1 |
| 13. | VAME084528 | [1] | PLUG | KOB |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 15. | VAMH037117 | [1] | PLUG | KOBPLUG |
| 16. | VAMF665103 | [1] | PLUG PLUG PT3/8 | PLUG PLUG PT3/8 |
| 17. | VAME084529 | [1] | HYD CONNECTOR | KOB |
| 18. | VAME088519 | [1] | ELEMENT | KOBOIL, Start Serial: 8908- Superseded by part number: 2451U333-1 |
| . . | VAME084530 | [1] | ELEMENT | KOBOIL FILTER, Serial Range: --8907 Superseded by part number: 2451U333-1 |
| 19. | VAME040217 | [1] | BUZZER | KOBOIL BY-PASS |
| . . | VAMF660068 | [1] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 24. | VAME031088 | [1] | PLUG | KOBPLUG |
| 25. | VAMH035680 | [1] | O-RING | KOBO-RING 22.1, Start Serial: 9011- |
| . . | VAMF520016 | [1] | O-RING | KOBO-RING 22.1, Serial Range: --9010 |
| 26. | VAMF140225 | [2] | BOLT | KOBBOLT, FLANGE 8 X 20 |
| 27. | VAME084518 | [1] | INSULATOR | KOBO/C |
| 28. | VAMH000714 | [3] | BOLT | KOBBOLT, FLANGE 10 X 25 |
| 29. | VAMF140221 | [4] | BOLT | KOBBOLT, FLANGE 8 X 12 |
