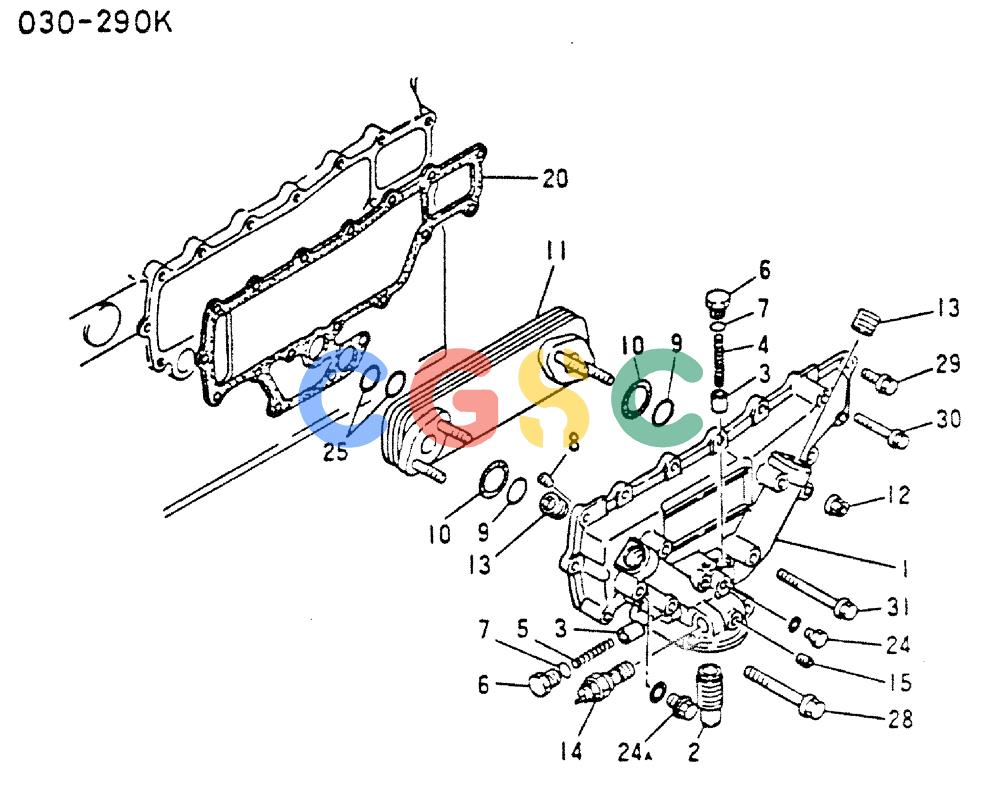

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-048) - OIL COOLER 030-290K Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
960 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-15. | VAME088521 | [1] | OIL COOLER | KOBOIL COOLER ASSY |
| 1-7. | VAME084626 | [1] | BODY | KOBBODY ASSY |
| 1. | VAME084627 | [1] | BODY | |
| 2. | VAME013354 | [1] | KNUCKLE JOINT | KOBINSERT |
| 3. | VAME013359 | [2] | VALVE | KOBVALVE |
| 4. | VAME084628 | [1] | SPRING | KOBSPRING |
| 5. | VAME013358 | [1] | SPRING | KOBSPRING |
| 6. | VAME034554 | [2] | PLUG | KOBPLUG |
| 7. | VAMF520009 | [2] | O-RING | KOBO-RING 14 |
| 8. | VAME013355 | [1] | PLUG | KOBPLUG |
| 9. | VAMH035177 | [2] | O-RING | KOBO-RING 22.5 |
| 10. | VAME013362 | [2] | GASKET | KOBGASKET |
| 11. | VAME013360 | [1] | ELEMENT | KOBCORE ASSY |
| 12. | VAME013357 | [4] | NUT | KOBNUT |
| 13. | VAMS661124 | [2] | PLUG PT 3/4 | |
| 14. | VAME084614 | [1] | VALVE | KOBVALVE ASSY |
| 15. | VAME084615 | [1] | PLUG | KOBPLUG |
| 20. | VAME013687 | [1] | GASKET | KOBGASKET, OIL COOLER |
| 24. | VAME031088 | [1] | PLUG | KOBPLUG 10 |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 24A. | VAMH037759 | [1] | PLUG | KOBPLUG, DRAIN 14 |
| . . | VAMF660065 | [1] | GASKET | KOBGASKET 14 |
| 25. | VAMH035177 | [2] | O-RING | KOBO-RING 30 |
| 28. | VAMH000737 | [2] | BOLT | KOBBOLT, FLANGE 10 X 90 |
| 29. | VAMF140227 | [8] | FLANGE BOLT | KOBBOLT, FLANGE 8 X 25 |
| 30. | VAMF140236 | [5] | BOLT | KOBBOLT, FLANGE 8 X 55 Superseded by part number: VAMF140235 |
| 31. | VAMF140244 | [3] | BOLT | KOBBOLT, FLANGE 8 X 90 |
