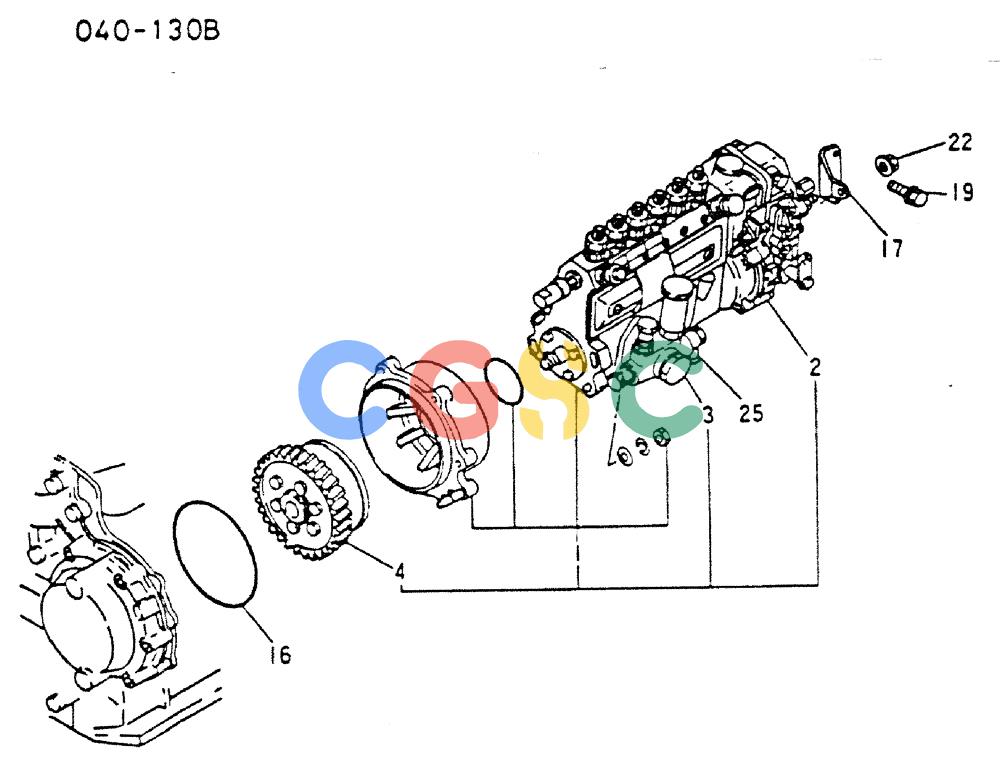

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-049) - FUEL INJECTION PUMP GENERAL 040-130B Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
821 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-4. | VAME088503 | [1] | FUEL INJECTION PUMP | KOBGENERAL ASSY ZXL 1016916120 |
| 1. | VAME726478 | [1] | INJECTION PUMP ASSY A TYPE CF GN040-131A | |
| 2. | VAME727073 | [1] | GOVERNOR ASSY RSV TYPE CF GN040-1320 | |
| 3. | VAME717104 | [1] | PUMP | KOBFUEL FEED ASSY CF GN040-133A |
| 4. | VAME723275 | [1] | TIMER | KOBASSY CF GN040-134A |
| 16. | VAMF520423 | [1] | O-RING | KOBO-RING 135 Superseded by part number: VAF315313500 |
| 17. | VAME018180 | [1] | BRACKET | KOBBRACKET, I/P |
| 19. | VAMH000713 | [2] | BOLT | KOBBOLT, FLANGE 10 X 20 |
| 22. | VAMF434105 | [1] | NUT | KOBNUT, FLANGE 10 |
| 25. | VAMH037116 | [1] | FLEXIBLE JOINT | KOBJOINT, SWIVEL |
