神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-058) - FUEL FILTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
344 次

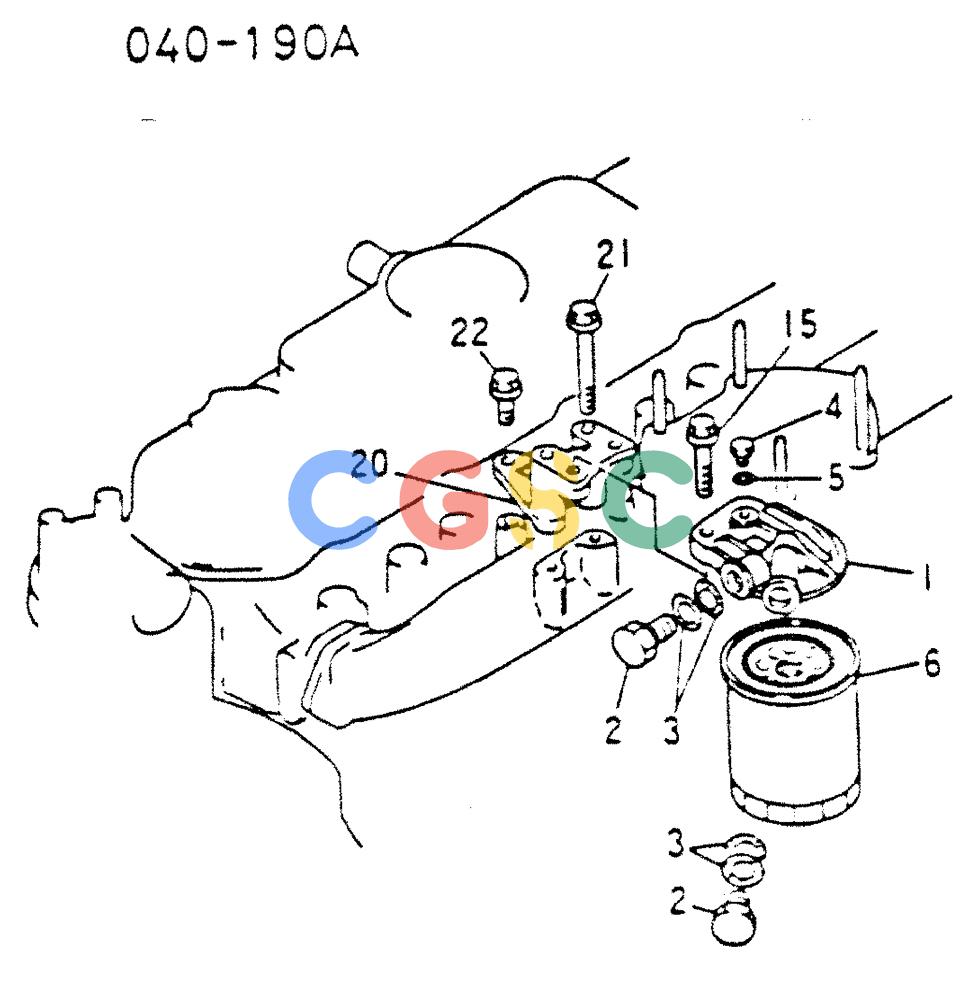

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-6. | VAME035396 | [1] | FUEL FILTER | KOBASSY, Start Serial: 8708- Superseded by part number: 77269152, VAME072903 |
| . . | VAME035735 | [1] | FILTER ASSY FUEL, Serial Range: --8707 | FILTER ASSY FUEL, Serial Range: --8707 |
| 1. | VAME035672 | [1] | CYLINDER HEAD | KOBFUEL FILTER Superseded by part number: VAME307274 |
| 2. | VAMH037087 | [2] | BOLT | KOBBOLT, CONNECTOR |
| 3. | VAMH035166 | [4] | GASKET | KOBGASKET 14 Superseded by part number: 133378A1 |
| 4. | VAMH037084 | [1] | GLOW PLUG | KOBPLUG, AIR Superseded by part number: 77270641, VAME016894 |
| 5. | VAMH035164 | [1] | GASKET | KOBGASKET 8 Superseded by part number: 133379A1 |
| 6. | VAME035393 | [1] | ELEMENT | KOB, Start Serial: 8708- Superseded by part number: 47500495 |
| . . | VAME035829 | [1] | ELEMENT FUEL FILTER, Serial Range: --8707 | ELEMENT FUEL FILTER, Serial Range: --8707 |
| 15. | VAMH000707 | [2] | BOLT | KOBBOLT, FLANGE 10 X 30 |
| 20. | VAME088660 | [1] | BRACKET, FUEL FILTER, Start Serial: 9006- | |
| . . | VAME088472 | [1] | BRACKET, FUEL FILTER, Serial Range: --9005 | |
| 21. | VAMH000836 | [2] | BOLT | KOBBOLT, FLANGE 10 X 75 |
| 22. | VAMH000714 | [1] | BOLT | KOBBOLT, FLANGE 10 X 25 |
