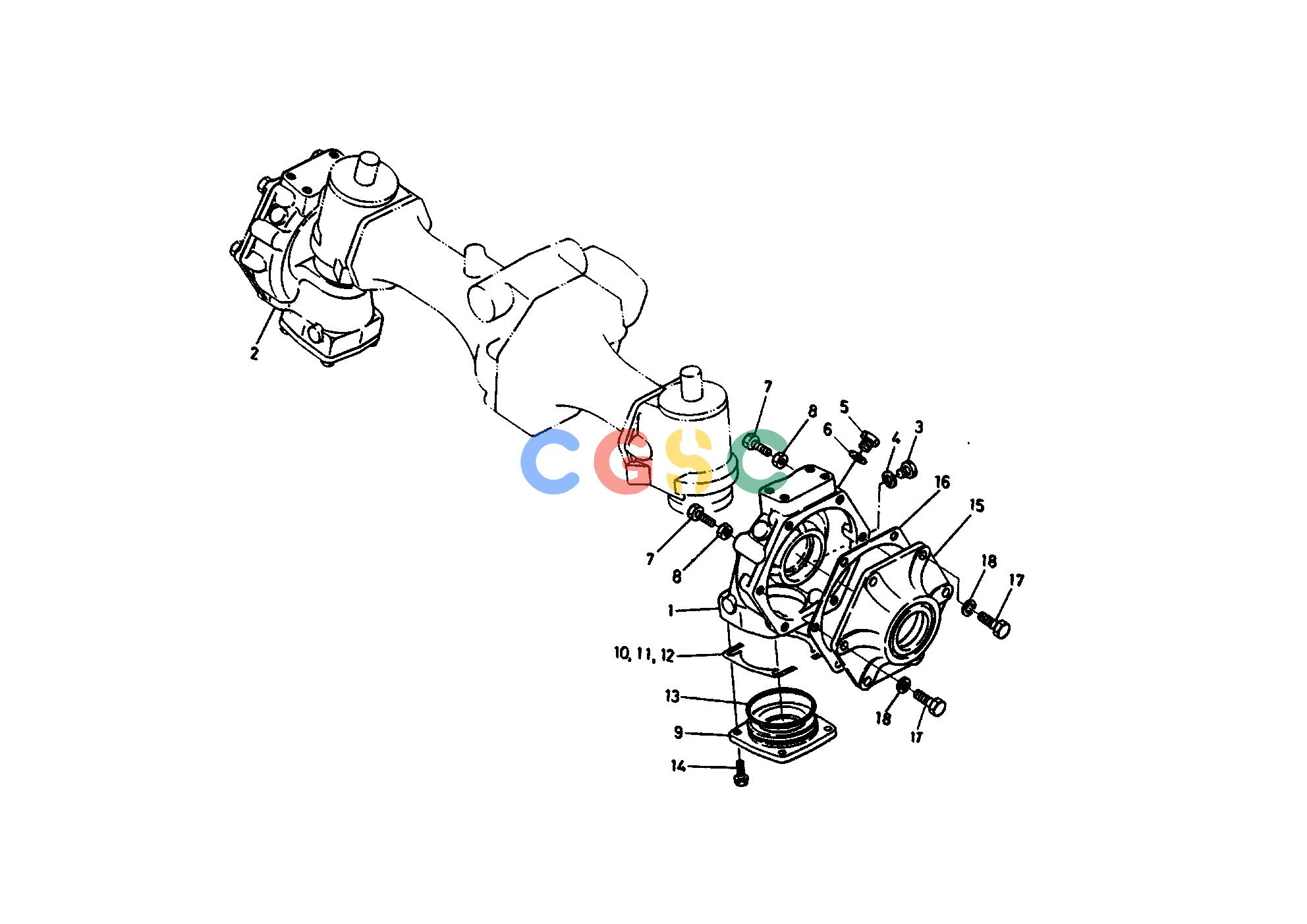

久保田零件查询T06400 FRONT AXLE CASE [DP] OLD TYPE FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
220 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6712156310
|
[1] |
CASE FRONT AXLE LH
|
9.6800(lbs); 4.400
|
| 002. |
6712156320
|
[1] |
CASE FRONT AXLE RH
|
0.0000(lbs); 0.000
|
| 003. |
0633135010
|
[2] |
PLUG
|
0.0264(lbs); 0.012
|
| 004. |
0471701000
|
[2] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 005. |
0633135012
|
[2] |
PLUG
|
0.0528(lbs); 0.024
|
| 006. |
0471701200
|
[2] |
WASHER SEAL
|
0.0044(lbs); 0.002
|
| 007. |
6659156440
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 008. |
0211250100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 009. |
6712156330
|
[2] |
COVER BEVEL SUPPORT
|
1.4740(lbs); 0.670
|
| 010. |
6712156340
|
[4] |
SHIM 4
|
0.0088(lbs); 0.004
|
| 011. |
6712156350
|
[4] |
SHIM 5
|
0.0000(lbs); 0.000
|
| 012. |
6712156360
|
[4] |
SHIM 6
|
0.0022(lbs); 0.001
|
| 013. |
0481150750
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 014. |
0112350825
|
[8] |
BOLT
|
0.0286(lbs); 0.013
|
| 015. |
6620456370
|
[2] |
COVER FRONT AXLE
|
5.7200(lbs); 2.600
|
| 016. |
6712156380
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 017. |
0115351028
|
[12] |
BOLT
|
0.0440(lbs); 0.020
|
| 018. |
0451250100
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
