神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (05-012) - BOX ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
935 次

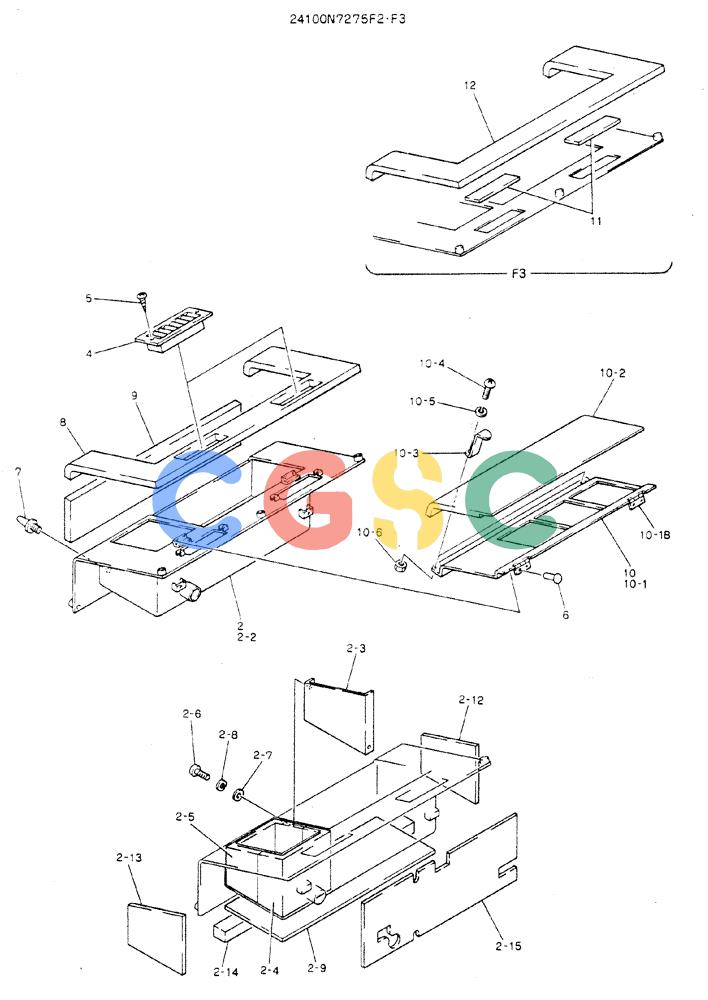

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N7275F2 | [1] | BOX ASSY | |
| . . | 24100N7275F3 | [1] | BOX | KOB |
| 2. | 24100N7276F2 | [1] | BOX ASSY | |
| 2-2. | 2414N4839 | [1] | BOX | |
| 2-3. | 2418P24751 | [1] | PLATE | |
| 2-4. | 2414P8156 | [1] | CASE | |
| 2-5. | 2414P8157 | [1] | CASE | |
| 2-6. | ZS31C05010 | [4] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 2-7. | ZW16P05000 | [4] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 2-8. | ZW26X05000 | [4] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 2-9. | 2479Z2343 | [1] | INSULATOR | |
| 2-12. | 2479Z2592 | [1] | INSULATOR | |
| 2-13. | 2479Z2593 | [1] | INSULATOR | |
| 2-14. | 2479Z2214 | [1] | INSULATOR | |
| 2-15. | 2479Z2689 | [1] | INSULATOR | |
| 4. | 2427Z1360 | [2] | GRILLE | KOBF2 ONLY |
| 5. | ZS41C05016 | [4] | SCREW,M5 x 16mm | KOBM05x0.8x16mm, (F2 Only) |
| 6. | 2420Z1192 | [4] | RIVET | KOBRIVET |
| 7. | 2432R236 | [3] | CLIP | KOBASSY |
| 8. | 2427R1309 | [1] | INSULATING PANEL | KOBF2 ONLY Superseded by part number: 2427R1499 |
| 9. | 2427R1310 | [1] | FOAM INSULATION | KOB |
| 10. | 24100P3573F1 | [1] | COVER | KOB |
| 10-1. | 2414P8655 | [1] | COVER | KOB |
| 10-1B. | 2420Z1191 | [2] | HINGE | KOB |
| 10-2. | 2427R1313 | [1] | FOAM INSULATION | KOB |
| 10-3. | 24100T776F1 | [2] | SUPPORT | KOB |
| 10-4. | ZS31C05010 | [4] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 10-5. | ZW26X05000 | [4] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 10-6. | ZN18C05004 | [4] | NUT | KOBM05x0.8mm |
| 11. | 2418Z753 | [2] | PLATE F3 ONLY | |
| 12. | 2427R1311 | [1] | INSULATION, HEAT F3 ONLY | INSULATION, HEAT F3 ONLY |
