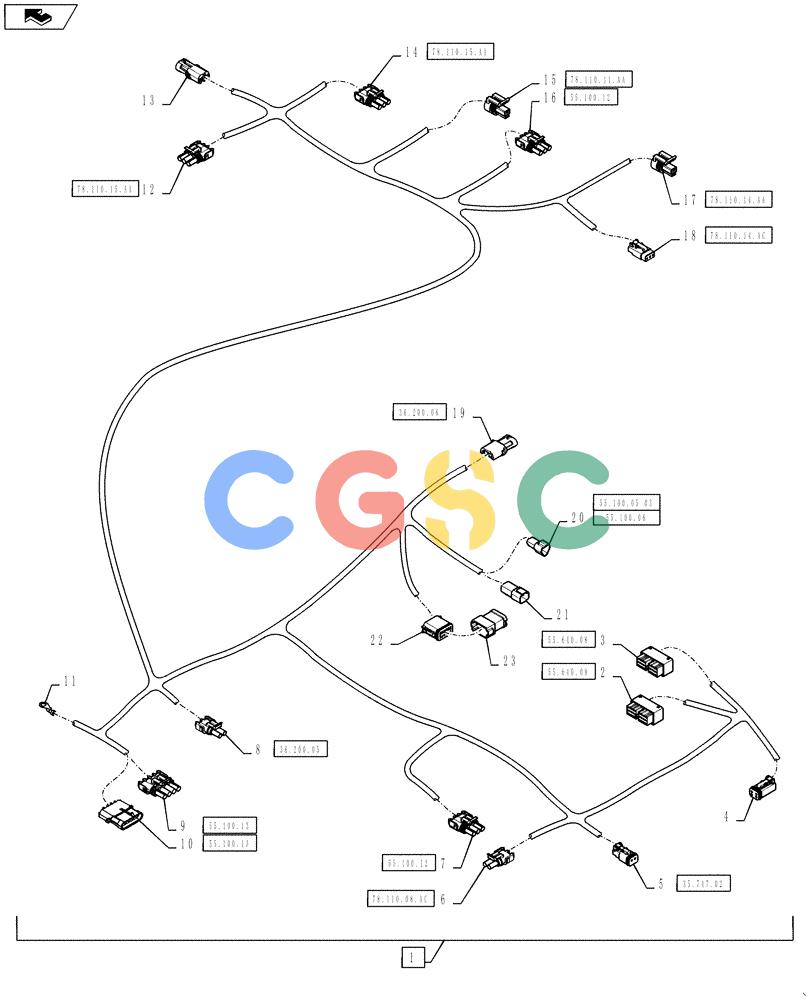

| 1. |
47362873
|
[1] |
HARNESS
|
BN
Wet Boom, Includes Ref 2 - 23
|
| 2. |
84138326
|
[1] |
ELEC CONNECTOR
|
SAS
Wet Boom Control Node, X-922F Superseded by part number: 87268798
|
| 2. |
87270686
|
[4] |
TERMINAL
|
BN
Wet Boom Control Node, X-922F
|
| 2. |
87270687
|
[2] |
ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2
|
BN
Wet Boom Control Node, X-922F
|
| 2. |
84142712
|
[24] |
PLUG
|
BN
Wet Boom Control Node, X-922F
|
| 3. |
87268797
|
[1] |
MULTIPOLE CONNECTOR,Female, 30 Pole
|
BN
Wet Boom Control Node, X-921F
|
| 4. |
87694153
|
[1] |
CONTACT HOUSING,Female, 4 Cavities
|
NH
Wet Can Buss Out, X-210F4
|
| 4. |
84074640
|
[1] |
LOCKING TAB,Wedge Lock
|
ZED
Wet Can Buss Out, X-210F4 Superseded by part number: 86622299
|
| 4. |
225365C1
|
[4] |
SOCKET
|
IH
Wet Can Buss Out, X-210F4
|
| 5. |
87695582
|
[1] |
ELEC CONNECTOR,Female, 2 Pole
|
RAC
Liquid Prop Valve, X-911F4
|
| 5. |
84074638
|
[1] |
LOCKING TAB,Locking Wedge, Green
|
ZED
Liquid Prop Valve, X-911F4
|
| 5. |
87695921
|
[2] |
CONTACT,Female, Nickel, 0.50 - 1.00mm
|
COE
Liquid Prop Valve, X-911F4
|
| 6. |
87692855
|
[1] |
CONTACT HOUSING,Male, 2 Cavities
|
BN
Sparge Valve, X-914F
|
| 6. |
225123C1
|
[2] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
Sparge Valve, X-914F
|
| 7. |
87644909
|
[1] |
WIRE CONNECTOR,Female, 3 Pins
|
BN
LH Mid Ball Valve, X-910F
|
| 9. |
245486C1
|
[1] |
ELEC CONNECTOR,4 Pin
|
IH
Remote Controller Input, X-517F4 Superseded by part number: 87692817
|
| 9. |
225120C1
|
[4] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
Remote Controller Input, X-517F4
|
| 10. |
245487C1
|
[1] |
ELEC CONNECTOR,Male, 4 Pin
|
IH
Remote Controller Output, X-520M4 Superseded by part number: 87692802
|
| 10. |
87692882
|
[4] |
ELEC. TERMINAL PIN
|
SAS
Remote Controller Output, X-520M4 Superseded by part number: 225119C1
|
| 11. |
84279551
|
[1] |
ELEC CONNECTOR,1.00 - 2.50mm
|
COE
Ground, G1-Wet
|
| 13. |
87692877
|
[1] |
MULTIPOLE CONNECTOR,Male, 2 Cavities
|
BN
Rear Liquid Level, X-908M
|
| 15. |
87692837
|
[1] |
WIRE CONNECTOR,Female, 3 Pole
|
RAC
Sprage PSI Sensor, X-916F Superseded by part number: 84078681
|
| 15. |
87690510
|
[3] |
ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2
|
NH
Sprage PSI Sensor, X-916F Superseded by part number: 84078682
|
| 18. |
87696551
|
[1] |
CONTACT HOUSING,Female, 3 Pole
|
BN
Flowmeter. X-919F
|
| 18. |
87705586
|
[1] |
WEDGE
|
BN
Flowmeter. X-919F
|
| 18. |
87696954
|
[1] |
TERMINAL,Female, Nickel, 0.35 - 1.50mm
|
CUR
Flowmeter. X-919F
|
| 20. |
87695548
|
[1] |
TERMINAL CONNECTOR
|
BRR
Product Harness Interface, X-550M
|
| 20. |
87695625
|
[1] |
WIRE CONNECTOR,Locking, Green
|
BN
Product Harness Interface, X-550M
|
| 20. |
86500035
|
[1] |
ELEC. TERMINAL PIN,Male, 0.75 - 2mm
|
GI
Product Harness Interface, X-550M Superseded by part number: 87695607
|
| 20. |
381417A1
|
[2] |
TERMINAL,Male, Nickel, 0.50 - 1.00mm
|
CAS
Product Harness Interface, X-550M Superseded by part number: 87695623
|
| 21. |
87694102
|
[1] |
ELEC CONNECTOR
|
BN
Wet Can Buss In, X-210M4
|
| 21. |
87694145
|
[1] |
ELEC CONNECTOR
|
NH
Wet Can Buss In, X-210M4
|
| 21. |
225366C1
|
[4] |
ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm
|
IH
Wet Can Buss In, X-210M4
|
| 22. |
87695592
|
[1] |
CONTACT HOUSING,Female, 12 Pole
|
BN
2 x 6 Way Splice, X-900F
|
| 22. |
87695651
|
[1] |
LOCKING TAB,Wedge Lock
|
BN
2 x 6 Way Splice, X-900F
|
| 22. |
86500036
|
[2] |
TERMINAL,Female, Nickel, 0.75 - 2mm
|
PA
2 x 6 Way Splice, X-900F
|
| 22. |
84068583
|
[1] |
PLUG,12 - 16 Ga, White
|
ZED
2 x 6 Way Splice, X-900F Superseded by part number: 87695652
|
| 23. |
87381540
|
[1] |
ELEC CONNECTOR
|
BN
2 x 6 Way Splice Pack, SP-900M
|
