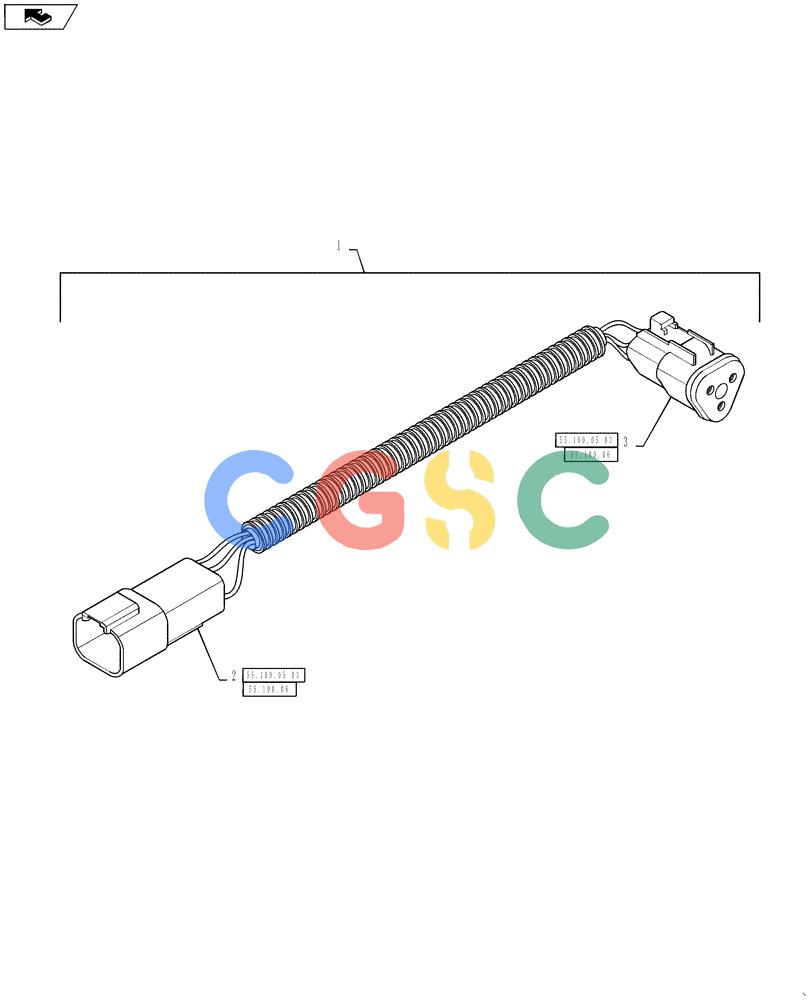

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (55.100.15) - CAN BUSS ADAPTOR HARNESS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
884 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87267294
|
[1] |
WIRE HARNESS
|
BN
Active Terminator Adaptor
|
| 2. |
87694154
|
[1] |
CONTACT HOUSING,Male, 4 Pole
|
NH
Can Buss 4 Wire, X-210M1
|
| 2. |
87694145
|
[1] |
ELEC CONNECTOR
|
NH
Can Buss 4 Wire, X-210M1
|
| 2. |
87695652
|
[1] |
PLUG,12 - 16 Ga, White
|
NH
Can Buss 4 Wire, X-210M1 Superseded by part number: 84068583
|
| 2. |
225366C1
|
[3] |
ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm
|
IH
Can Buss 4 Wire, X-210M1
|
| 3. |
87695580
|
[1] |
ELEC CONNECTOR,Female, 3 Pole
|
BN
Can Buss 3 Wire, X-210FT
|
| 3. |
87695646
|
[1] |
WEDGE
|
BN
Can Buss 3 Wire, X-210FT
|
| 3. |
381415A1
|
[1] |
CONNECTOR, ELEC
|
CAS
CONNECTOR Can Buss 3 Wire, X-210FT Superseded by part number: 84058194
|
| 3. |
225365C1
|
[3] |
SOCKET
|
IH
Can Buss 3 Wire, X-210FT
|
