凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (55.100.16) - FOAM MARKER EXTENSION HARNESS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
570 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |

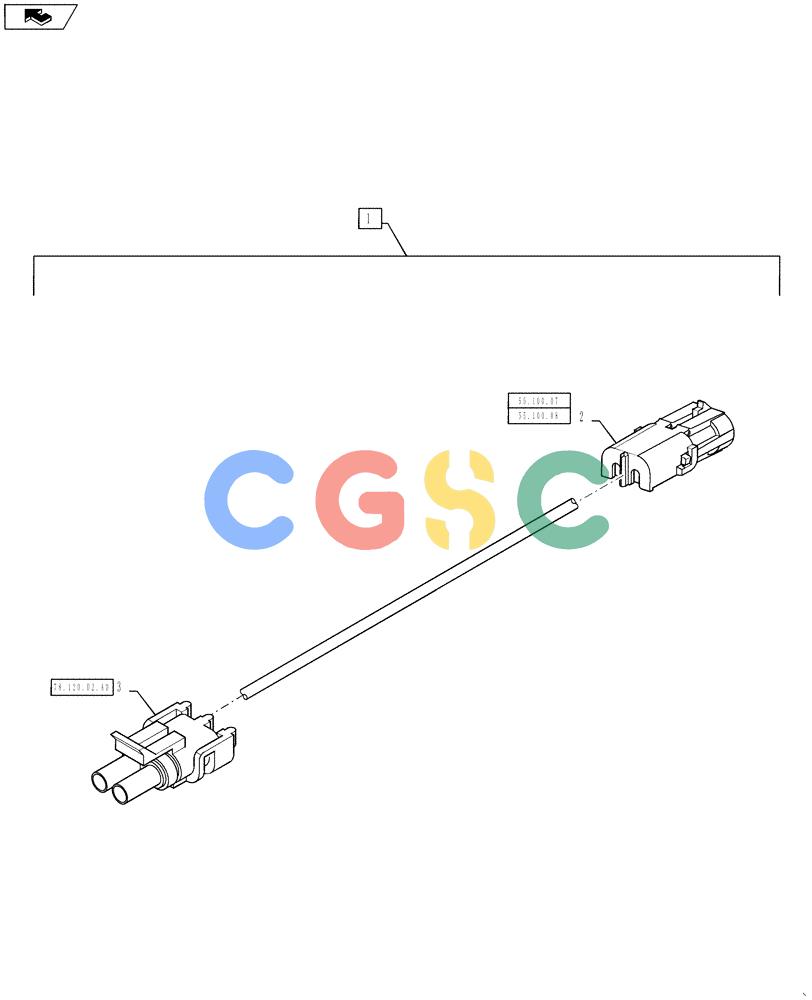

| 1. |
87267293
|
[1] |
WIRE HARNESS
|
BN
Foam Marker Air Solenoid Extension, Includes Ref 2 - 3
|
| 2. |
245483C1
|
[1] |
ELEC CONNECTOR,Male, 2 Pin
|
IH
Hydraulic Control Harness, J1 Superseded by part number: 87692877
|
| 2. |
225120C1
|
[2] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
Hydraulic Control Harness, J1
|
| 2. |
87680701
|
[2] |
SEAL
|
SAS
Hydraulic Control Harness, J1 Superseded by part number: 84286327
|
| 3. |
245482C1
|
[1] |
ELEC CONNECTOR,2 Pin
|
IH
Air Solenoid, P1 Superseded by part number: 87692855
|
| 3. |
225123C1
|
[2] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
Air Solenoid, P1
|
