神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (02-010) - COVER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
301 次

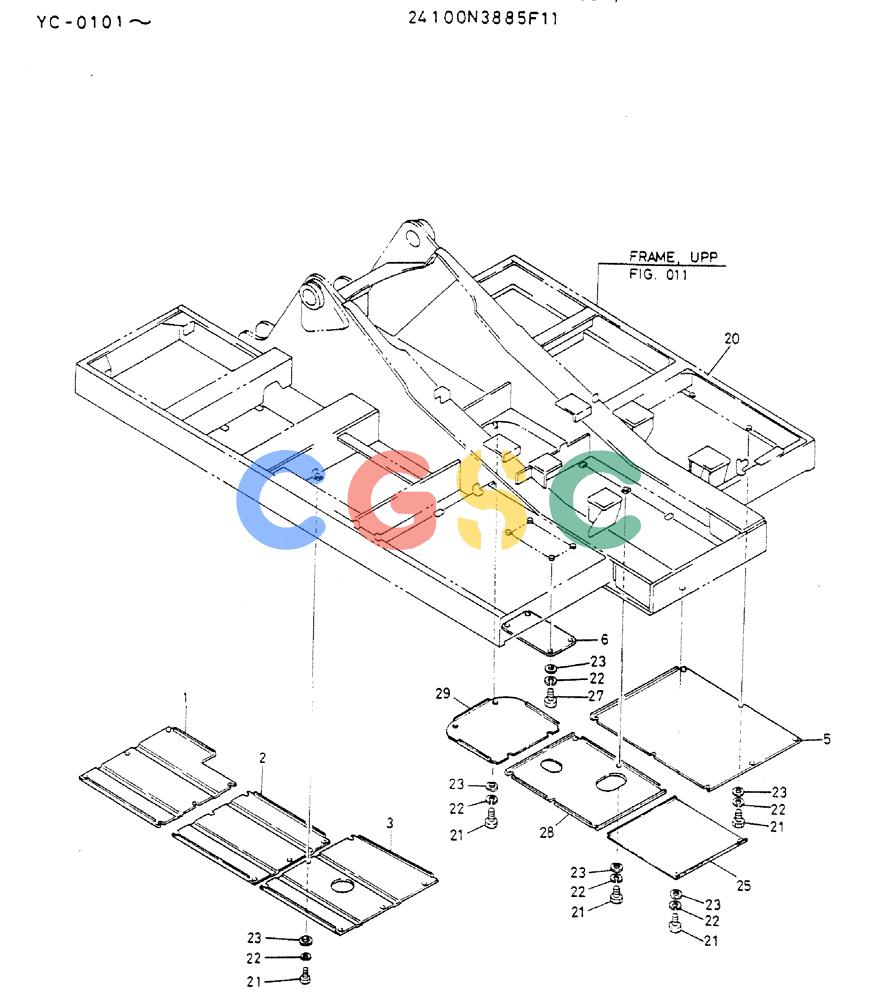

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3885F11 | [1] | COVER ASSY | COVER ASSY |
| 1. | 2414P4749D1 | [1] | COVER | KOB |
| 2. | 2414P4750D1 | [1] | COVER | KOB |
| 3. | 2414P4751D1 | [1] | COVER | COVER |
| 5. | 2414P4509 | [1] | COVER | KOB |
| 6. | 2414T3343 | [1] | COVER | KOB |
| 20. | 2422P861 | [1] | REWORK, FRAME | |
| 21. | ZS18C12035 | [31] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 22. | ZW26X12000 | [35] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 23. | 2418T10357 | [35] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 25. | 2414P5233 | [1] | COVER | COVER |
| 27. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 28. | 2414P6010 | [1] | COVER | COVER |
| 29. | 2414P6011 | [1] | COVER | COVER |
