| Pos. | Part No | Qty | Parts name | Comments |
|---|

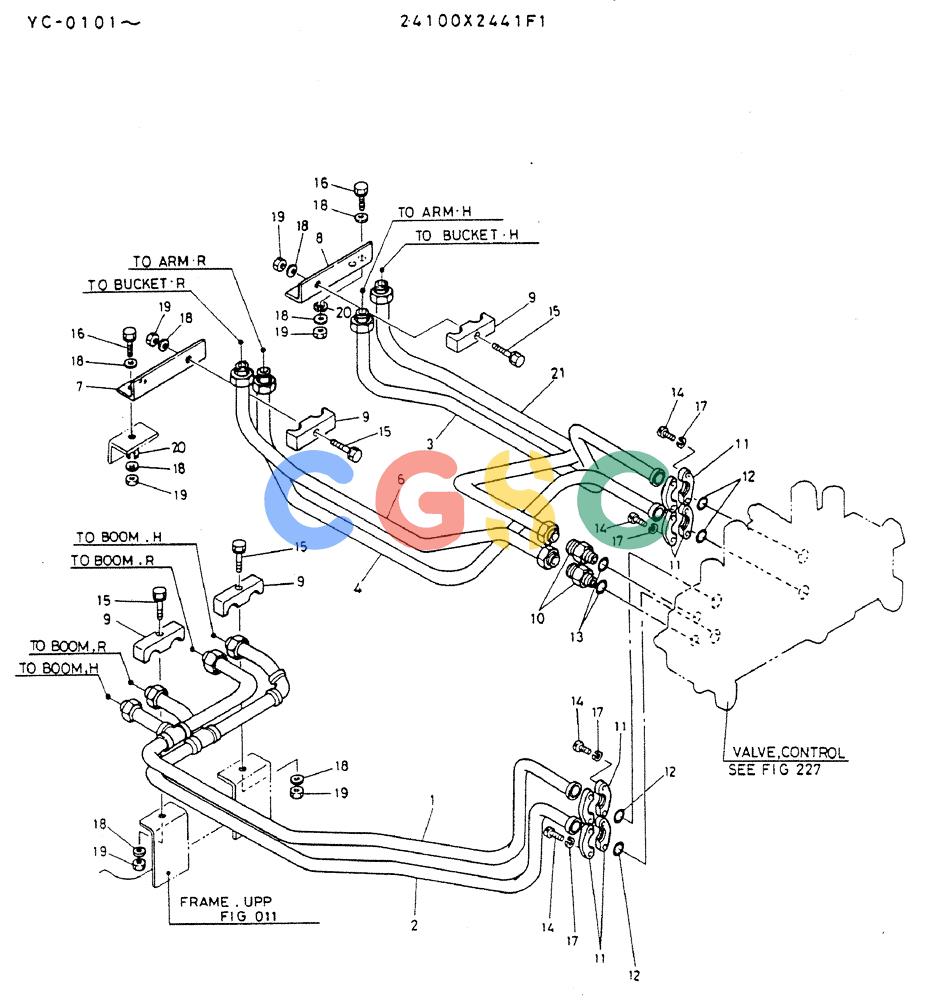

| . . | 24100X2441F1 | [1] | HYDR LINES, UPP | |
| 1. | 2418N2903 | [1] | TUBE | |
| 2. | 2418N2902 | [1] | TUBE | |
| 3. | 2418P17325 | [1] | TUBE | TUBE |
| 4. | 2418P17324 | [1] | TUBE | KOB |
| 6. | 2418P17322 | [1] | TUBE | KOB, Serial Range: YC-0101-YC-0133 |
| . . | 2418P17921 | [1] | TUBE, Start Serial: YC-0134 | |
| 7. | 2416T11556D1 | [1] | BRACKET | |
| 8. | 2416T11556D2 | [1] | BRACKET | |
| 9. | 2432T1212 | [4] | CLAMP | KOB |
| 10. | 2444T1342 | [2] | HYD CONNECTOR | KOB |
| 11. | ZE13X20001 | [8] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) Superseded by part number: ZE13X20000 |
| 12. | ZD12P03800 | [4] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 13. | ZD12P02900 | [2] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 14. | ZS23C14045 | [16] | SCREW,Hex Socket Head, M14 x 45mm | KOBM14x2.0x45mm Superseded by part number: ZS28C14045 |
| 15. | ZS18C12070 | [4] | SCREW,Hex, M12 x 70mm | KOBM12x1.75x70mm |
| 16. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 17. | ZW22K14000 | [16] | LOCK WASHER | KOBID 14.2 x OD 21.8 x Th 3.5mm |
| 18. | ZW16H12000 | [12] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 19. | ZN18C12010 | [8] | NUT | KOBM12x1.75mm |
| 20. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 21. | 2418P19314 | [1] | TUBE | KOB |
