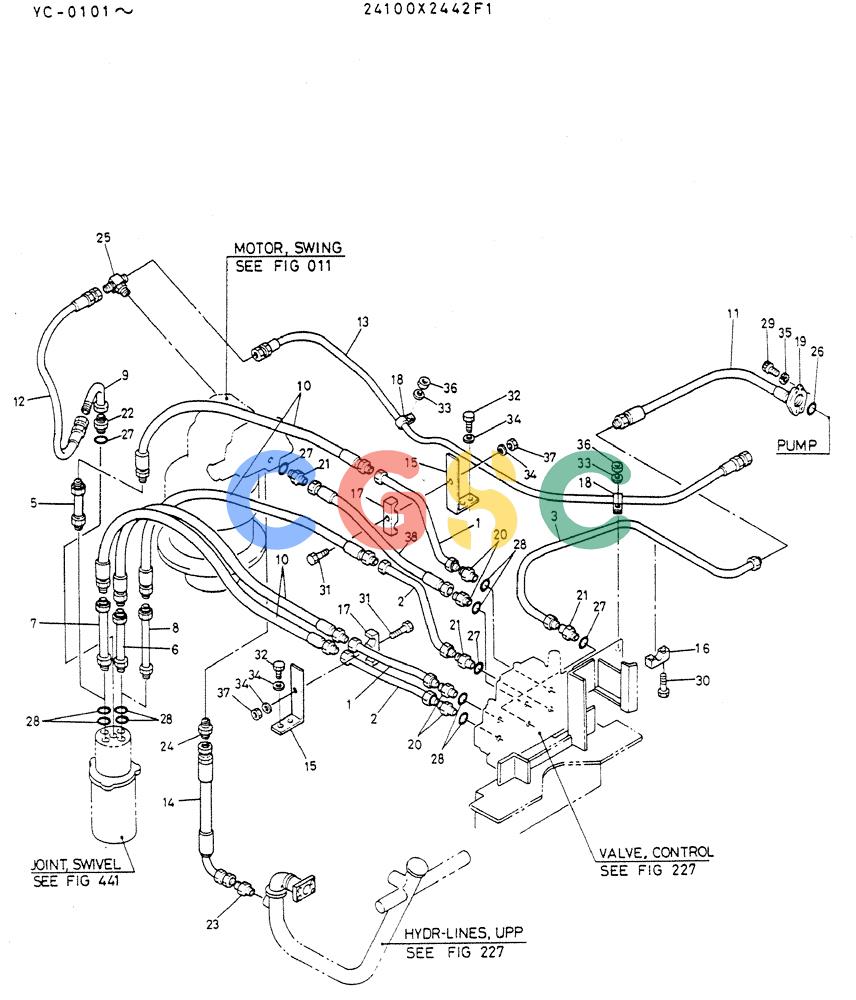

神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (04-002) - HYDR LINES, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
266 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X2442F1 | [1] | HYDR LINES, UPP | |
| 2. | 2418P17321 | [2] | TUBE | KOB |
| 3. | 2418P19331 | [1] | TUBE | TUBE |
| 5. | 2418P11399D1 | [1] | TUBE | TUBE |
| 6. | 2418P11399D2 | [1] | TUBE | KOB |
| 7. | 2418P11399D3 | [1] | TUBE | KOB |
| 8. | 2418P11399D4 | [1] | TUBE | KOB |
| 9. | 2418T15126 | [1] | TUBE | KOB |
| 10. | ZX58N12120 | [4] | HOSE | KOB |
| 11. | ZX58S12076 | [1] | FLEXIBLE HOSE | KOB |
| 12. | 2420R804D1 | [1] | HOSE | KOB |
| 13. | 2420R804D2 | [1] | HOSE | KOB |
| 14. | 2420R817D1 | [1] | HOSE | KOB |
| 15. | 2416T14726 | [2] | BRACKET | |
| 16. | R16P0035D9 | [1] | CLAMP | KOB |
| 17. | 2432T1196 | [2] | CLAMP | CLAMP |
| 18. | ZC45X38014 | [2] | CLIP | KOBCLAMP Single Line -- ID 38.1 x 70.05mm Long Superseded by part number: ZC46X38014 |
| 19. | ZE13X12000 | [2] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 20. | 2444T1368 | [4] | HYD CONNECTOR | KOBCLAMP-HALF Superseded by part number: 2444R690D19 |
| 21. | ZF23F28012 | [3] | HYD CONNECTOR | KOB |
| 22. | 2444Z2680 | [1] | HYD CONNECTOR | KOB |
| 23. | 2444T2586 | [1] | CONNECTOR | |
| 24. | 2444Z2761 | [1] | CONNECTOR | CONNECTOR |
| 25. | ZH52X08000 | [1] | TEE,30 Degree Fl, Male, PF 1/2" x 1/2" x 1/2", O-Ring | KOB(Incls. O-Ring 237-6008) |
| 26. | ZD12P02600 | [1] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 27. | ZD12P02400 | [4] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 28. | ZD12P02900 | [8] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 29. | 2420N458D10035 | [4] | CAPSCREW,Hex Socket Head, M10 x 35mm | KOBSCREW CAPSCREW Superseded by part number: ZS28C10035 |
| 30. | ZS18C10060 | [2] | SCREW,Hex, M10 x 60mm | KOBM10x1.50x60mm |
| 31. | ZS18C12070 | [2] | SCREW,Hex, M12 x 70mm | KOBM12x1.75x70mm |
| 32. | ZS18C12035 | [4] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 33. | 2418T5373C2 | [2] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 34. | ZW16H12000 | [6] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 35. | ZW26K10000 | [4] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| 36. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 37. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 38. | 2444Z2459D1 | [1] | HOSE | HOSE |
| 39. | 2418P19316 | [1] | TUBE | |
