神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (06-007) - BEARING ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
866 次

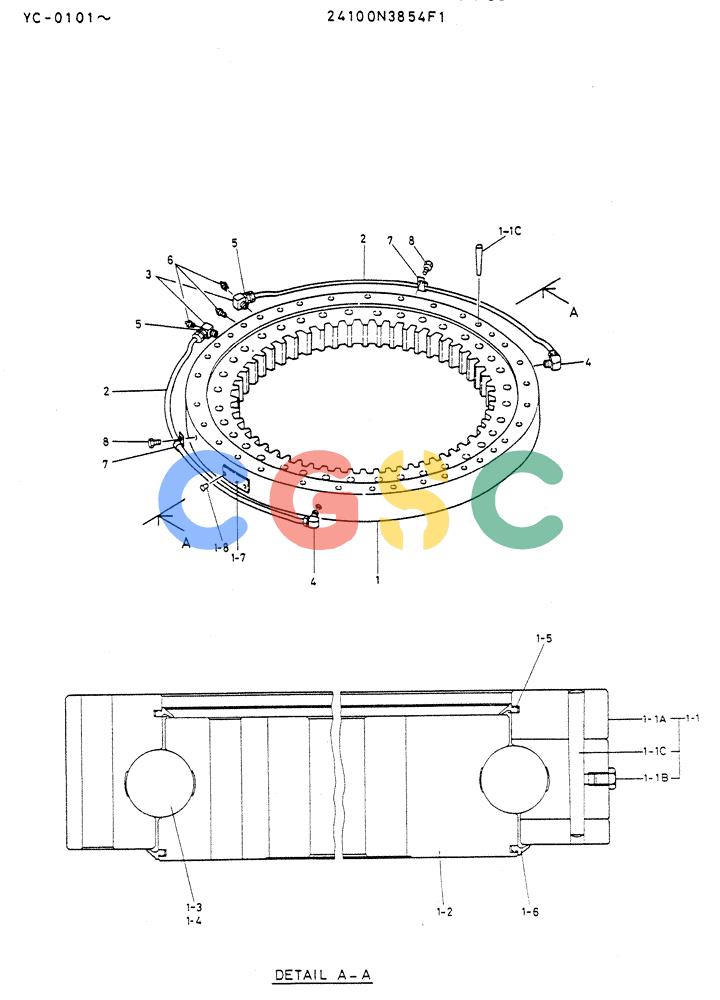

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N3854F1 | [1] | SLEWING RING | KOBBEARING ASSY |
| 1. | 24100N3814F1 | [1] | SLEWING RING | KOBBEARING ASSY |
| 1-1. | 2425N317F1 | [1] | RACE/ OUTER | |
| 1-1A. | 2425N317 | [1] | RACE/ OUTER | |
| 1-1B. | 2420T5530 | [1] | PLUG | |
| 1-1C. | 2419T1964D8 | [1] | PIN, TAPER OD 10 x 110mm Long | PIN, TAPER OD 10 x 110mm Long |
| 1-2. | 2401N608 | [1] | RACE/ INNER | |
| 1-3. | 2425T277 | [69] | BALL | KOB |
| 1-4. | 2425T309 | [69] | RETAINER | |
| 1-5. | 2445P114D18 | [1] | SEAL | KOBSEAL Superseded by part number: YN40F01024D4 |
| 1-6. | 2445P114D19 | [1] | SEAL | KOBSEAL Superseded by part number: YN40F01024D4 |
| 1-7. | 2432T1265 | [1] | LABEL | KOB Superseded by part number: YN22T00191P1 |
| 1-8. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 2. | 2418P14501 | [2] | TUBE | TUBE |
| 3. | 2410T306 | [2] | KNUCKLE JOINT | KOB |
| 4. | ZF33E08004 | [2] | ELBOW | KOBCONNECTOR |
| 5. | ZF23E08004 | [2] | HYD CONNECTOR | KOB |
| 6. | ZG91S02000 | [3] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 7. | ZC45X08007 | [2] | CLAMP | KOB Superseded by part number: ZC46X08007 |
| 8. | ZS13C06010 | [2] | SCREW | KOBM06x1.0x10mm Superseded by part number: ZS18C06010 |
