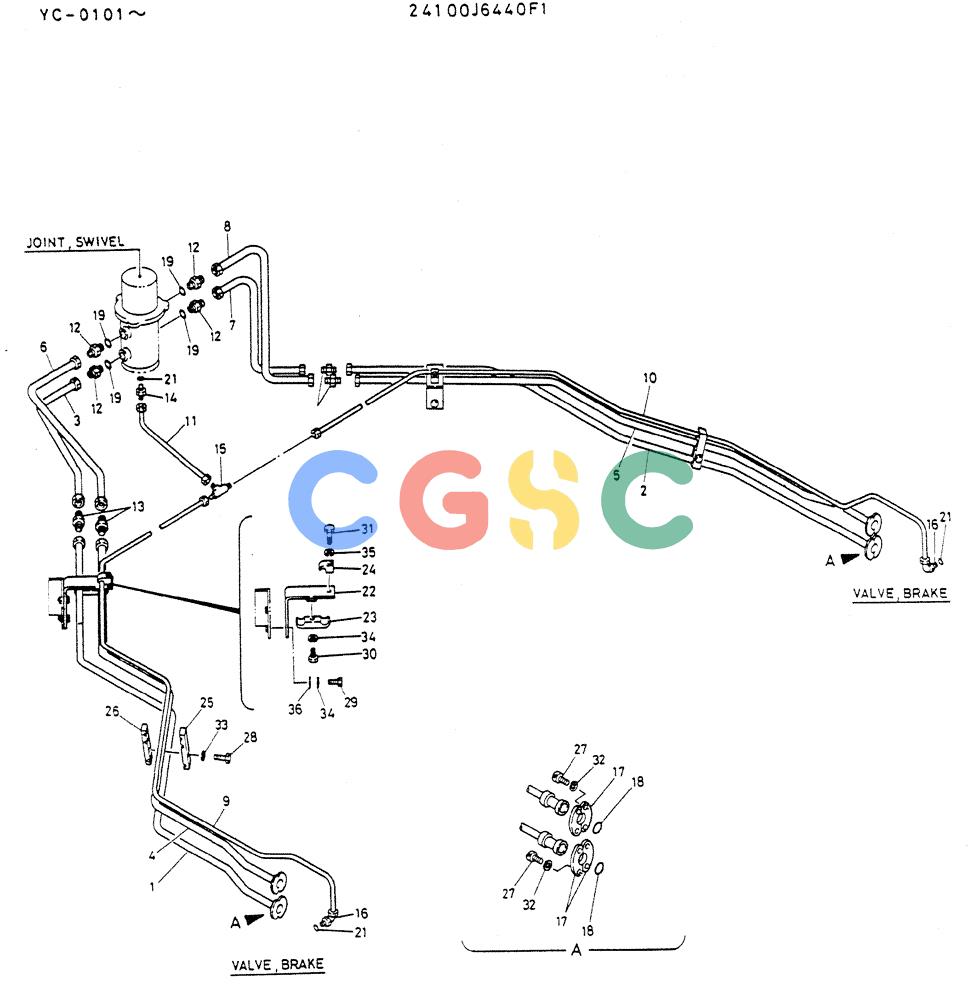

神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (06-008) - HYDR LINES, LOW Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
719 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6440F1 | [1] | HYDR LINES, LOW | |
| 1. | 2418N4523D2 | [1] | TUBE | TUBE |
| 2. | 2418N4523D1 | [1] | TUBE | |
| 3. | 2418P12305 | [1] | TUBE | TUBE |
| 4. | 2418N4524D2 | [1] | TUBE | TUBE |
| 5. | 2418N4524D1 | [1] | TUBE | TUBE |
| 6. | 2418P12306 | [1] | TUBE | |
| 7. | 2418P12307 | [1] | TUBE | KOB |
| 8. | 2418P12308 | [1] | TUBE | TUBE |
| 9. | 2418N4525D2 | [1] | TUBE | KOB |
| 10. | 2418N4525D1 | [1] | TUBE | KOB |
| 11. | 2418P12309 | [1] | TUBE | KOB |
| 12. | 2444T1342 | [4] | HYD CONNECTOR | KOB |
| 13. | ZF23B35000 | [4] | HYD CONNECTOR | KOB |
| 14. | 2444T2575 | [1] | HYD CONNECTOR | KOB |
| 15. | ZF53B18000 | [1] | TEE | KOB |
| 16. | ZF33F18008 | [2] | ELBOW | KOB |
| 17. | ZE13X16000 | [8] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 18. | ZD12P03400 | [4] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 19. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 20. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 21. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 22. | 2416P10166 | [2] | BRACKET | BRACKET |
| 23. | ZC37X35114 | [2] | CLAMP | KOB |
| 24. | ZC27X22012 | [2] | COLLAR | HIT |
| 25. | 2432T2390 | [2] | CLAMP | |
| 26. | 2432T2389 | [2] | CLAMP | |
| 27. | ZS23C12040 | [16] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 28. | ZS23C10040 | [2] | SCREW,Hex Socket Head, M10 x 40mm | KOBM10x1.50x40mm |
| 29. | ZS18C12035 | [4] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 30. | ZS18C12045 | [2] | SCREW,Hex, M12 x 45mm | KOBM12x1.75x45mm |
| 31. | ZS18C10040 | [2] | SCREW,Hex, M10 x 40mm | KOBM10x1.50x40mm |
| 32. | ZW26K12000 | [16] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| 33. | ZW26K10000 | [2] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| 34. | ZW26X12000 | [6] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 35. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 36. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
