神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-030) - CHECK VALVE, ANTI Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
297 次

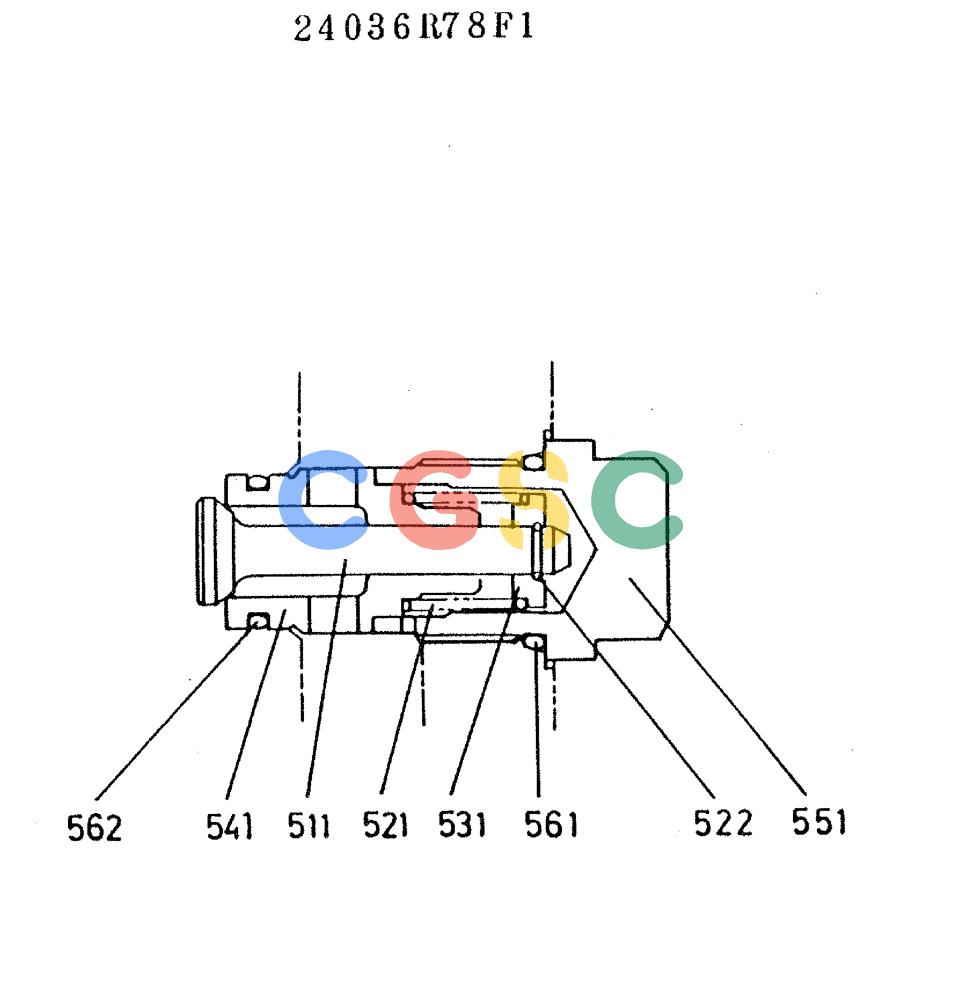

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24036R78F1 | [1] | VALVE | KOBCHECK, ANTI, CONSISTS OF THE FOLLOWING PARTS |
| 511. | 24036R78S511 | [1] | POPPET | |
| 521. | 24036R78S521 | [1] | SPRING | |
| 522. | 24036R78S522 | [1] | LOCKING RING | KOB |
| 531. | 24036R78S531 | [1] | GUIDE, SPRING | |
| 541. | 24036R78S541 | [1] | SEAT | |
| 551. | 24036R78S551 | [1] | PLUG | |
| 561. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 562. | ZD12P01500 | [1] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
