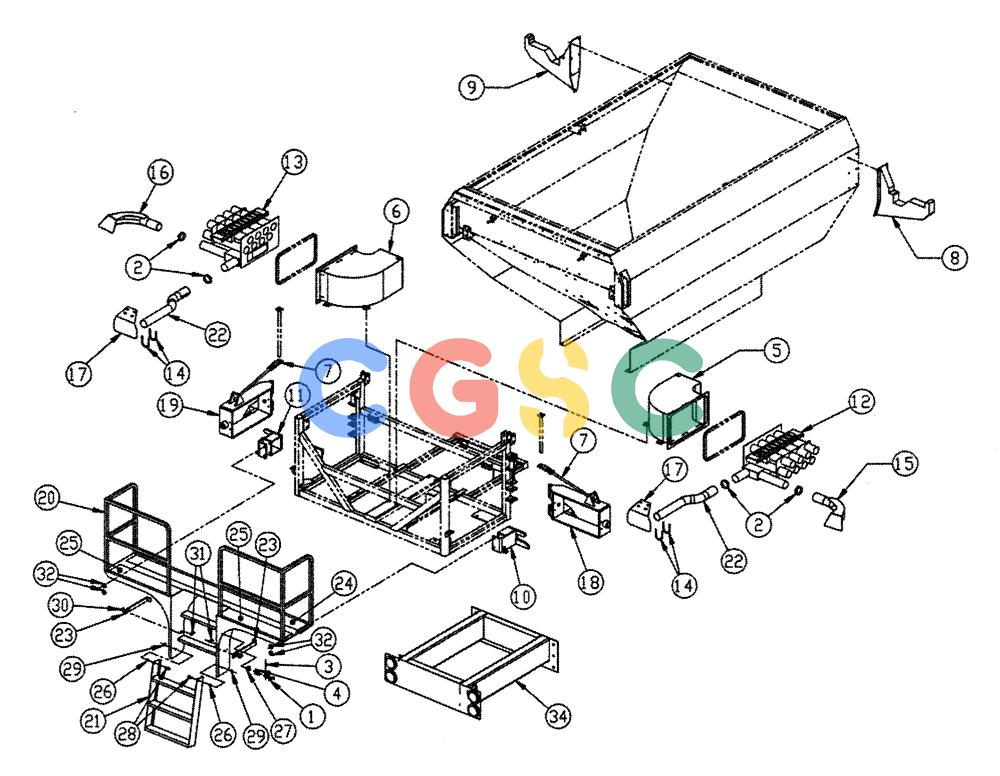

凯斯零件查询(FLEX-AIR) - APPLICATOR (1995-1997) (2/95-2/97) (04-003) - REAR BOOM GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
165 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN5412
|
[1] |
Pin - Locking MW
|
|
| 2. |
BN15497
|
[4] |
CLAMP,76.2mm - 82.55mm
|
BN
3 1/4", SS, T-Bolt
|
| 3. |
BN31444
|
[1] |
PIN, ROLL
|
BN
1/4 x 1 1/2
|
| 4. |
BN31937
|
[1] |
SPRING
|
BN
Compression, .905 x .765 2
|
| 5. |
BN35496
|
[1] |
Airway, RH, Rear
|
|
| 6. |
BN35497
|
[1] |
Airway, LH, Rear
|
|
| 7. |
BN35641
|
[2] |
Cradle - Hinge, Rear
|
|
| 8. |
BN35652
|
[1] |
Cradle Rear, RH
|
|
| 9. |
BN35653
|
[1] |
Rear, LH
|
|
| 10. |
BN35877
|
[1] |
Support, Hinge, Rear, RH
|
|
| 11. |
BN35878
|
[1] |
Support, Hinge, Rear, LH
|
|
| 12. |
BN35913
|
[1] |
Venturi - Rear, RH
|
|
| 13. |
BN35914
|
[1] |
Venturi - Rear, LH
|
|
| 14. |
BN68492
|
[4] |
U-BOLT
|
BN
3/8 - 16 UNC X 3, SS
|
| 15. |
344018A1
|
[1] |
DEFLECTOR
|
TYR
RH
|
| 16. |
BN65386
|
[1] |
DEFLECTOR
|
BN
LH Superseded by part number: 344015A1
|
| 17. |
344019A1
|
[2] |
DEFLECTOR
|
BN
Rear
|
| 18. |
BN65722
|
[1] |
Hinge, Boom, Rear, RH
|
|
| 19. |
BN65723
|
[1] |
Hinge, Boom, Rear, LH
|
|
| 20. |
BN67353
|
[1] |
Platform, Flex - Air
|
|
| 21. |
BN67363
|
[1] |
Ladder, Platform
|
|
| 22. |
BN67409
|
[2] |
Tube, Rear Mount
|
|
| 23. |
BN67472
|
[2] |
Platform
|
|
| 24. |
BN67473
|
[1] |
Safety - Walk - Flextread, 6 X 83.5
|
|
| 25. |
BN67474
|
[2] |
Safety - Walk - Flextread, 6 X 30.5
|
|
| 26. |
BN67511
|
[2] |
9/16 ID X 3/4, Nylon
|
|
| 27. |
BN50157
|
[1] |
WASHER
|
BN
3/4, G5 Superseded by part number: 86511191
|
| 28. |
BN50284
|
[2] |
BOLT
|
BN
1/2-13 X 1.5, HH, PL
|
| 29. |
86992215
|
[2] |
LOCK NUT,1/2"-13, GC
|
GFD
|
| 30. |
BN50061
|
[4] |
LOCK NUT
|
BN
3/8"-16, UNC, Whiz Superseded by part number: 231-4146
|
| 31. |
BN50367
|
[4] |
BOLT
|
BN
3/8"-16 x 1", G5 Superseded by part number: 413-616
|
| 32. |
BN50155
|
[4] |
WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk
|
BN
5/8", G5
|
| 33. |
BN68086
|
[4] |
CAP
|
BN
Round, Rubber, .25 ID
|
| 34. |
BN8171104
|
[1] |
Frame Extension 48"
|
|
