神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-051) - VALVE ASSY, PILOT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
273 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

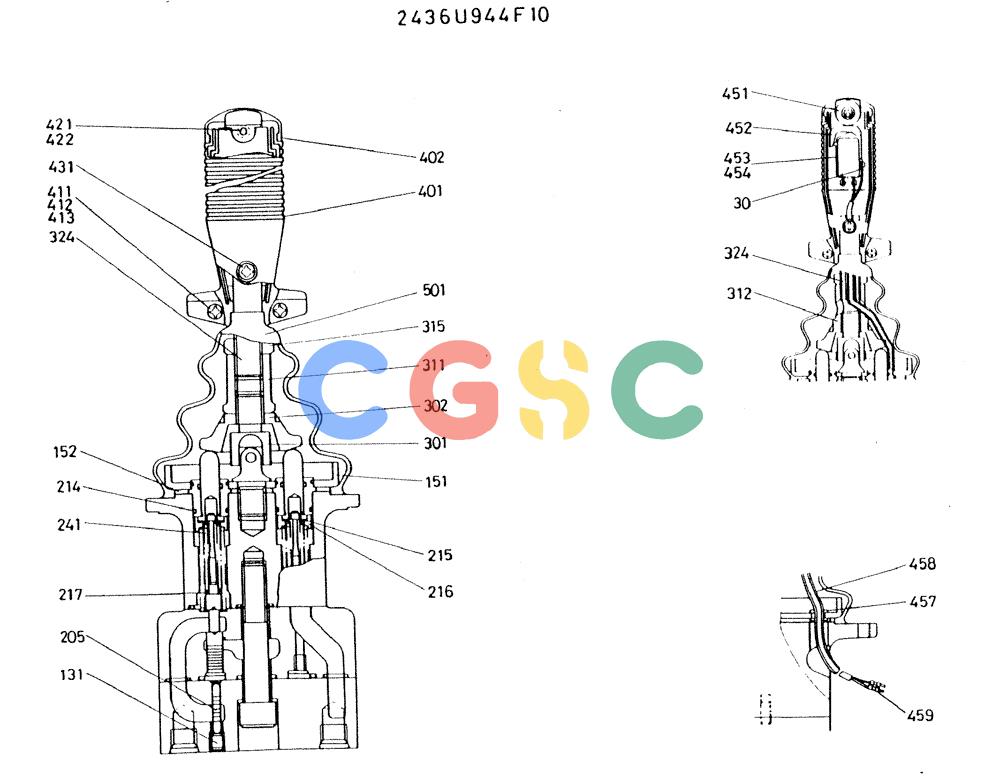

| . . | 2436U944F10 | [1] | PILOT VALVE | KOBASSY, CONSISTS OF THE FOLLOWING PARTS |
| 9. | 2436U944S9 | [1] | SPRING | KOB |
| 30. | 2436U944S30 | [1] | SWITCH | KOB |
| 131. | 2436U741S462 | [4] | PLUG | KOB |
| 151. | 2436U944S151 | [1] | PLATE | KOB |
| 152. | 2436U944S152 | [1] | SEAT | KOB |
| 205. | 2436U944S205 | [4] | PIN | KOB |
| 214. | ZD12P01400 | [4] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 215. | 2436U944S215 | [8] | WASHER | KOB |
| 216. | 2436U944S216 | [4] | SPRING SEAT | KOB |
| 217. | 2436U944S217 | [4] | WASHER | KOB |
| 241. | 2436U944S241 | [4] | SPRING | KOB |
| 301. | 2436U944S301 | [1] | KNUCKLE JOINT | KOB |
| 302. | 2436U944S302 | [1] | PLATE | KOB |
| 312. | 2436U944S312 | [1] | NUT | KOB Superseded by part number: PH30V00002S312 |
| 315. | 2436U944S315 | [1] | LOCK NUT | KOB |
| 324. | 2436U944S324 | [1] | BAR | KOB |
| 401. | 2436U944S401 | [2] | HANDLE | KOB |
| 402. | 2436U944S402 | [1] | CAP | KOB |
| 411. | 2436U944S411 | [2] | SCREW | KOB |
| 412. | ZN12C04002 | [3] | NUT | NUT |
| 413. | ZW11P04000 | [2] | WASHER | KOBID 04 x OD 09 x Th 0.8mm |
| 421. | 2436U944S421 | [1] | SCREW,Phillips Drive, Pan HD, M4 x 30mm | KOB Superseded by part number: ZS31C04030 |
| 431. | 2436U944S431 | [2] | SCREW,Phillips Drive, Pan HD, M5 x 8mm | KOB Superseded by part number: ZS31C05008 |
| 451. | 2436U944S451 | [1] | ROLLER THRUST PLATE | KOB |
| 452. | 2436U944S452 | [1] | LEVER | KOB |
| 453. | 2436U944S453 | [1] | U-BRACKET | KOBSWITCH, WASHER |
| 454. | 2436U944S454 | [1] | U-BRACKET | KOBSWITCH, WASHER |
| 457. | 2436U944S457 | [1] | BUSHING | KOB |
| 458. | 2436U944S458 | [1] | TUBE | KOB |
| 459. | 2436U944S459 | [2] | TERMINAL | KOBCONNECTOR |
| 501. | 2436U944S501 | [1] | BOOT | KOB |
